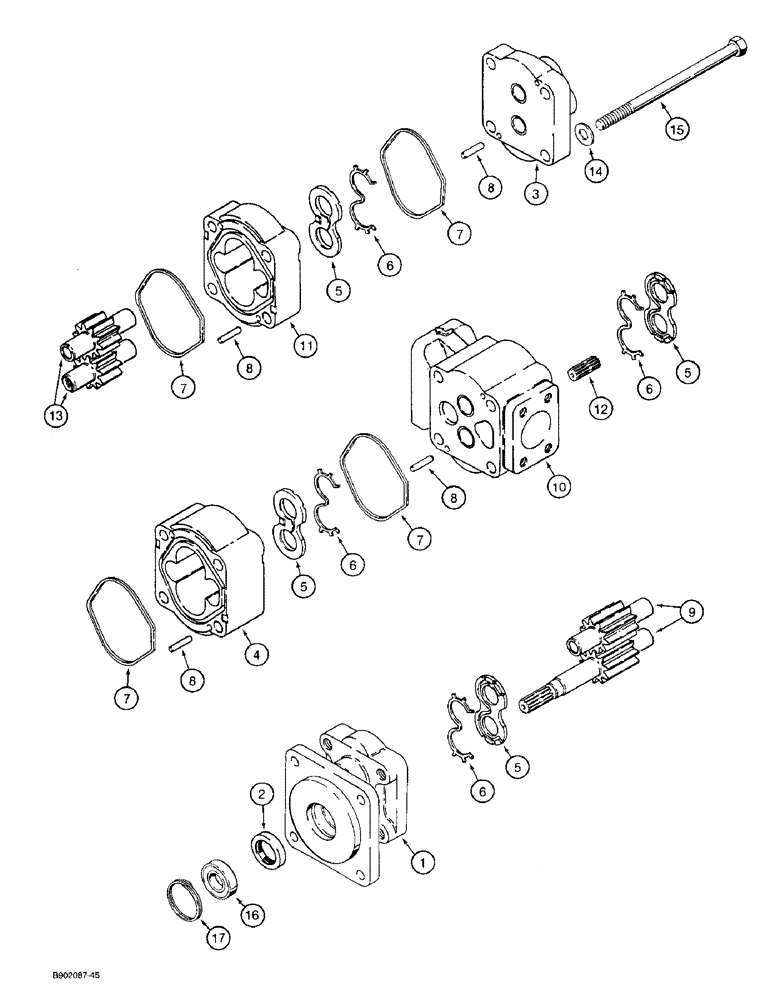

Запчасти Case 580SK (8-062) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D149283

PUMP, HYDRAULIC

PUMP ASSEMBLY hydraulic equipment, Includes: Ref. 1 through 17

1шт.

D149283R

REMAN-HYD PUMP

580SK

1шт.

D149283C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER shaft end, includes a bushing which is not serviced separately

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

shaft

1шт.

3

NSS

NOT SOLD SEPARAT

COVER closed end, includes a bushing which is not serviced separately

1шт.

4

N14115

HOUSING

gear, shaft end

1шт.

5

N13582

THRUST PLATE

PLATE, THRUST

4шт.

6

N13583

SEAL

RETAINER wear plate

4шт.

7

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

housing, large

4шт.

8

W16323

DOWEL

PIN dowel, gear housing

8шт.

9

NSS

NOT SOLD SEPARAT

SET gear, shaft end

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING center, with ports, includes bushings which are not serviced separately

1шт.

11

D147209

HOUSING

gear, closed end, pump

1шт.

12

N13586

SHAFT

connecting

1шт.

13

NSS

NOT SOLD SEPARAT

SET gear, closed end

1шт.

14

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

flat, 5/8 inch, hardened

4шт.

15

326-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

4шт.

16

3139296R1

BALL BEARING

ball, sealed

1шт.

17

71466

SNAP RING,#206, 2.190", Int, Spiral

RING retaining, spring lock

1шт.
