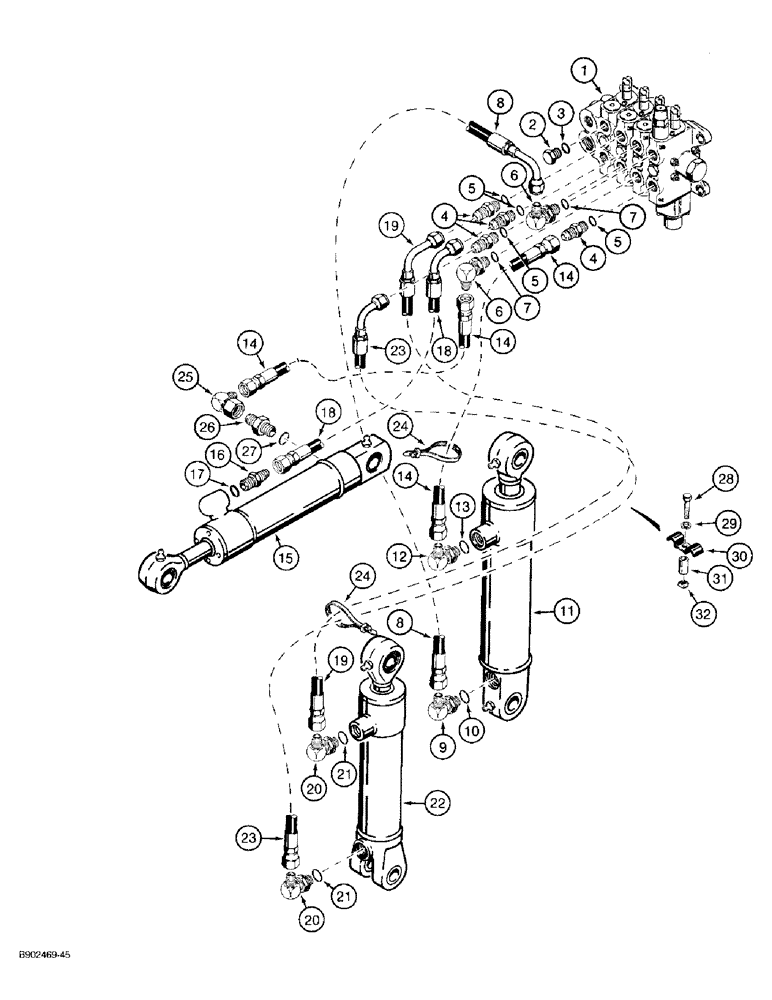

Запчасти Case 580SK (8-060) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D141297

VALVE

ASSEMBLY three-point hitch control, parts list Figure 8-104, see Figure 9-072 for valve mounting

1шт.

2

214389

PLUG,3/4" - 16 ORB

Upper and lower implement section, if used, Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, male, upper and lower port tilt section, pitch section upper port, and lift section lower port, Incl. Ref 5

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, adjustable, upper port lift section and lower port pitch section, Includes: Ref. 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

D141271

HOSE ASSY.

HOSE, 1350 mm long, upper port lift section to closed end of lift cylinder

1шт.

9

D135096

ELBOW

90 degree, restriction, closed end of lift cylinder, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Figure 8-142

1шт.

12

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, rod end of lift cylinder, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

D141267

HOSE ASSY.

HOSE, 550 mm long, lower port lift section to rod end of lift cylinder and pitch section lower port to closed end of pitch cylinder

2шт.

15

1976884C1

JACK BODY

CYLINDER ASSEMBLY pitch, parts list Figure 8-146

1шт.

138235A1R

REMAN-HYD CYLINDER

580SK, Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, rod end of pitch cylinder, Incl. Ref 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

D141268

HOSE

900 mm long, upper port pitch section to rod end of pitch cylinder

1шт.

19

D141270

HOSE

1250 mm long, upper port tilt section to rod end of tilt cylinder

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, closed end and rod end of tilt cylinder, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

G101188

JACK BODY

CYLINDER ASSEMBLY tilt, parts list Figure 8-144

1шт.

23

D141269

HOSE ASSY.

HOSE, 1450 mm long, tilt section lower port to closed end of tilt cylinder

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

25

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree, 3/4-16 inch flare x swivel flare, closed end of pitch cylinder

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTERstraight, 3/4-16 inch flare x O-ring boss, closed end of pitch cylinder, Incl. Ref 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

D143846

CLAMP

- Hose

1шт.

31

D149139

SPACER

hose clamp

1шт.

32

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.
