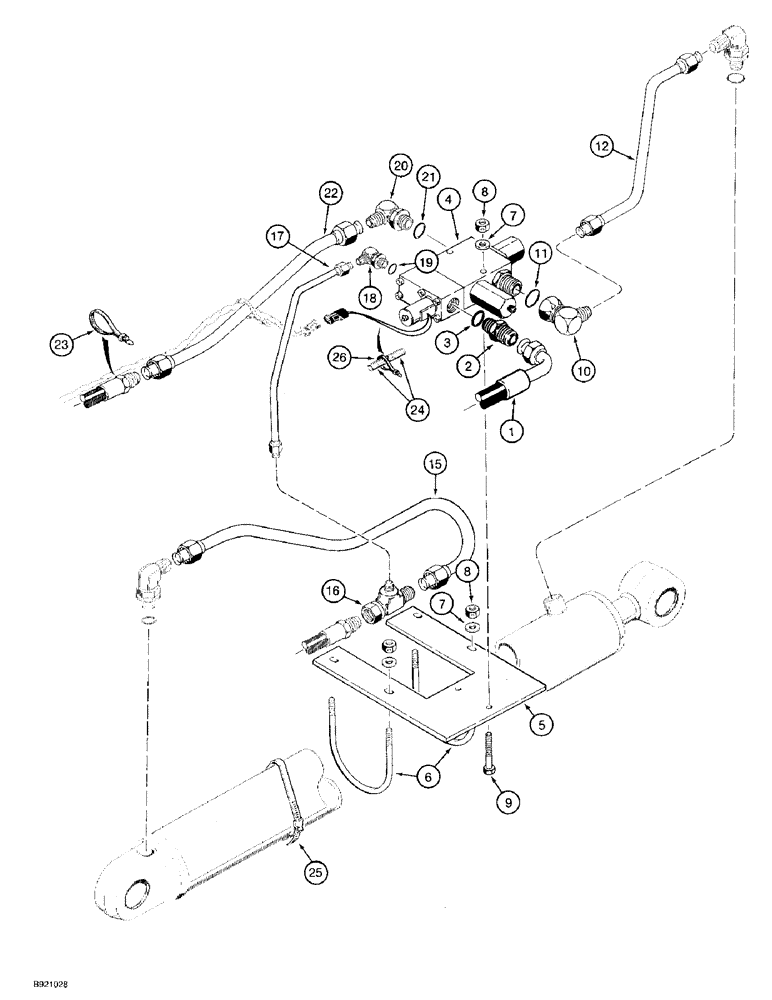

Запчасти Case 580SK (8-058) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, AT BOOM CYLINDER (08) - HYDRAULICS

D104408

KIT

backhoe boom lock, continued from previous page, Includes: Ref. 1 through 26

1шт.

1

D149555

HOSE ASSY.

HOSE, 1750 mm long, backhoe valve return to boom lock valve

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D150443

VALVE

ASSEMBLY boom lock, parts list Figure 8-102, solenoid wire connector attaches to Ref. 8 boom lock harness on Figure 8-056

1шт.

5

D150054

PLATE

- Valve mounting

1шт.

6

D150053

BOLT

U-BOLT, 3/8 inch

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8 inch

6шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

6шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

10

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 deg, 1-1/16-12 flare x 1-5/16-12 inch swivel flare, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

D149524

TUBE ASSY.

TUBE, lock valve to right-hand boom cylinder rod end, see Figure 8-030, Ref. 27 for elbow

1шт.

15

D149533

TUBE ASSY.

TUBE, boom cylinder closed end

1шт.

16

218-5411

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 7/16"-20 Br

7/16-20 fl branch x 1-1/16-12 inch fl x adj str thread

1шт.

17

D149528

TUBE ASSY.

TUBE, cylinder closed end to pilot port on boom lock valve

1шт.

18

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring, Includes: Ref. 19

1шт.

20

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

22

D150136

TUBE

attaches to hose at lower boom port of backhoe valve, see Figure 8-030, Ref. 14 for hose

1шт.

23

D147773

CLAMP

STRAP tie, double hose

1шт.

24

D121385

PLASTIC-RUBBER TUBE

GUARD harness protection

1шт.

25

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

CLAMP, tube to cylinder eye

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
