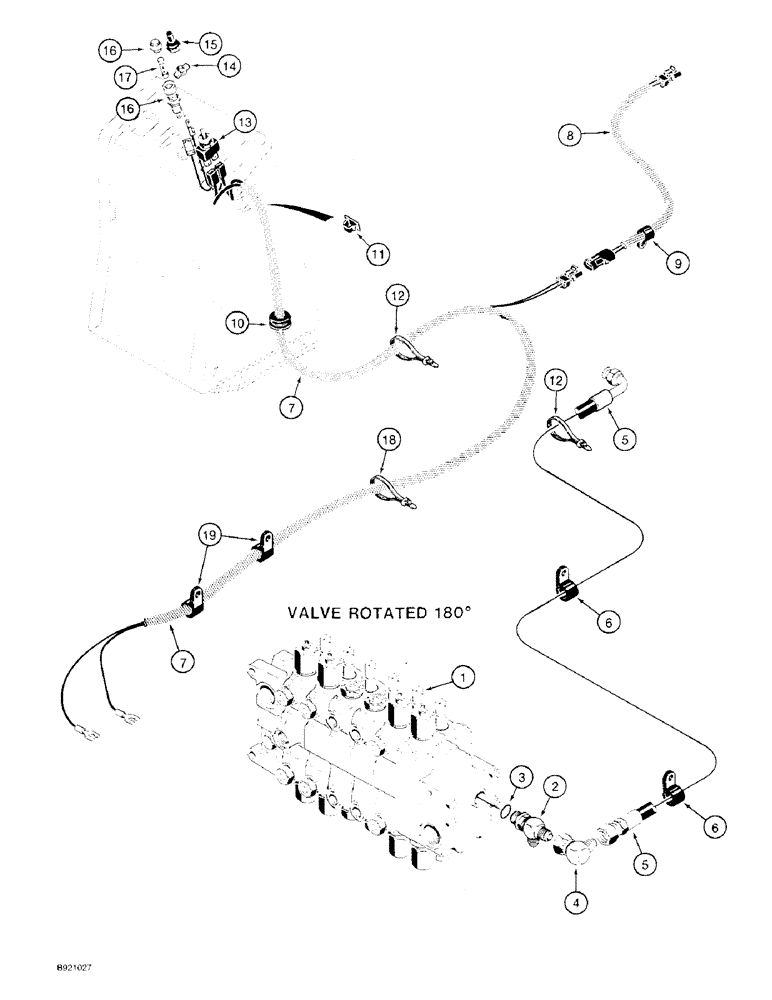

Запчасти Case 580SK (8-056) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, AT CONTROL TOWER AND BACKHOE VALVE (08) - HYDRAULICS

D104408

KIT

backhoe boom lock, also includes parts on Figure 8-058, L111356 decal on Figure 9-174 and 131-203 nut, Ref. 37, on Figure 8-030 plus an instruction sheet, Includes: Ref. 1 through 19

1шт.

Not included in D104408 kit, may purchase separately.

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components, see Figure 8-080 or 8-082, for valve mounting see Figure 8-024

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, 7/8-14 inch flare x swivel flare

1шт.

5

D149555

HOSE ASSY.

HOSE, 1750 mm long, backhoe valve return to boom lock valve

1шт.

6

T50103

CLAMP

P-type, return hose

2шт.

7

D150390

HARNESS

boom lock, at control tower to relay under side console

1шт.

8

D149552

HARNESS

boom lock, boom lock valve solenoid to control tower boom lock harness

1шт.

9

49836

CLAMP

P-type, harness

2шт.

Not included in D104408 kit, may purchase separately.

1шт.

10

D139845

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

harness

1шт.

Not included in D104408 kit, may purchase separately.

1шт.

11

L100659

CLIP

harness

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

9шт.

13

D67251

SWITCH

toggle, boom lock

1шт.

14

L105735

PLATE ASSY.

PLATE trim

1шт.

15

L101998

BOOT

toggle switch

1шт.

16

A22874

HOLDER

RETAINER fuse, at backhoe control tower

1шт.

17

223-26

FUSE,5 Amp, Type 3AG

5 ampere, boom lock

1шт.

18

D147773

CLAMP

STRAP tie, nylon

3шт.

19

49836

CLAMP

P-type, harness

2шт.

Not included in D104408 kit, may purchase separately.

1шт.
