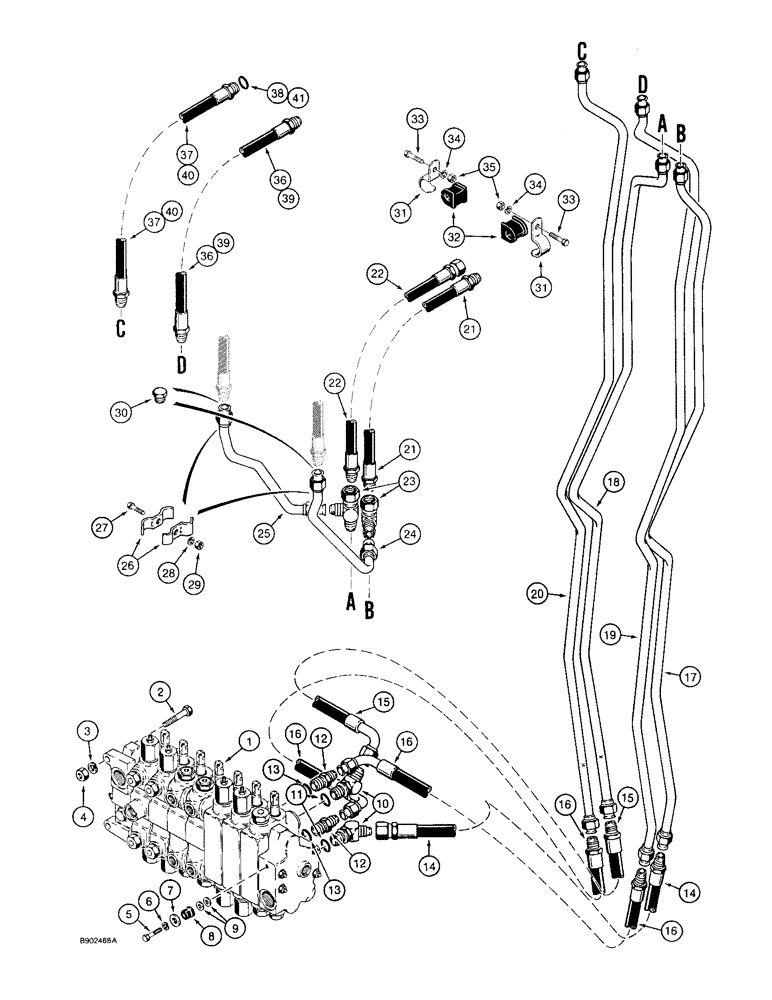

Запчасти Case 580SK (8-052) - BACKHOE AUXILIARY HYDRAULIC CIRCUIT, FOR OPTIONAL REAR HYDRAULIC ATTACHMENTS W/EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, 7-spool, for correct assembly and components, see Figure 8-082, models with extendable dipper or auxiliary hydraulics

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, auxiliary section ports, Incl. Ref 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, bucket section ports, Includes: Ref. 13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D143317

HOSE,15.88mm ID x 1350mm L

1350 mm long, includes one metal hose sleeve, auxiliary section lower port to boom auxiliary right-hand tube

1шт.

15

D143310

HOSE,15.88mm ID x 1900mm L

1900 mm long, includes one metal hose sleeve, auxiliary section upper port to boom auxiliary left-hand tube

1шт.

16

D143311

HOSE,15.88mm ID x 1525mm L

1525 mm long, includes one metal hose sleeve, bucket section upper and lower ports

2шт.

17

D149724

TUBE

right-hand side of boom to rear attachment hose

1шт.

18

D149722

TUBE

left-hand side of boom to rear attachment hose

1шт.

19

D138057

TUBE

right-hand side of boom to bucket cylinder rod end hose

1шт.

20

D138059

TUBE

left-hand side of boom to bucket cylinder closed end hose

1шт.

21

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm long, to extendable dipper cylinder rod end tube

1шт.

22

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

700 mm long, to extendable dipper cylinder closed end

1шт.

23

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1-1/16-12 inch fl branch x flare x adj straight thread

2шт.

24

D140322

PIPE

TUBE right-hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

25

D140324

PIPE

TUBE left-hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

26

D149143

SHIN

CLAMP tubes

4шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

218-777

PLUG,1 1/16"-12, 37 Degree

hex, 1-1/16-12 inch flare not required when rear attachment hoses are installed

2шт.

31

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

hose, replaces D68846

4шт.

32

D67297

BLOCK

INSULATOR, 1 inch

4шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

4шт.

36

D143894

HOSE,15.88mm ID x 2057mm L

2057 mm long, to bucket cylinder rod end tube, used with metal clamps, Ref. 45, on Figure 8-044, if used

1шт.

See Figure 8-044 for hose and tube clamps.

1шт.

37

D143895

HOSE,15.88mm ID x 2027mm L

2027 mm long, to closed end of bucket cylinder, used with metal clamps, Ref. 45, on Figure 8-044, if used, Includes: Ref. 38

1шт.

See Figure 8-044 for hose and tube clamps.

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

39

108335A1

HYDRAULIC HOSE

HOSE, HYDRAULIC, 1960 mm long, to bucket cylinder rod end tube, used with rubber clamp, Ref 62 on Figure 8-044, if used

1шт.

See Figure 8-044 for hose and tube clamps.

1шт.

40

108336A1

HYDRAULIC HOSE

HOSE, HYDRAULIC, 1930 mm long, to closed end of bucket cylinder, used with rubber clamp, Ref 62 on Figure 8-044, if used, Incl Ref 41

1шт.

See Figure 8-044 for hose and tube clamps.

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
