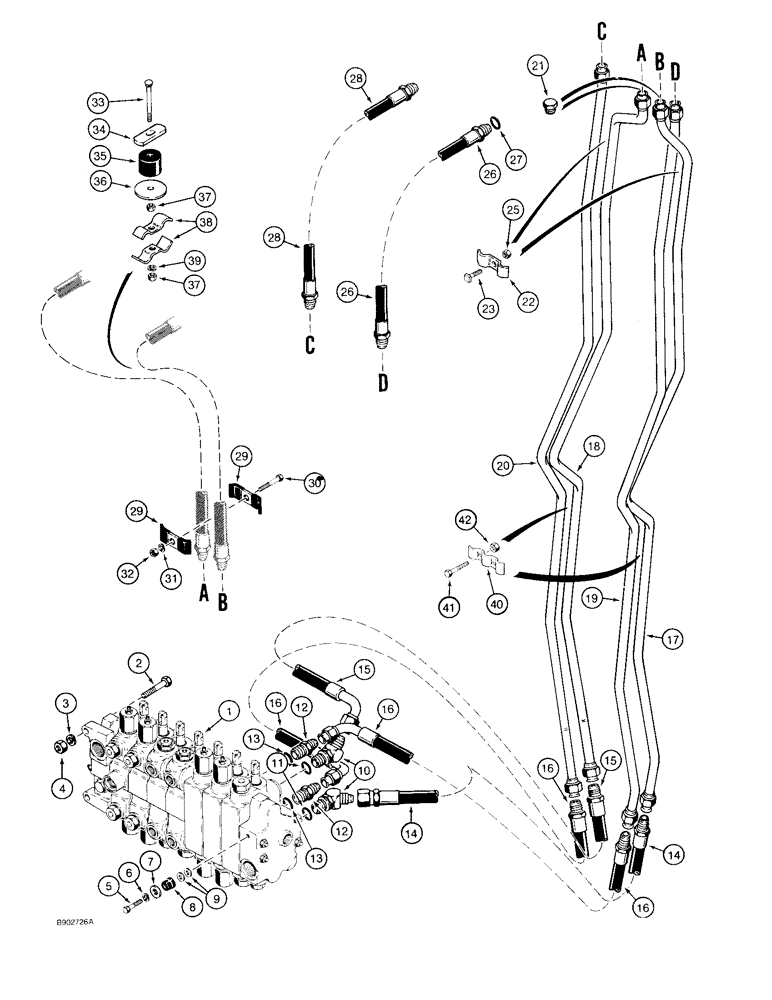

Запчасти Case 580SK (8-048) - BACKHOE AUXILIARY HYDRAULIC CIRCUIT, FOR OPTIONAL REAR HYDRAULIC ATTACHMENTS W/O EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, 7-spool, for correct assembly and components see Figure 8-082, models with extendable dipper or auxiliary hydraulics

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, auxiliary section upper and lower ports, Incl. Ref 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, bucket section upper and lower ports, Includes: Ref. 13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D143317

HOSE,15.88mm ID x 1350mm L

1350 mm long, includes one metal hose sleeve, auxiliary section lower port to boom auxiliary right-hand tube

1шт.

15

D143310

HOSE,15.88mm ID x 1900mm L

1900 mm long, includes one metal hose sleeve, auxiliary section upper port to boom auxiliary left-hand tube

1шт.

16

D143311

HOSE,15.88mm ID x 1525mm L

1525 mm long, includes one metal hose sleeve, bucket section upper and lower ports

2шт.

17

D147791

PIPE

TUBE, right-hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

18

D147789

PIPE

TUBE, left-hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

19

D140156

TUBE

right-hand side of boom to bucket cylinder closed end hose

1шт.

20

D140154

TUBE

left-hand side of boom to bucket cylinder rod end hose

1шт.

21

218-777

PLUG,1 1/16"-12, 37 Degree

hex, 1-1/16-12 inch flare, tube, not required when rear attachment hoses are installed

2шт.

22

D149143

SHIN

CLAMP boom tubes

2шт.

23

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

square head, 3/8 NC x 1 inch, grade 8

2шт.

25

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC

2шт.

26

D140303

HOSE ASSY.

HOSE, 875 mm long, to closed end of bucket cylinder, Includes: Ref. 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

D140302

HOSE

875 mm long, to rod end of bucket cylinder

1шт.

29

D143846

CLAMP

- Hose

2шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

33

111-380

CARRIAGE BOLT,Short NK, 3/8"-16 x 3 1/2", G2

BOLT round head square neck, 3/8 NC x 3-1/2 inch, full thread

1шт.

34

D140188

ANGLE

PLATE anchor, mounts hoses to underside of dipper frame

1шт.

35

D140187

SPACER

hose

1шт.

36

D140189

WASHER

special

1шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

D149143

SHIN

CLAMP hose

2шт.

39

492-11038

LOCK WASHER,3/8"

1шт.

40

D149144

CLAMP

tube

4шт.

41

117-209

SQUARE BOLT,3/8" - 16 x 1 1/4", Gr 8

square head, 3/8 NC x 1-1/4 inch, grade 8

8шт.

42

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC

8шт.
