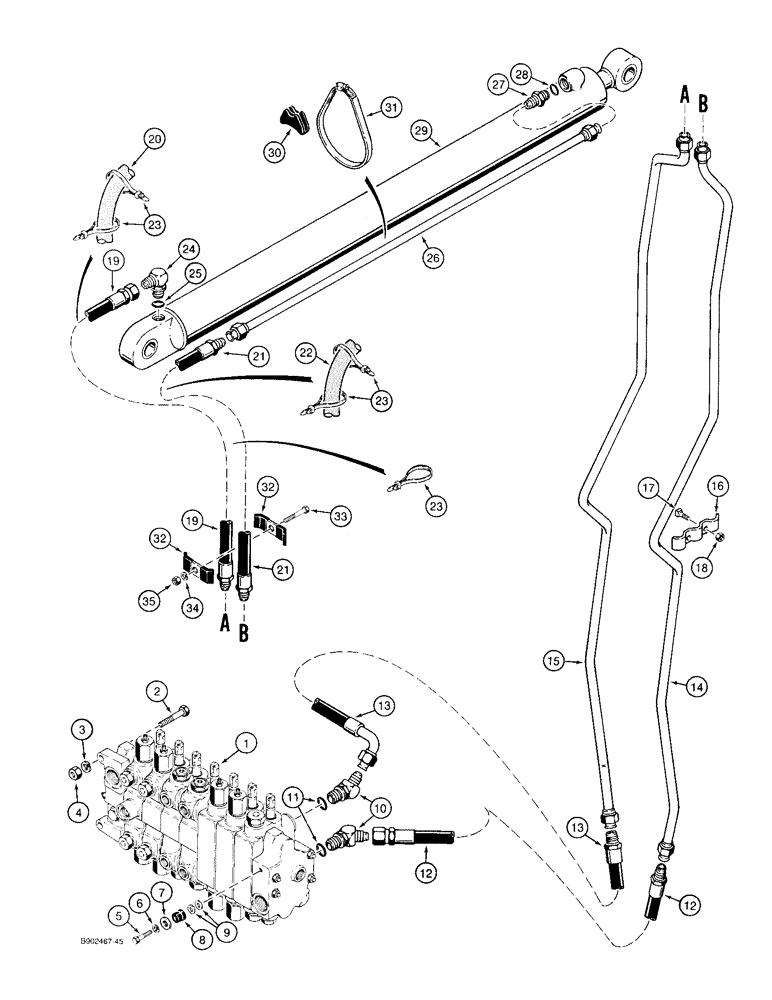

Запчасти Case 580SK (8-046) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, extendahoe, for correct assembly and components see Figure 8-082

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, extendable dipper section upper and lower ports, Incl. Ref 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

D143317

HOSE,15.88mm ID x 1350mm L

1350 mm long, includes one metal hose sleeve, extendahoe section lower port to boom extendable dipper right-hand tube

1шт.

13

D143310

HOSE,15.88mm ID x 1900mm L

1900 mm long, includes one metal hose sleeve, extendahoe section upper port to boom extendable dipper left-hand tube

1шт.

14

D147791

PIPE

TUBE right-hand side of boom, to extendable dipper cylinder rod end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 8-052.

1шт.

15

D147789

PIPE

TUBE left-hand side of boom, to extendable dipper cylinder closed end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 8-052.

1шт.

16

D149144

CLAMP

boom tubes, plated

4шт.

17

117-209

SQUARE BOLT,3/8" - 16 x 1 1/4", Gr 8

square head, 3/8 NC x 1-1/4 inch, grade 8

8шт.

18

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC

8шт.

19

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

700 mm long, extendable dipper cylinder closed end

1шт.

20

D134729

SLEEVE

hose guard, 625 mm long, cylinder closed end hose, cut to required length from D134728 bulk sleeve

1шт.

21

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm long, extendable dipper cylinder rod end

1шт.

22

D134728

TUBE

SLEEVE hose guard, 725 mm long, cylinder rod end hose

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

5шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, cylinder closed end

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D140706

PIPE

TUBE extendable dipper cylinder rod end

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

1340969C1

CYLINDER ASSY.

CYLINDER ASSEMBLY extendable dipper, parts list Figure 8-140

1шт.

30

D38648

BLOCK

INSULATOR rubber

1шт.

31

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #64, 3.56/4.50 Type F Worm

1шт.

32

D40236

CLAMP

hose

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

D134728

TUBE

SLEEVE, 725 mm long, bulk

1шт.
