(8-044) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH

Запчасти Case 580SK (8-044) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH (08) - HYDRAULICS

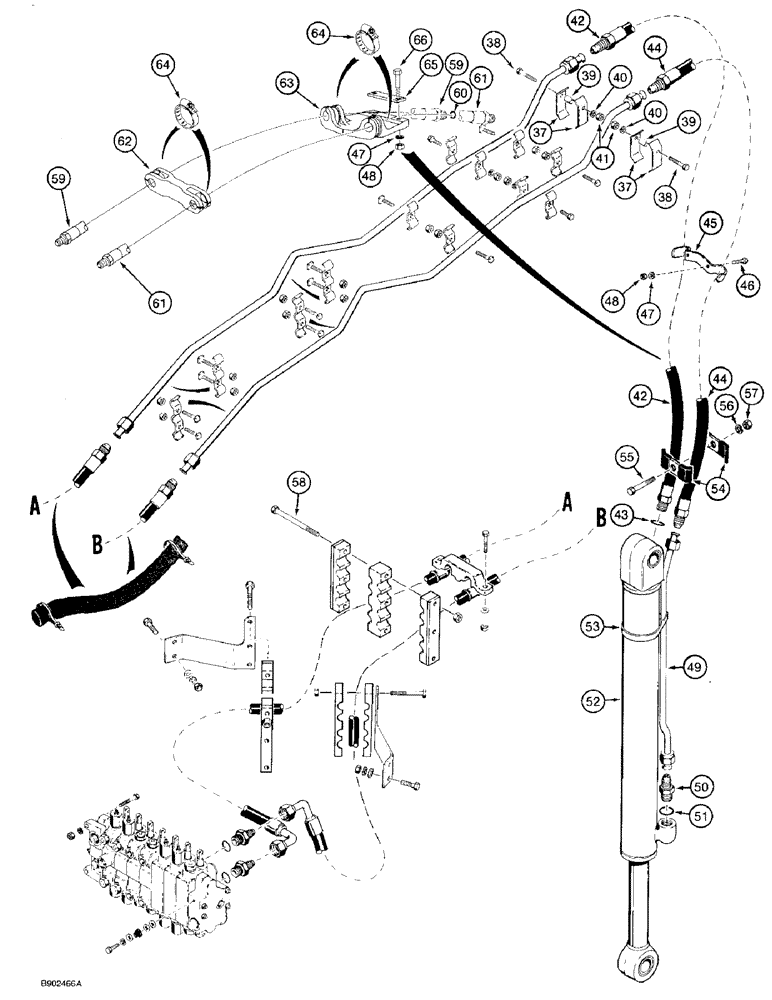

Схема запчастей Case 580SK - (8-044) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH (08) - HYDRAULICS
66
46
44
43
52
62
53
40
63
60
48
38
59
47
51
45
40
50
48
61
37
42
61
44
49
55
58
64
39
64
38
54
37
39
47
56
57
41
65
42
59
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

37

D143426

CLAMP

bucket tube to boom, plated

4шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

39

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp, plated

2шт.

40

492-11038

LOCK WASHER,3/8"

2шт.

41

425-106

NUT,3/8"-16, Cl 5

2шт.

42

D143895

HOSE,15.88mm ID x 2027mm L

2027 mm long, to closed end of bucket cylinder, used with metal clamps, Ref. 45, if used

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

44

D143894

HOSE,15.88mm ID x 2057mm L

2057 mm long, to bucket cylinder rod end tube, used with metal clamps, Ref. 45, if used

1шт.

45

D140221

CLAMP

hose to dipper, if used

1шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, if used

2шт.

47

492-11038

LOCK WASHER,3/8"

2шт.

48

425-106

NUT,3/8"-16, Cl 5

2шт.

49

D141248

TUBE

to rod end of bucket cylinder

1шт.

50

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, at rod end of bucket cylinder, Incl. Ref. 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

52

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket, for correct assembly and components, see Figure 8-136 - 8-139C

1шт.

53

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #72, 4.06/5.00 Type F Worm

1шт.

54

D40236

CLAMP

hose

2шт.

55

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

56

492-11038

LOCK WASHER,3/8"

1шт.

57

425-106

NUT,3/8"-16, Cl 5

1шт.

58

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

3шт.

59

108336A1

HYDRAULIC HOSE

HOSE, HYDRAULIC, 1930 mm long, to closed end of bucket cylinder, used with rubber clamp, Ref 62, if used, Incl Ref 60

1шт.

60

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

61

108335A1

HYDRAULIC HOSE

HOSE, HYDRAULIC, 1960 mm long, to bucket cylinder rod end tube, used with rubber clamp, Ref 62, if used

1шт.

62

103670A1

CLAMP,27mm ID

CLAMP hose, rubber, if used

1шт.

63

103270A1

SHIN

SUPPORT hose, if used

1шт.

64

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP hose, if used

4шт.

65

101479A1

SUPPORT

PLATE hose support, if used

1шт.

66

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.
