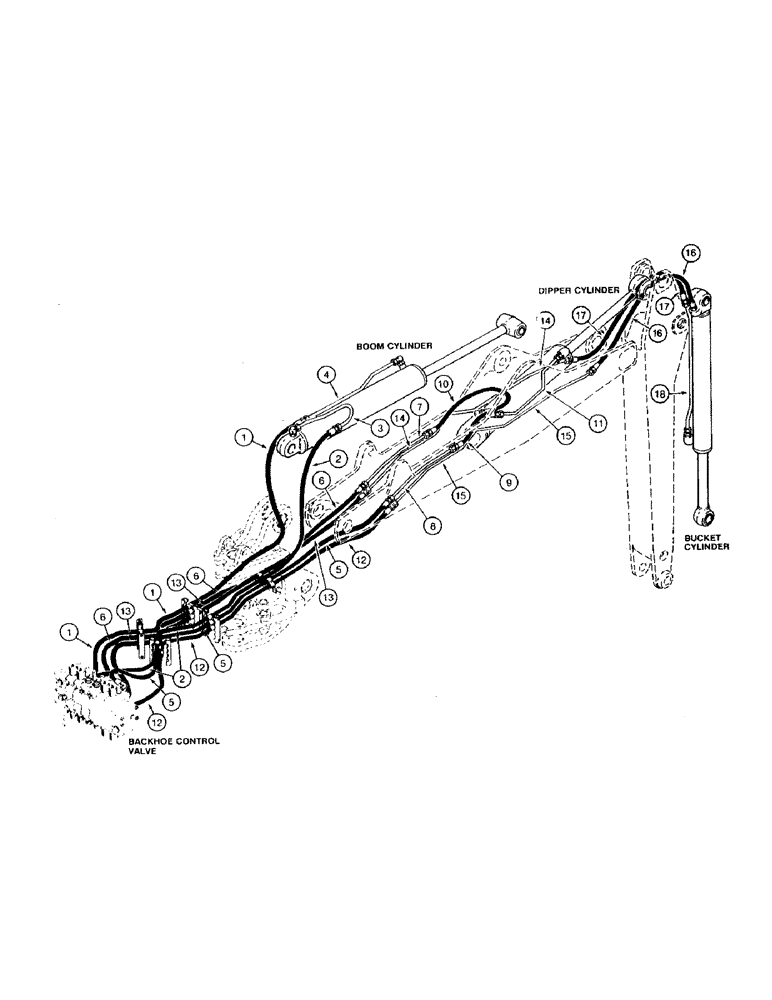

Запчасти Case 580SK (1-20) - PICTORIAL INDEX BACKHOE HYDRAULICS BOOM, DIPPER AND BUCKET (00) - PICTORIAL INDEX

1

Hose at lower port of backhoe control valve boom section to boom cylinder rod end, Figure 8-030

1шт.

2

Hose at upper port of backhoe control valve boom section to boom cylinder closed end, Figure 8-030

1шт.

3

Tube at boom cylinder closed end, Figure 8-030

1шт.

4

Tube at boom cylinder rod end, Figure 8-030

1шт.

5

Hose at upper port of backhoe control valve dipper section, Figure 8-034

1шт.

6

Hose at lower port of backhoe control valve dipper section, Figure 8-034

1шт.

7

Tube at left-hand side of boom, from dipper section lower port hose, Figure 8-034

1шт.

8

Tube at right-hand side of boom, from dipper section upper port hose, Figure 8-034

1шт.

9

Hose at dipper cylinder rod end tube, Figure 8-036

1шт.

10

Hose at dipper cylinder closed end, Figure 8-036

1шт.

11

Tube at dipper cylinder rod end, Figure 8-036

1шт.

12

Hose at lower port of backhoe control valve bucket section, Figure 8-038

1шт.

13

Hose at upper port of backhoe control valve bucket section, Figure 8-038

1шт.

14

Tube on left-hand side of boom, to bucket cylinder rod end hose, Figure 8-038

1шт.

15

Tube on right-hand side of boom, to bucket cylinder closed end hose, Figure 8-038

1шт.

16

Hose at closed end of bucket cylinder, Figure 8-040

1шт.

17

Hose at bucket cylinder rod end tube, Figure 8-040

1шт.

18

Tube at rod end of bucket cylinder, Figure 8-040

1шт.
