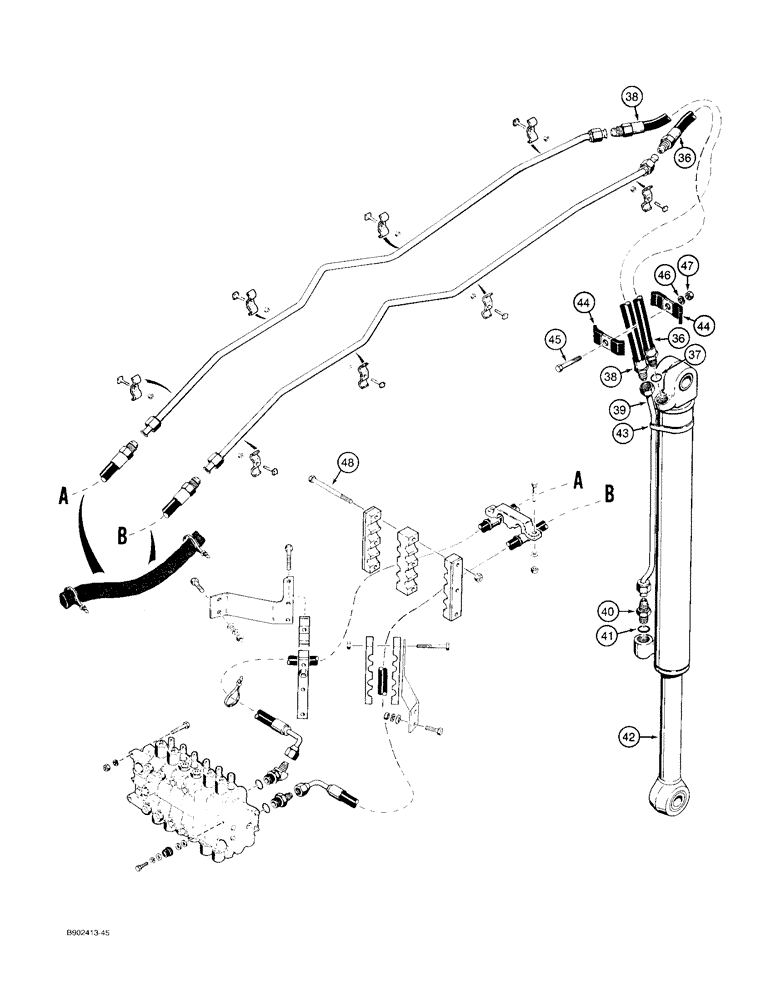

Запчасти Case 580SK (8-040) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT (08) - HYDRAULICS

36

D136489

HOSE,15.88mm ID x 640mm L

640 mm long, to closed end of bucket cylinder, Includes: Ref. 37

1шт.

For hoses used on models with auxiliary hydraulics for optional rear hydraulic attachments, see Figure 8-048.

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

38

D136488

HOSE,15.88mm ID x 640mm L

640 mm long, to bucket cylinder rod end tube

1шт.

For hoses used on models with auxiliary hydraulics for optional rear hydraulic attachments, see Figure 8-048.

1шт.

39

D141248

TUBE

to rod end of bucket cylinder

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, 1-1/16-12 inch flare x O-ring boss, at rod end of bucket cylinder, Incl. Ref. 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

42

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket, for correct assembly and components, see Figure 8-136 - 8-139C

1шт.

43

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #72, 4.06/5.00 Type F Worm

1шт.

44

D40236

CLAMP

hose

2шт.

45

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

46

492-11038

LOCK WASHER,3/8"

1шт.

47

425-106

NUT,3/8"-16, Cl 5

1шт.

48

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

3шт.
