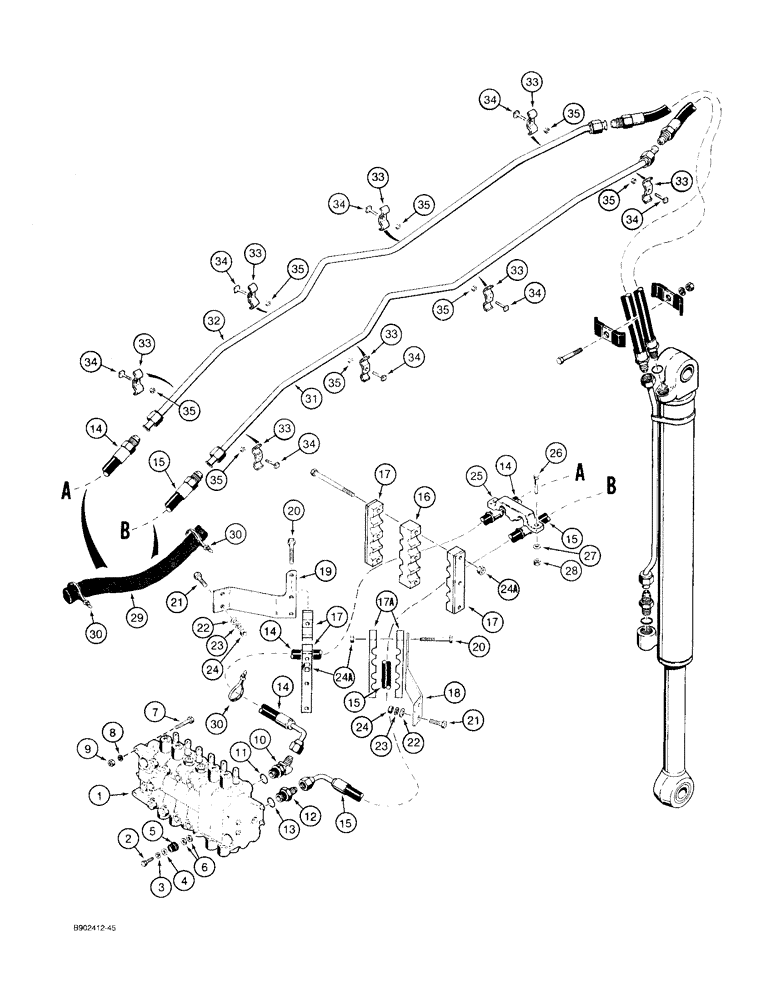

Запчасти Case 580SK (8-038) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components see Figure 8-08

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, bucket section upper port, Incl. Ref 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER, straight, 7/8-14 flare x 1-1/16-12 inch O-ring, bucket section lower port, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

14

D143310

HOSE,15.88mm ID x 1900mm L

1900 mm long, bucket section upper port

1шт.

15

D143311

HOSE,15.88mm ID x 1525mm L

1525 mm long, bucket section lower port

1шт.

16

D145139

CLAMP

center, rubber

1шт.

17

D145309

CLAMP

hose, rubber

4шт.

17a

D144881

CLAMP

hose, rubber

2шт.

18

D145208

BRACKET

right-hand side, support, rear hose clamps

1шт.

19

D145209

BRACKET

left-hand side, support, rear hose clamps

1шт.

20

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

24a

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC

9шт.

25

D127250

CLAMP

hose, mounts to swing tower

1шт.

26

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

hex, 7/16 NC x 3 inch

2шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

28

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

29

D132054

SLEEVE

hose guard, 500 mm long, cut to required length from D134728 bulk sleeve

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, hose

5шт.

31

D140156

TUBE

right-hand side of boom, to bucket cylinder closed end hose

1шт.

32

D140154

TUBE

left-hand side of boom, to bucket cylinder rod end hose

1шт.

33

D149143

SHIN

CLAMP, Serial Range: tube-boom

8шт.

34

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

square, 3/8 NC x 1 inch, grade 8

8шт.

35

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC, replaces 131-666

8шт.

D134728

TUBE

SLEEVE, 725 mm long, bulk

1шт.
