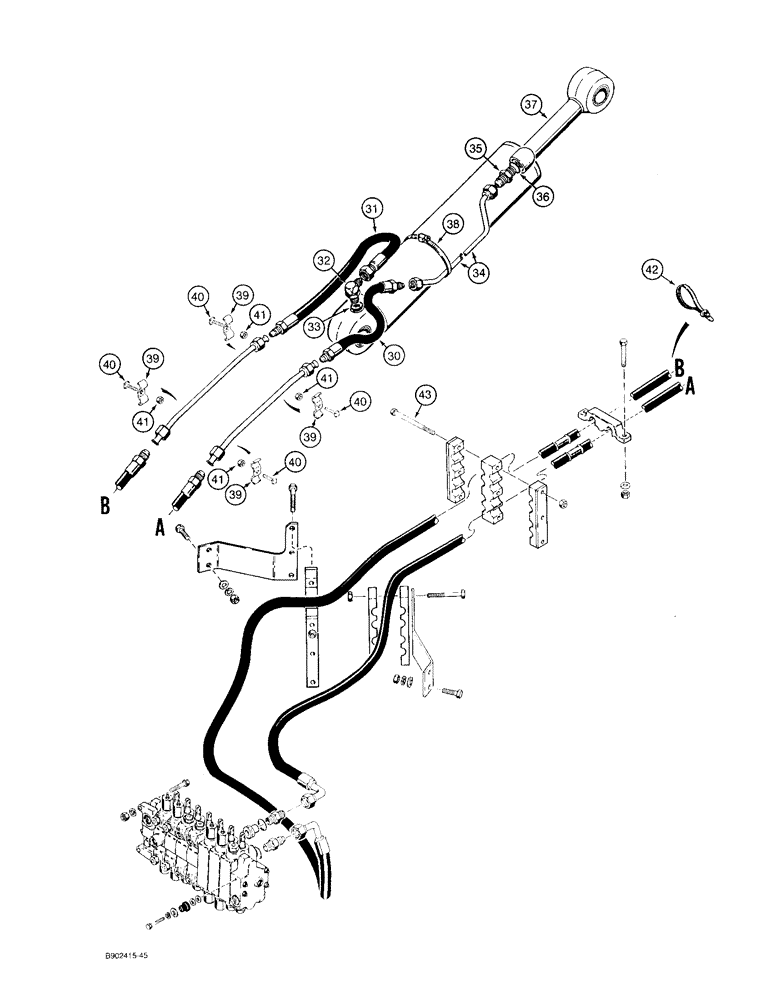

Запчасти Case 580SK (8-036) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

30

D127687

HOSE,15.88mm ID x 400mm L

400 mm long, at dipper cylinder rod end tube

1шт.

31

D140157

HOSE,15.88mm ID x 750mm L

750 mm long, dipper cylinder closed end

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, dipper cylinder closed end, Incl. Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

34

D139898

PIPE

TUBE, dipper cylinder rod end

1шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, dipper cylinder rod end, Incl. Ref. 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

37

REF

INSTRUCTION

CYLINDER ASSEMBLY dipper, for correct assembly and components, see Figure 8-132 - 8-135C

1шт.

38

214-1488

HOSE CLAMP,130.05mm - 152.4mm

CLAMP, HOSE, , Adj., Tube to cylinder #88, 5.12/6.00 Type F Worm

1шт.

39

D149143

SHIN

CLAMP, Serial Range: tube-boom

4шт.

40

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

square, 3/8 NC x 1 inch, grade 8

4шт.

41

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC, replaces 131-666

4шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

43

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

3шт.
