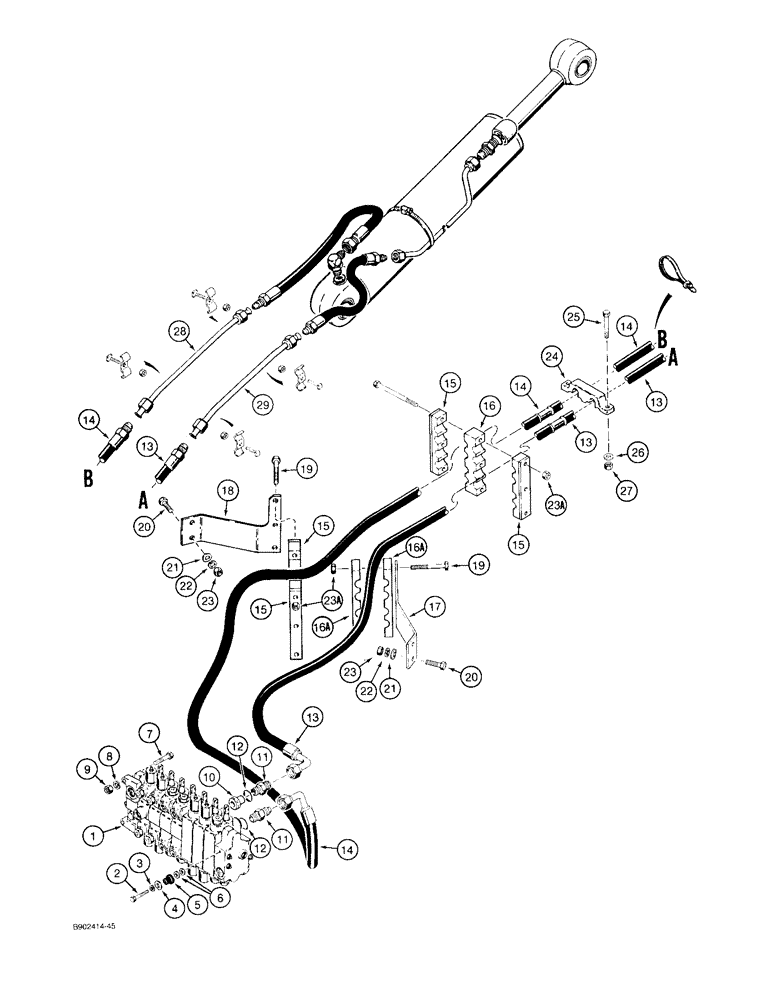

Запчасти Case 580SK (8-034) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components, see Figure 8-080 or 8-082

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

D140183

RESTRICTOR

dipper section upper port

1шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, dipper section upper and lower ports, Includes: Ref. 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

13

D143315

HOSE,15.88mm ID x 1400mm L

1400 mm long, includes one hose sleeve, dipper section upper port

1шт.

14

D143316

HOSE,15.88mm ID x 1450mm L

1450 mm long, includes one hose sleeve, dipper section lower port

1шт.

15

D145309

CLAMP

hose, rubber

4шт.

16

D145139

CLAMP

center, rubber, hose

1шт.

16a

D144881

CLAMP

hose, rubber

2шт.

17

D145208

BRACKET

right-hand side, support, rear hose clamps

1шт.

18

D145209

BRACKET

left-hand side, support, rear hose clamps

1шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

23a

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC

9шт.

24

D127250

CLAMP

hose, mounts to swing tower

1шт.

25

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

hex, 7/16 NC x 3 inch

2шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

27

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

28

D139901

TUBE

left-hand side of boom, from dipper section lower port hose

1шт.

29

D139903

TUBE

right-hand side of boom, from dipper section upper port hose

1шт.
