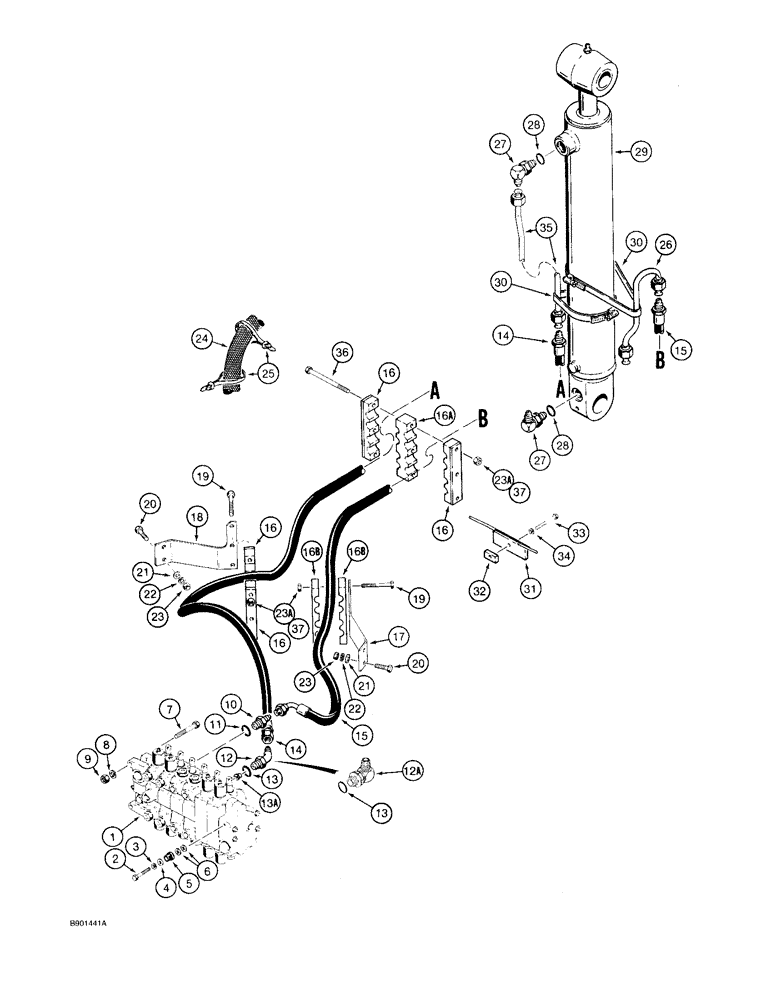

Запчасти Case 580SK (8-030) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components see Figure 8-080 or 8-082

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, boom section upper port, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

12

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, boom section lower port, if used

1шт.

12a

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 degree, 7/-14 flare x 1-1/16-12 inch adj O-ring, boom section lower port, if used, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide, 218-5149 or 218-5119 elbow

1шт.

13a

D77182

FITTING

RESTRICTOR boom section lower port

1шт.

14

D143313

HOSE,15.88mm ID x 1275mm L

1275 mm long, without hose sleeves, boom cylinder rod end to boom section lower port

1шт.

15

D143312

HOSE,15.88mm ID x 1475mm L

1475 mm long, without hose sleeves, boom cylinder closed end to boom section upper port

1шт.

16

D145309

CLAMP

hose, rubber

4шт.

16a

D145139

CLAMP

center, hose, rubber

1шт.

16b

D144881

CLAMP

hose, rubber

2шт.

17

D145208

BRACKET

right-hand side, support, rear hose clamps

1шт.

18

D145209

BRACKET

left-hand side, support, rear hose clamps

1шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

23a

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC

9шт.

24

D134728

TUBE

SLEEVE hose guard

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

4шт.

26

D139401

TUBE

boom cylinder closed end

1шт.

See Figure 8-058, Ref. 12, 15, and 22, for tubes used on models with hydraulic boom lock.

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 28

2шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide

1шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY boom, for correct assembly and components, see Figure 8-128 - 8-131C

1шт.

30

214-14100

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP adj, 5-7/8 - 6-3/4 inch dia, tube to cylinder

2шт.

31

D140105

BRACKET

hose guide

1шт.

32

D143425

BAR

PLATE bracket retainer

1шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

D141614

TUBE

at boom cylinder rod end

1шт.

See Figure 8-058, Ref. 12, 15, and 22, for tubes used on models with hydraulic boom lock.

1шт.

36

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

3шт.

37

131-203

LOCK NUT,3/8"-16, GB, LH

NUT light hex, self-locking, 3/8 inch NC, models with backhoe boom lock

3шт.
