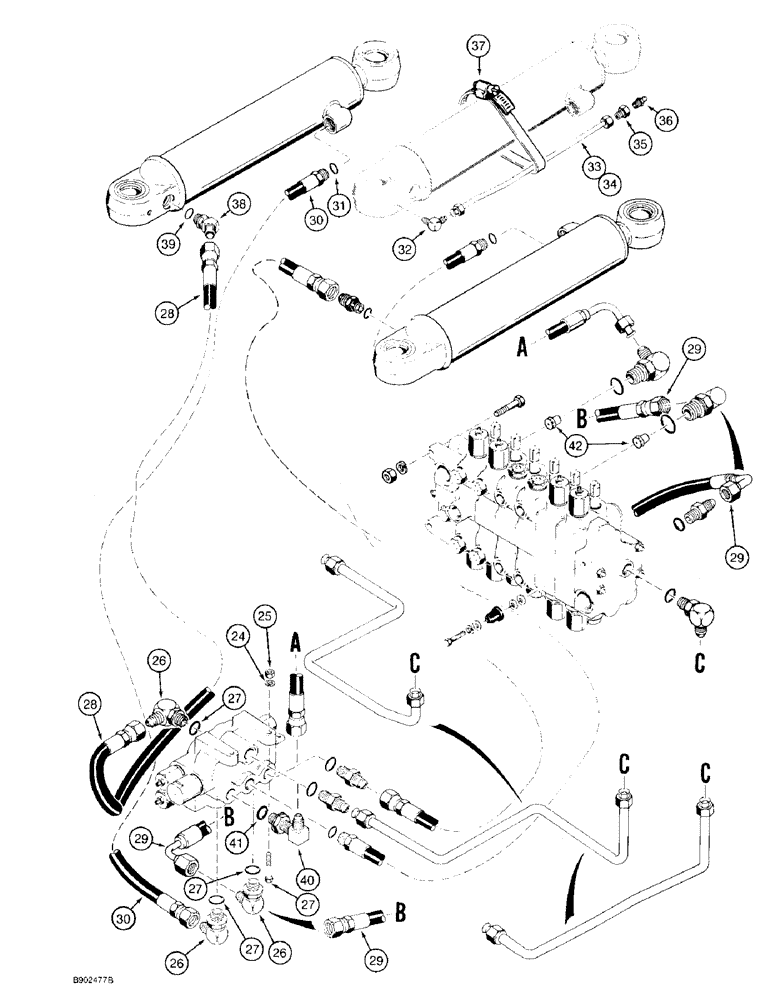

Запчасти Case 580SK (8-028) - BACKHOE SWING CYLINDER AND, SWING SEQUENCE VALVE HYDRAULIC (08) - HYDRAULICS

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 27

3шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

D146726

HOSE

550 mm long, swing sequence valve to left-hand swing cylinder closed end

1шт.

29

D149547

HOSE

550 mm long, swing section lower port to swing sequence valve lower port

1шт.

If straight female end of Ref. 29 hose is at backhoe valve lower port, use Ref. 16 elbow; however, if elbow end of Ref. 29 hose is at backhoe valve lower port, use Ref. 16A adapter.

1шт.

30

D143685

HOSE

633 mm long, swing sequence valve to left-hand swing cylinder rod end, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree, 7/16-20 flare x 1/8 inch PT, grease tube to cylinder

2шт.

33

D134964

TUBE

grease, left-hand swing cylinder

1шт.

34

D134966

TUBE

grease, right-hand swing cylinder

1шт.

35

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER straight, 7/16-20 flare x 1/8 inch female PT, grease tube coupler

2шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 inch PT

2шт.

37

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Grease tube #64, 3.56/4.50 Type F Worm

2шт.

38

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, 7/8-14 inch flare x adj O-ring boss, left-hand swing cylinder closed end, Incl. Ref 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

R20894

FITTING

ELBOW, 90 degree, Includes:Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

D142394

RESTRICTOR

check, if used

2шт.
