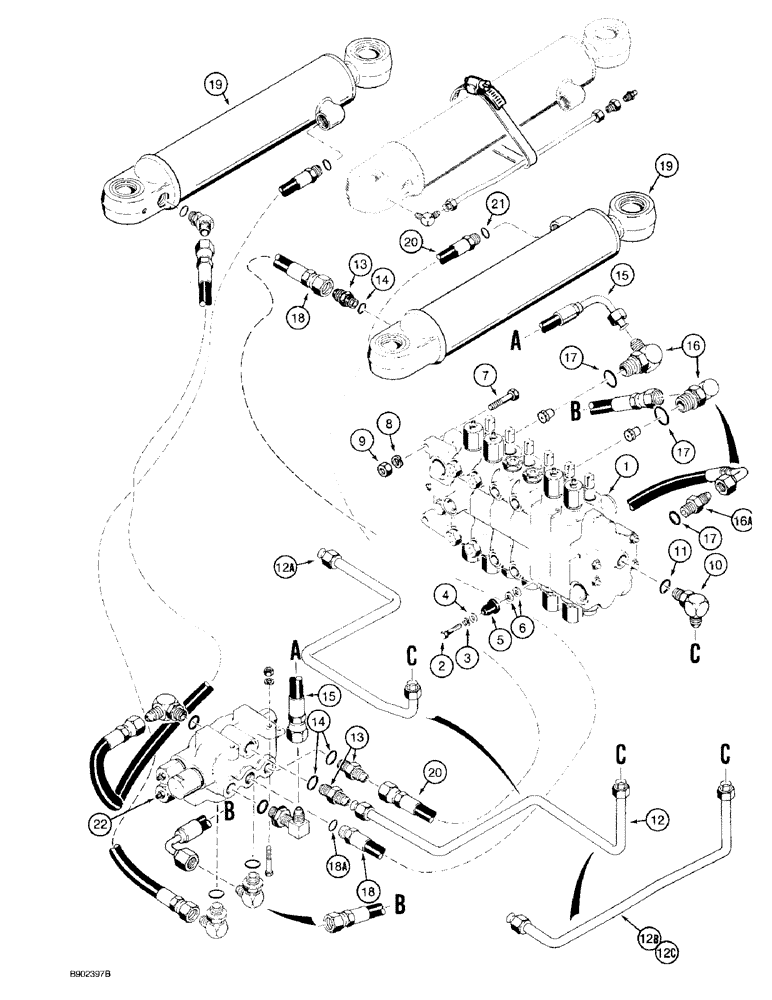

Запчасти Case 580SK (8-026) - BACKHOE SWING CYLINDER AND, SWING SEQUENCE VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components, see Figure 8-080 or 8-082

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick, if used

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

D145473

HOSE

TUBE, 1980440C1 swing sequence valve, drain, used on models with six spool backhoe valve, if used

1шт.

12a

D145475

TUBE

UBE, 1980440C1 swing sequence valve, drain, used on models with seven spool backhoe valve and models with optional rear hydraulic attachments, if used

1шт.

Ref. 12A tubes pass under the valve body and enter on the opposite side of the valve from the old Ref. 12. The adjustable 90 must be turned to line up.

1шт.

12b

D150889

PIPE

TUBE, 1346067C1 swing sequence valve, drain, used on models with six spool backhoe valve, if used

1шт.

Ref. 12B tubes pass under the valve body and enter on the opposite side of the valve from the old Ref. 12. The adjustable 90 must be turned to line up.

1шт.

12c

D150896

PIPE

TUBE, 1346067C1 swing sequence valve, drain, used on models with seven spool backhoe valve and models with optional rear hydraulic attachments, if used

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 14

3шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

D149547

HOSE

550 mm long, swing section upper port to sequence valve

1шт.

16

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 degree, 7/8-14 inch flare x 1-1/16-12 inch adj O-ring

1-2шт.

If straight female end of Ref. 29 hose is at backhoe valve lower port, use Ref. 16 elbow; however, if elbow end of Ref. 29 hose is at backhoe valve lower port, use Ref. 16A adapter.

1шт.

16a

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, swing section lower port, if used, Includes: Ref. 17

1шт.

If straight female end of Ref. 29 hose is at backhoe valve lower port, use Ref. 16 elbow; however, if elbow end of Ref. 29 hose is at backhoe valve lower port, use Ref. 16A adapter.

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8 inch wide, 218-5119 or 218-5063 fitting

1шт.

18

D143685

HOSE

633 mm long, swing sequence valve to right-hand swing cylinder closed end, Includes: Ref. 18A

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY swing, right-hand and left-hand, for correct assembly and components, see Figure 8-124 - 8-127A

2шт.

20

D31368

HOSE

29-3/4 inch long, swing sequence valve to right-hand swing cylinder rod end, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY swing sequence, for correct assembly and components, see Figure 8-100 or 8-101A

1шт.
