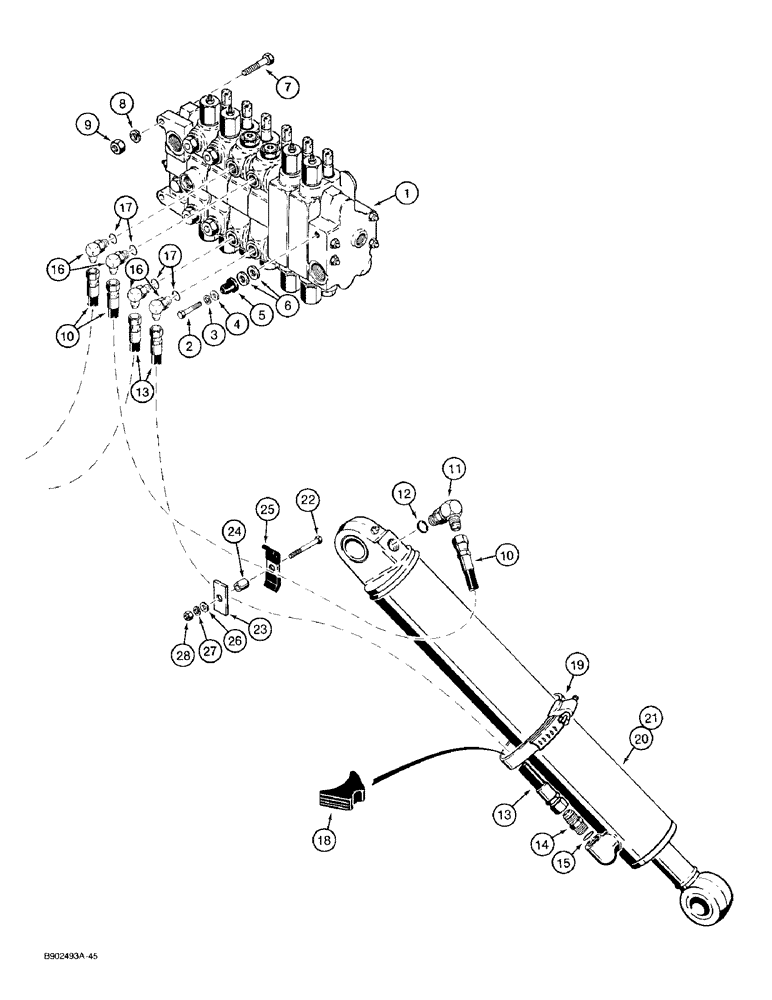

Запчасти Case 580SK (8-024) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components, see Figure 8-080 or 8-082

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32 x 7/8 x 1/16 inch, if used

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

D146492

HOSE,9.53mm ID x 1140mm L, SAE 100R2

1140 mm long, stabilizer sections upper ports to stabilizer cylinders, closed ends

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, hose to stabilizer cylinders closed end, Includes: Ref. 12.

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

D150812

HOSE,9.53mm ID x 1273mm L

1273 mm long, stabilizer cylinders, rod end to stabilizer sections lower ports, replaces D147943

2шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, stabilizer cylinder rod ends, Incl. Ref 15

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, stabilizer sections upper and lower ports, lncludes: Ref. 17

4шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

D142787

SPACER

INSULATOR rubber

2шт.

19

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP, HOSE, , Adj. 4.75/5.625 HD Worm

2шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY right-hand stabilizer, for correct assembly and components, see Figure 8-122 or 8-123A

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY left-hand stabilizer, for correct assembly and components, see Figure 8-122 or 8-123A

1шт.

22

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

2шт.

23

D150099

SHIN

PLATE spacer, hose

2шт.

24

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

hose clamp

2шт.

25

D143846

CLAMP

- Plastic, 5/8 inch hose

2шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

27

492-11038

LOCK WASHER,3/8"

2шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.
