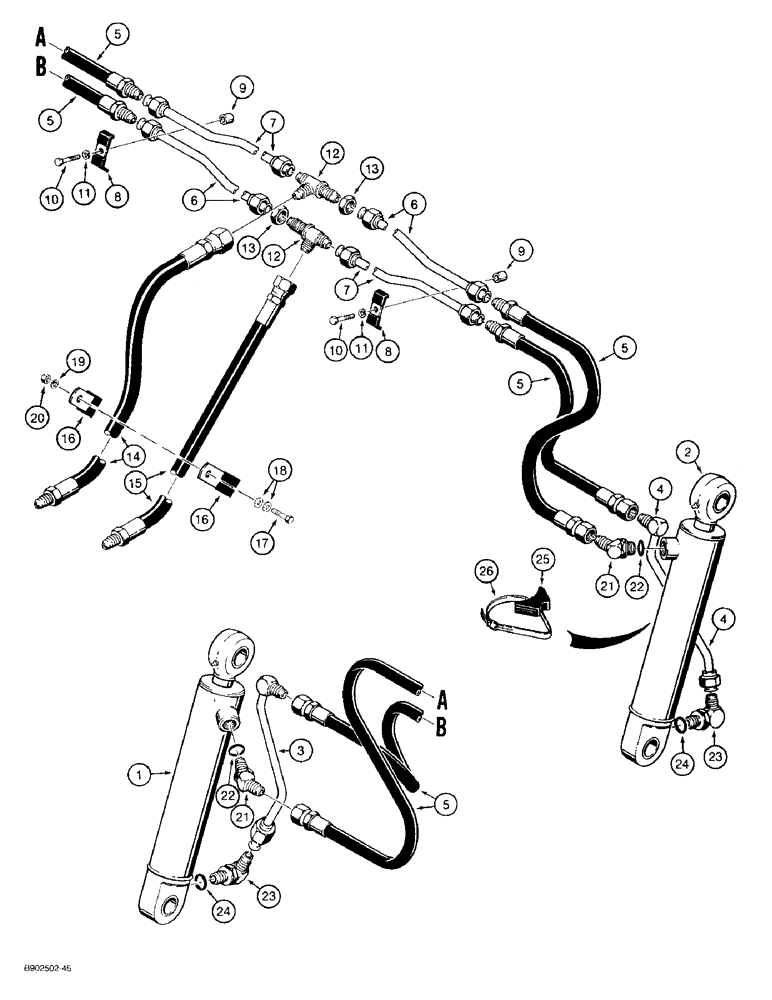

Запчасти Case 580SK (8-022) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT LOADER BUCKET (08) - HYDRAULICS

1

1346190C1

CYLINDER ASSY.

CYLINDER ASSEMBLY clam, left-hand, parts list Figure 8-120

1шт.

2

1346189C1

CYLINDER ASSY.

CYLINDER ASSEMBLY clam, right-hand, parts list Figure 8-120

1шт.

2

87454017R

REMAN-HYD CYLINDER

580SK CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE, CYLINDER ASSEMBLY, clam, right-hand, Reman for New PN 1346189C1

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

D148192

PIPE

TUBE left-hand cylinder

1шт.

4

D148190

TUBE

right-hand cylinder

1шт.

5

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

26 inch long, right-hand and left-hand cylinders

4шт.

6

D134461

TUBE

horizontal, right-hand upper and left-hand lower

2шт.

7

D134459

TUBE

horizontal, right-hand lower and left-hand upper

2шт.

8

D40236

CLAMP

horizontal tubing

2шт.

9

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

tube clamps

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

7/8-14 inch flare branch x flare x bulkhead flare, connecting horizontal and vertical tubes and hoses

2шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

14

D148252

HOSE

1000 mm long, clam cylinder, rod end

1шт.

15

D148251

HOSE

895 mm long, clam cylinder, closed end

1шт.

16

S88820

CLAMP

vertical hoses

2шт.

17

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

21

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, 7/8-14 inch flare x adj O-ring boss, clam cylinders, rod end, Incl. Ref 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, adjustable, clam cylinders, closed end, Incl. Ref. 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

D38648

BLOCK

INSULATOR rubber, clamp

2шт.

26

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Clam cylinder tubing #64, 3.56/4.50 Type F Worm

2шт.
