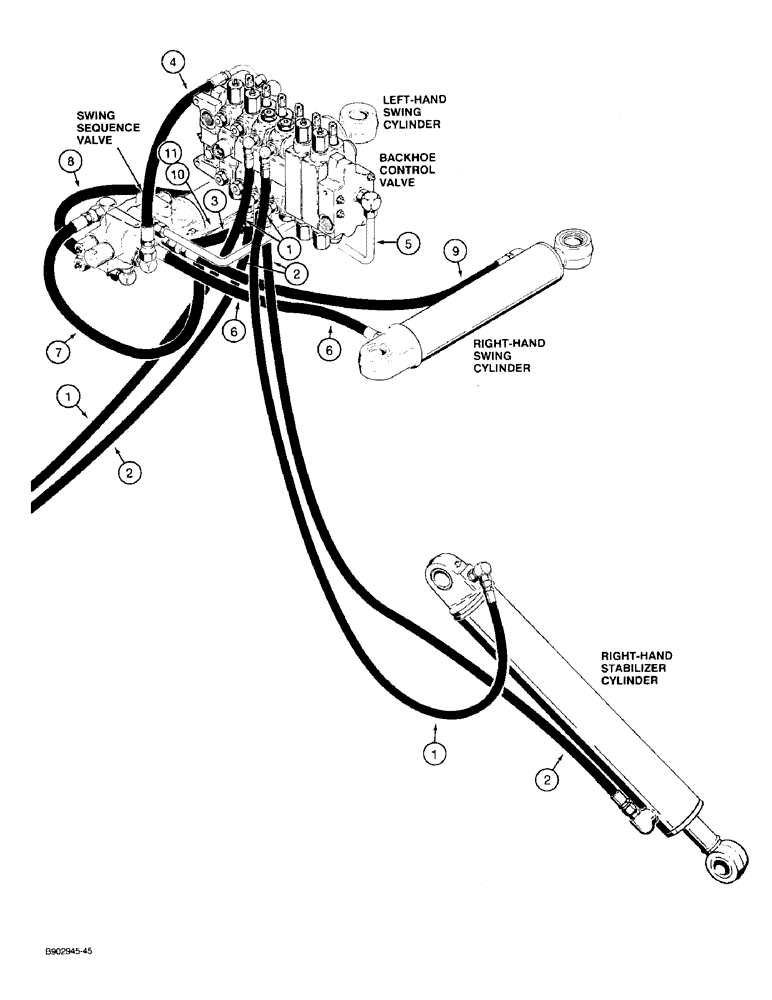

Запчасти Case 580SK (1-18) - PICTORIAL INDEX BACKHOE HYDRAULICS STABILIZER CYLINDER SWING CYLINDER & SWING SEQUENCE VALVE (00) - PICTORIAL INDEX

1

Hose at upper port of backhoe control valve to stabilizer cylinder, closed end, Figure 8-024

1шт.

2

Hose at lower port of backhoe control valve to stabilizer cylinder, rod end, Figure 8-024

1шт.

3

Hose at swing section lower port of swing sequence valve lower port, Figure 8-028

1шт.

4

Hose at swing section upper to port to swing sequence valve, Figure 8-026

1шт.

5

Swing sequence valve drain tube, Figure 8-026

1шт.

6

Hose at swing sequence valve to right-hand swing cylinder closed end, Figure 8-028

1шт.

7

Hose at swing sequence valve to left-hand swing cylinder closed end, Figure 8-026

1шт.

8

Hose at swing sequence valve to left-hand swing cylinder rod end, Figure 8-028

1шт.

9

Hose at swing sequence valve to right-hand swing cylinder rod end, Figure 8-026

1шт.

10

Grease tube for right-hand swing cylinder, Figure 8-028

1шт.

11

Grease tube for left-hand swing cylinder, Figure 8-028

1шт.
