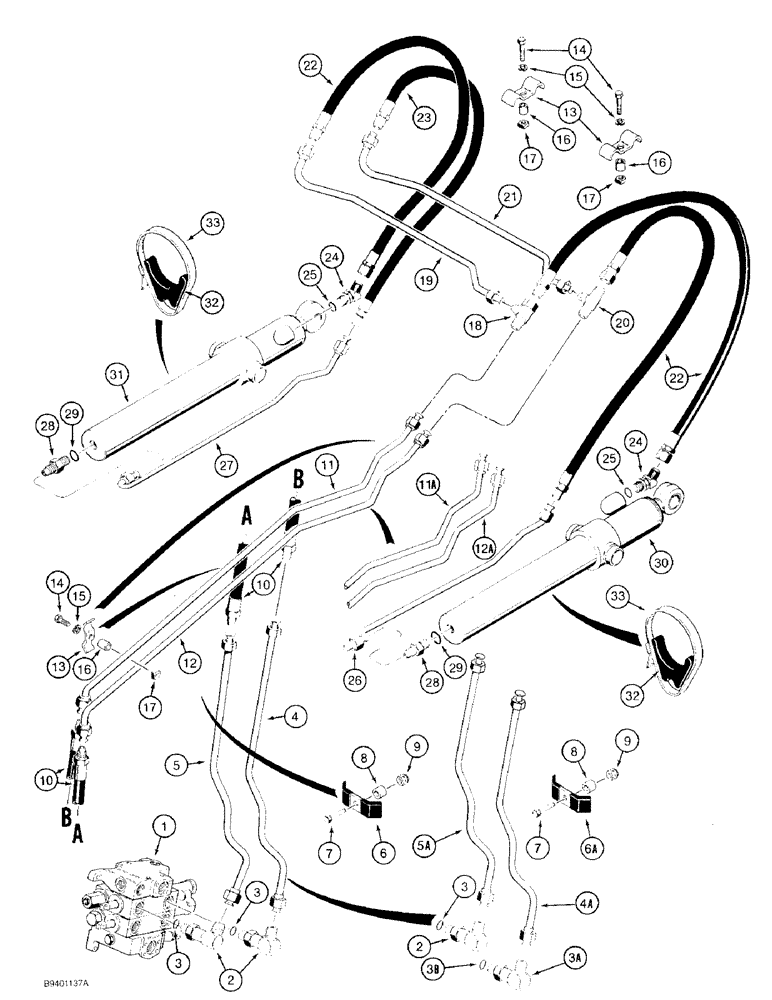

Запчасти Case 580SK (8-018A) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY loader control, for correct assembly and components, see Figure 8-062 or 8-066, for mounting see Figure 9-002

1шт.

2

R20894

FITTING

ELBOW, 90 degree, special, two used prior to P.I.N. JJG0169931, one used P.I.N. JJG0169931 and after, Includes: Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3a

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, P.I.N. JJG0169931 and after, Incl. Ref. 3B

1шт.

3b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D147961

PIPE

TUBE, lower port of control valve, prior to P.I.N. JJG0169931

1шт.

4a

D150989

TUBE ASSY.

TUBE, lower port of control valve, P.I.N. JJG0169931 and after

1шт.

5

D147963

PIPE

TUBE, upper port of control valve, prior to P.I.N. JJG0169931

1шт.

5a

D151079

TUBE ASSY.

TUBE, upper port of control valve, P.I.N. JJG0169931 and after

1шт.

6

D143846

CLAMP

- Tube to chassis, prior to P.I.N. JJG0169931

1шт.

6a

D138055

CLAMP

tube to chassis, P.I.N. JJG0169931 and after

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

8

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

clamp

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

1шт.

10

D125995

HOSE,12.7mm ID x 750mm L

750 mm long, at loader lift frame pivot

2шт.

11

D146250

PIPE

TUBE upper, on right-hand lift arm, no longer available, order D150598 and D150600 tubes, Ref. 11A and 12A

1шт.

11a

D150598

TUBE ASSY.

TUBE upper, on right-hand lift arm

1шт.

12

D146254

PIPE

TUBE lower, on right-hand lift arm, no longer available, order D150598 and D150600 tubes, Ref. 11A and 12A

1шт.

12a

D150600

TUBE ASSY.

TUBE lower, on right-hand lift arm

1шт.

13

D143427

CLAMP

tubes to lift arm

5шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

5шт.

15

492-11038

LOCK WASHER,3/8"

5шт.

16

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 OD x 6 mm long, plated

5шт.

17

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

5шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 inch flare branch x flare x adj straight thread, at upper lift frame crossover tube

1шт.

19

D146552

PIPE

TUBE lower, crossover, at upper lift frame, to rod end of bucket cylinders

1шт.

20

218-595

TEE,7/8"-14, 37 Degree

7/8-14 inch flare, at upper lift frame crossover tube

1шт.

21

D146550

PIPE

TUBE upper, crossover, at upper lift frame, to closed end of bucket cylinders

1шт.

22

D131497

HOSE,12.7mm ID x 725mm L

725 mm long, to rod end of left-hand and right-hand bucket cylinders and to closed end of right-hand bucket cylinder, replaces D140951

3шт.

23

D125995

HOSE,12.7mm ID x 750mm L

750 mm long, to closed end of left-hand bucket cylinder replaces D140949

1шт.

24

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D127940

PIPE

TUBE, to closed end of right-hand bucket cylinder

1шт.

27

D127942

PIPE

TUBE, to closed end of left-hand bucket cylinder

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket, right-hand, for correct assembly and components, see Figure 8-118 or 8-119A

1шт.

31

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket, left-hand, for correct assembly and components, see Figure 8-118 or 8-119A

1шт.

32

D38648

BLOCK

INSULATOR rubber, tube clamp

2шт.

33

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #64, 3.56/4.50 Type F Worm

2шт.
