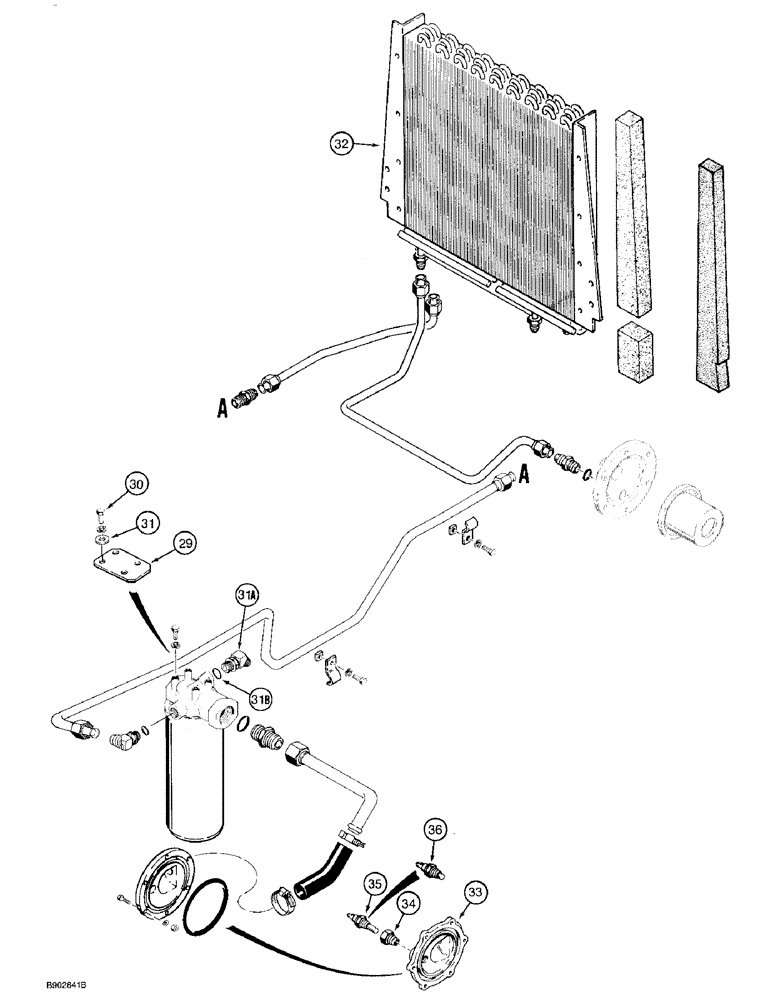

Запчасти Case 580SK (8-014) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES,AND FILTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
29
D150794
SPACER
PLATE spacer, filter
1шт.
equipment hydraulic system oil cooler lines, return lines, and filter
1шт.
30
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
hex, 3/8 NC x 1 inch
4шт.
equipment hydraulic system oil cooler lines, return lines, and filter
1шт.
31
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
flat, (13/32 x 13/16 x 1/16")
4шт.
equipment hydraulic system oil cooler lines, return lines, and filter
1шт.
31a
218-5529
ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC
45 deg, 3/4-16 flare x 9/16-18 inch adj O-ring boss, replaces Ref. 36 and 47 adapter and elbow on Figure 5-04 on some models, see Figure 5-04 for attaching parts, Includes: Ref. 31B
1шт.
equipment hydraulic system oil cooler lines, return lines, and filter
1шт.
32
A184190
COOLER
oil, heavy duty, power shuttle and equipment hydraulic oil, see Figure 6-04 for oil cooler mounting hardware, replaces Ref. 13 cooler on models with auxiliary hydraulics
1шт.
special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments
1шт.
33
D139268
SHOULDER
FLANGE return, replaces Ref. 22 flange on models with auxiliary hydraulics
1шт.
special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments
1шт.
34
221-88
REDUCER,Hex, 1/2" x 1/4" NPT
pipe, 1/2 male x 1/4 inch female, used with D70163 switch, if used
1шт.
special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments
1шт.
35
D70163
SWITCH,1/4" - 18 NPT, 230 Degrees F
oil temperature, attaches to main harness, used with Ref. 34 reducer, no longer used, order 1345488C2 switch, Ref. 36 and remove 221-1088 reducer, Ref. 34
1шт.
special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments
1шт.
36
1345488C2
PRESSURE SWITCH
SWITCH, 225 degree, oil temperature, attaches to main harness, replaces 1345488C1 235 degree switch
1шт.
special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments
1шт.
31b
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
equipment hydraulic system oil cooler lines, return lines, and filter
1шт.
Выбрано товаров: 20
