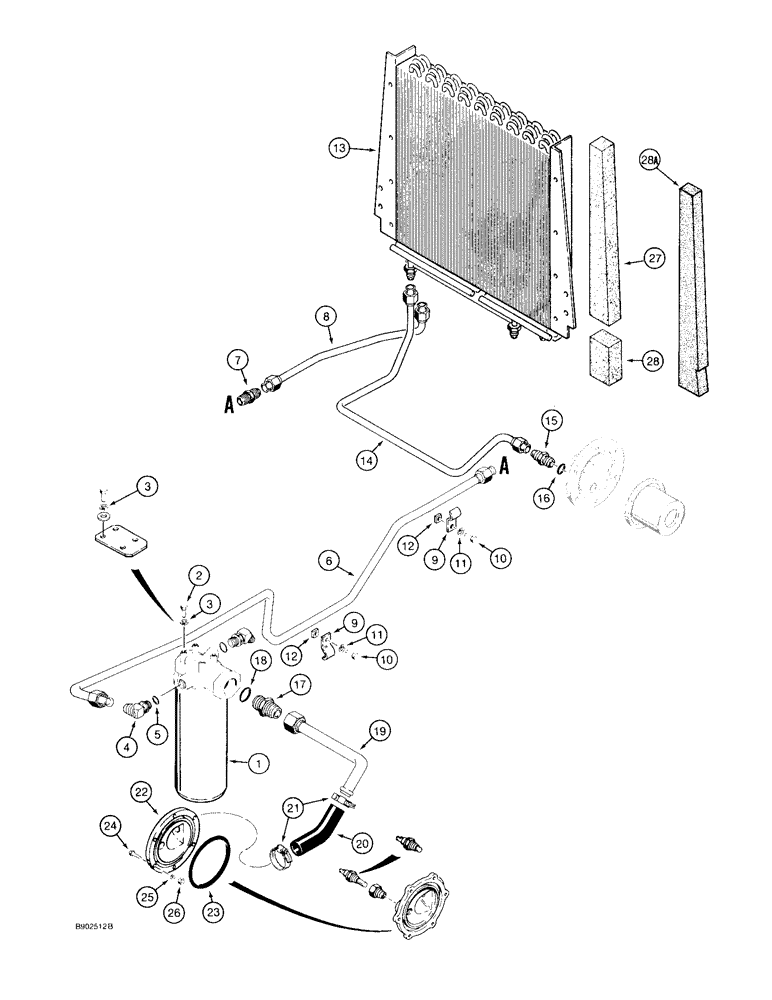

Запчасти Case 580SK (8-012) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES,AND FILTER (08) - HYDRAULICS

1

REF

INSTRUCTION

FILTER ASSEMBLY hydraulic oil, see Figure 8-114 for correct assembly and components, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used on models without spacer plate, Ref. 29 below, equipment hydraulic system oil cooler lines, return lines, and filter Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

3

492-11038

LOCK WASHER,3/8"

equipment hydraulic system oil cooler lines, return lines, and filter 3/8"

4шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, equipment hydraulic system oil cooler lines, return lines, and filter, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

6

D145954

TUBE ASSY.

TUBE oil filter to cooler inlet tube, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

7

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

8

D150995

TUBE

cooler inlet, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

9

D143430

CLAMP

tube, equipment hydraulic system oil cooler lines, return lines, and filter

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Equipment hydraulic system oil cooler lines, return lines, and filter Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

11

492-11038

LOCK WASHER,3/8"

equipment hydraulic system oil cooler lines, return lines, and filter 3/8"

2шт.

12

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC, equipment hydraulic system oil cooler lines, return lines, and filter

2шт.

13

A184542

COOLER, OIL

COOLER oil, power shuttle and equipment hydraulic oil, see Figure 6-04 for oil cooler mounting hardware, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

14

D147488

PIPE

TUBE cooler return to reservoir, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, equipment hydraulic system oil cooler lines, return lines, and filter, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

17

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER straight, 1-5/16-12 flare x 1-5/8-12 inch O-ring, return to tank, equipment hydraulic system oil cooler lines, return lines, and filter, Includes: Ref. 18

1шт.

18

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

19

D150518

TUBE

return to tank, replaces D145944 tube, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

20

D146034

HOSE

25 ID x 35 OD x 102 mm long, return, at tank inlet, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

21

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Equipment hydraulic system oil cooler lines, return lines, and filter #16, 0.81/1.50 Type F Worm

2шт.

22

D125694

FLANGE

reservoir, return, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

23

238-5425

O-RING,0.275" Thk x 4.475" ID, -425, Cl 5, 75 Duro

reservoir return flange, replaces T53326, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

24

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch, equipment hydraulic system oil cooler lines, return lines, and filter

6шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Equipment hydraulic system oil cooler lines, return lines, and filter 1/4"

6шт.

26

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC, equipment hydraulic system oil cooler lines, return lines, and filter

6шт.

27

D140840

FOAM

BAFFLE base size is 2-3/16, 55 x 17-3/4 inch, 450 mm, high, cut from D92228 bulk pad, see below, no longer available, replaced by 111996A1, Ref. 28A, equipment hydraulic system oil cooler lines, return lines, and filter

2шт.

These baffles are shown installed next to the oil cooler on models without air conditioner. On models with air conditioner they are installed next to the condenser coil, see Figure 9-158.

1шт.

28

D140841

FOAM

BAFFLE base size is 2-3/8, 60 x 3-15/16 inch, 100 mm, high, cut from D92228 bulk pad, see below, no longer available, replaced by 111996A1, Ref. 28A, equipment hydraulic system oil cooler lines, return lines, and filter

2шт.

These baffles are shown installed next to the oil cooler on models without air conditioner. On models with air conditioner they are installed next to the condenser coil, see Figure 9-158.

1шт.

28a

111996A1

BAFFLE

base size is 3-3/16, 81 x 24-39/64 inch, 625 mm, high, cut from D92228 bulk pad, see below, equipment hydraulic system oil cooler lines, return lines, and filter

2шт.

These baffles are shown installed next to the oil cooler on models without air conditioner. On models with air conditioner they are installed next to the condenser coil, see Figure 9-158.

1шт.

D92228

BAFFLE

bulk pad, 900 x 1400 x 38 mm, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.

345-44

ADHESIVE

spray can, for attaching foam pads to metal surfaces, purchase locally, equipment hydraulic system oil cooler lines, return lines, and filter

1шт.
