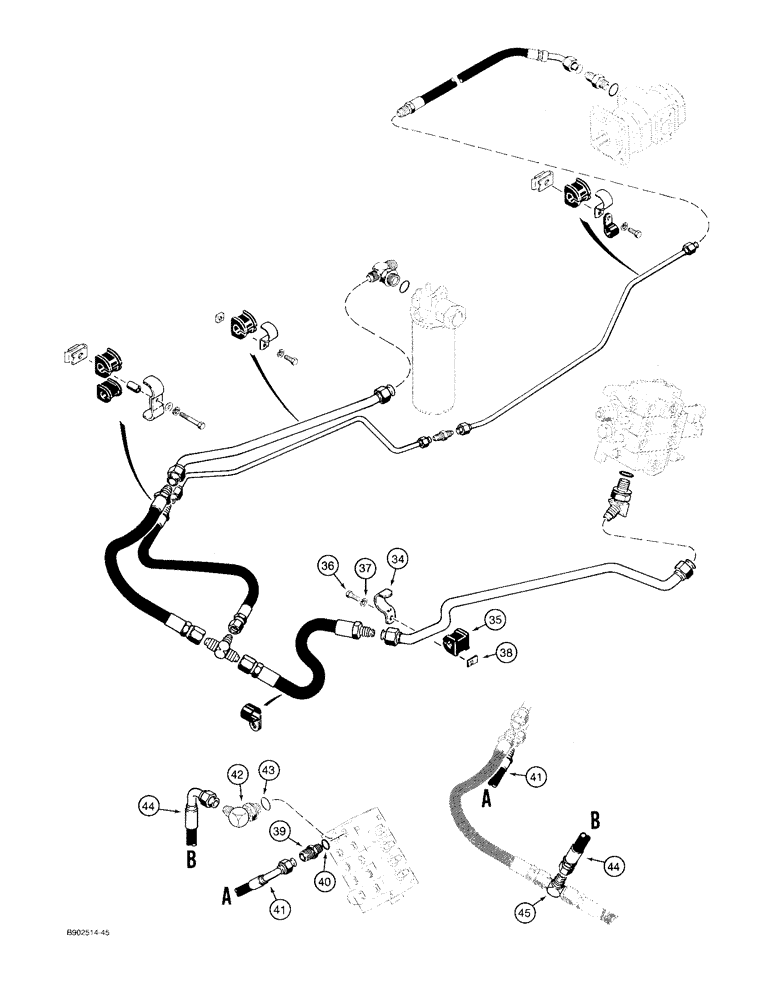

Запчасти Case 580SK (8-010) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT (08) - HYDRAULICS

34

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

power beyond tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

35

D67297

BLOCK

INSULATOR, 5/8 inch, tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, Equipment hydraulic system equipment pump to rear equipment lines models without backhoe - loader only

1шт.

37

492-11038

LOCK WASHER,3/8"

equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only 3/8"

1шт.

38

D122307

NUT

NUT U-type, 3/8 inch NC, special, special parts to adapt three-point hitch to loader models

1шт.

39

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, at hitch valve inlet port, upper, special parts to adapt three-point hitch to loader models, Incl. Ref. 40

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Special parts to adapt three-point hitch to loader models

1шт.

41

D150819

HOSE ASSY.

HOSE, 975 mm long, pressure, to hitch valve inlet, upper port, special parts to adapt three-point hitch to loader models

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, at hitch valve return port, lower, Incl. Ref. 43, special parts to adapt three-point hitch to loader models

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Special parts to adapt three-point hitch to loader models

1шт.

44

D141265

HOSE ASSY.

HOSE, 850 mm long, return from hitch valve outlet, lower port, special parts to adapt three-point hitch to loader models

1шт.

45

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, special parts to adapt three-point hitch to loader models

1шт.
