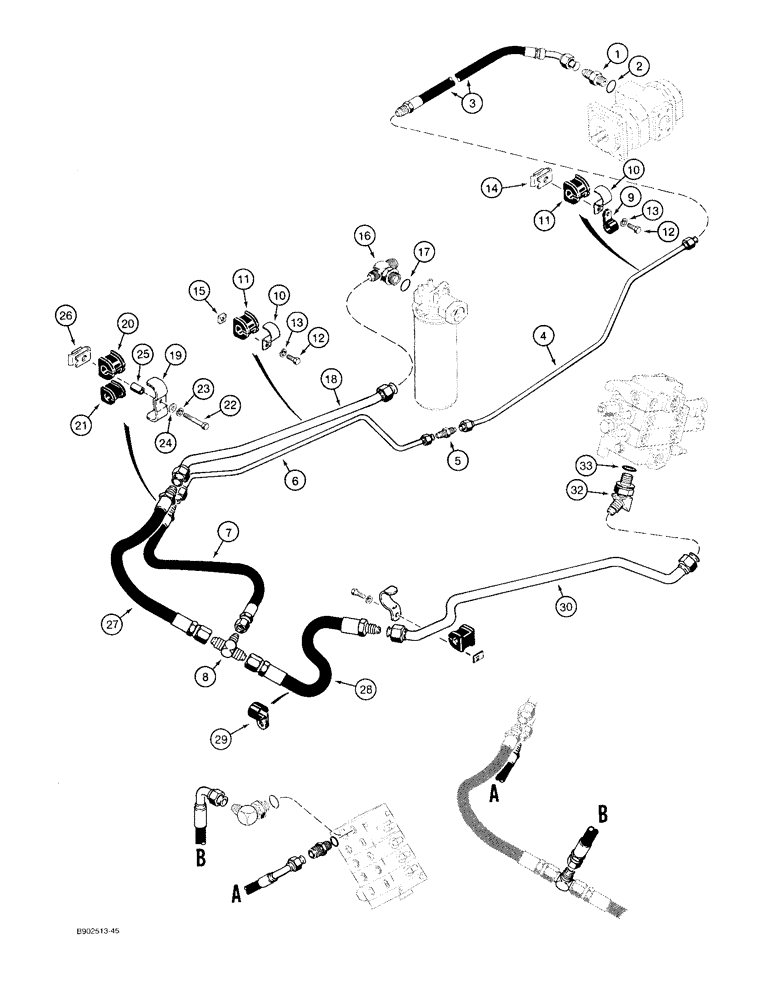

Запчасти Case 580SK (8-008) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES,MODELS W/BACKHOE-LOADER ONLY (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, small pump section outlet port, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

3

D140802

HOSE

513 mm long, small pump section outlet port, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

4

D149121

TUBE

small pump section hose to small pressure hose, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

6

D147923

TUBE ASSY.

TUBE pressure, small pump section tube to hose, lower left-hand side of chassis, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

7

D147937

HOSE

675 mm long, pressure, small pump section tube to return tee, models with rear counterweight, for models with three point hitch see Ref.41 and 44 on Figure 8-010, euqipment hydraulic system equipment pump to rear equipment lines models without bacho

1шт.

See Figure 8-006 for rear hydraulic tubes used on models with backhoe.

1шт.

8

218-588

TEE,37 Degree, 1 5/16"-12 x 7/8"-14, Br

7/8-14 flare branch x 1-5/16-12 inch flare x flare, use with Ref. 7 hose on models with rear counterweight, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

See Figure 8-006 for rear hydraulic tubes used on models with backhoe.

1шт.

9

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

tube, lower, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

10

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

2шт.

11

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, Equipment hydraulic system equipment pump to rear equipment lines models without backhoe - loader only

2шт.

13

492-11038

LOCK WASHER,3/8"

equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only 3/8"

2шт.

14

D122307

NUT

NUT U-type, 3/8 inch NC, special, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

15

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

16

218-5197

TEE,1 5/16"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

1-5/16-12 adj O-ring branch x fl x 1-1/16-12 inch fl, at hydraulic oil filter, Includes: Ref. 17, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

18

D147925

TUBE ASSY.

TUBE return to filter, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

See Figure 8-006 for rear hydraulic tubes used on models with backhoe.

1шт.

19

D143422

SHIN

CLAMP double tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

20

D67297

BLOCK

INSULATOR, 1 inch, return tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

21

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, pressure tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, Equipment hydraulic system equipment pump to rear equipment lines models without backhoe - loader only

1шт.

23

492-11038

LOCK WASHER,3/8"

equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only 3/8"

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), Equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

25

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

26

D122307

NUT

NUT U-type, 3/8 inch NC, special, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

27

D136968

HOSE

625 mm long, tee to return to filter tube, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

See Figure 8-006 for rear hydraulic tubes used on models with backhoe.

1шт.

28

D136966

HOSE

800 mm long, to tee, right-hand side of chassis, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

See Figure 8-006 for rear hydraulic tubes used on models with backhoe., euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

29

D34163

CLAMP

hose, uses existing transaxle hardware, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

30

D149899

PIPE

TUBE loader valve power beyond, used with two spool loader control valve, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

31

D147927

PIPE

TUBEloader valve power beyond, used with three spool loader control valve, not shown, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

32

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 33, euqipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Equipment hydraulic system equipment pump to rear equipment lines models without bachoe - loader only

1шт.
