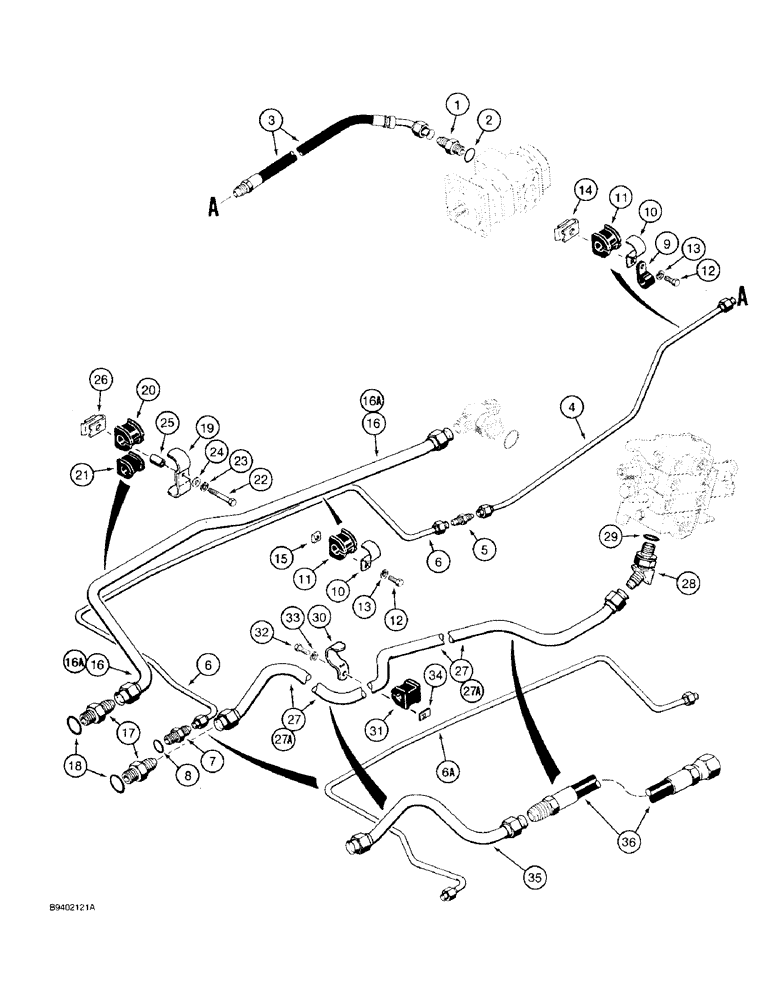

Запчасти Case 580SK (8-006) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES, MODELS WITH BACKHOE (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring, small pump section outlet port, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

D140802

HOSE

513 mm long, small pump section outlet port

1шт.

4

D149121

TUBE

small pump section hose to backhoe swing section inlet tube

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare

1шт.

6

D146225

TUBE

to backhoe control valve swing section inlet, prior to P.I.N. JJG0162204, if used

1шт.

6a

D150834

TUBE

to backhoe control valve swing section inlet, P.I.N. JJG0162204 and after, if used

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

tube, lower

1шт.

10

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

backhoe valve swing section inlet and return tubes

2шт.

11

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, tube

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

D122307

NUT

NUT U-type, 3/8 inch NC, special

1шт.

15

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

16

D150483

TUBE

backhoe return to filter, used with 6 spool backhoe control valve, replaces D145709 tube

1шт.

16a

D150488

TUBE

backhoe return to filter, used with 7 spool backhoe control valve, replaces D145711 tube

1шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 18

2шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

D143422

SHIN

CLAMP double tube

1шт.

20

D67297

BLOCK

INSULATOR, 1 inch, backhoe return tube

1шт.

21

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, backhoe swing section inlet tube

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

25

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

26

D122307

NUT

NUT U-type, 3/8 inch NC, special

1шт.

27

D149751

PIPE

TUBE, loader valve power beyond, to backhoe inlet section, 2 spool valve, production only, for service order Ref. 35, 122426A1, tube and Ref. 36, 122427A1, hose

1шт.

27a

D150478

TUBE ASSY.

TUBE, loader valve power beyond, to backhoe inlet section, 3 spool valve, production only, for service order Ref. 35, 122426A1, tube and Ref. 36, 122427A1, hose

1шт.

28

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

power beyond tube

1шт.

31

D67297

BLOCK

INSULATOR, 5/8 inch, tube

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

D122307

NUT

NUT U-type, 3/8 inch NC, special

1шт.

35

122426A1

TUBE

loader valve power beyond, to backhoe inlet section, service replacement, used with Ref.36, hose

1шт.

36

122427A1

HOSE ASSY.

HOSE, 1320 mm long, loader valve power beyond, to backhoe inlet section, service replacement, used with Ref. 35, tube

1шт.
