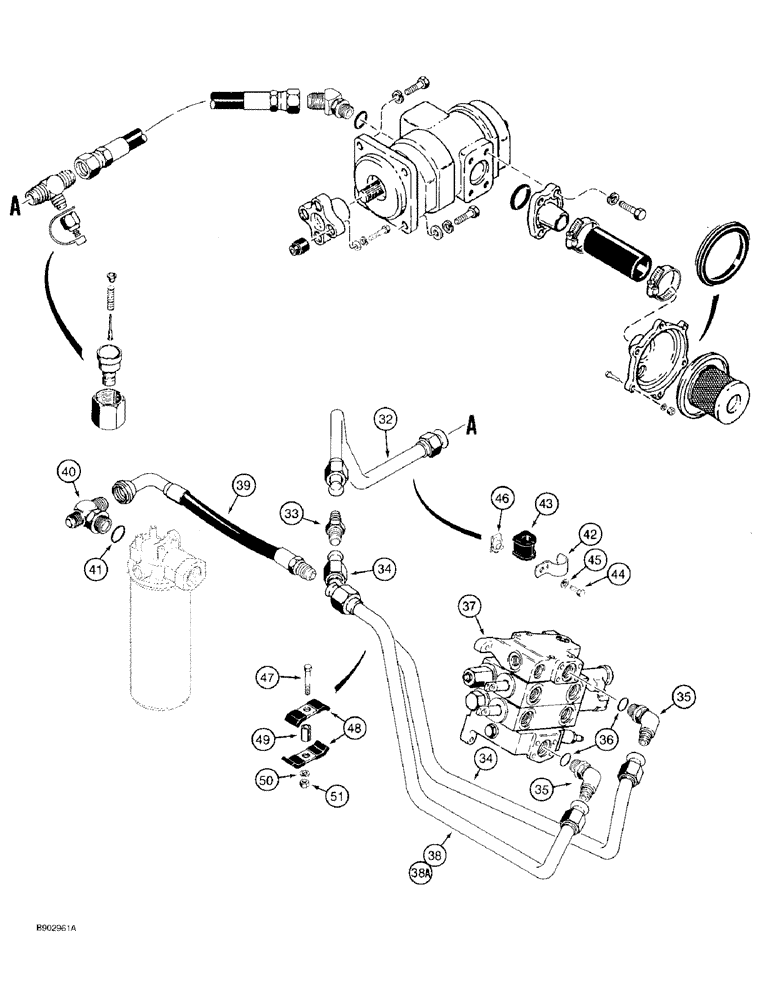

Запчасти Case 580SK (8-004) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL (08) - HYDRAULICS

32

D151009

TUBE

pump outlet, hose to loader valve, replaces D149123

1шт.

33

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR straight, 1-5/16-12 inch flare

1шт.

34

D145940

TUBE

pump outlet, at loader valve inlet

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 36

2шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

37

REF

INSTRUCTION

VALVE ASSEMBLY loader control, for correct assembly and components, see Figure 8-064 or 8-066

1шт.

38

D149754

TUBE

loader return, at loader valve outlet, two spool loader control valve

1шт.

38a

D145942

TUBE ASSY.

TUBE loader return, at loader valve outlet, three spool loader control valve

1шт.

39

D146132

HOSE ASSY.

HOSE, 405 mm long, loader return, loader valve, Serial Range: outlet-filter

1шт.

40

218-5197

TEE,1 5/16"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

1-5/16-12 adj O-ring branch x fl x 1-1/16-12 inch fl, at hydraulic oil filter fitting, Includes: Ref. 41

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

42

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1 inch, loader valve inlet tube

1шт.

43

D67297

BLOCK

INSULATOR tube

1шт.

44

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

45

492-11038

LOCK WASHER,3/8"

1шт.

46

D122307

NUT

NUT U-type, 3/8 inch NC, special

1шт.

47

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

48

D143846

CLAMP

- Tube

2шт.

49

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp

1шт.

50

492-11038

LOCK WASHER,3/8"

1шт.

51

425-106

NUT,3/8"-16, Cl 5

1шт.
