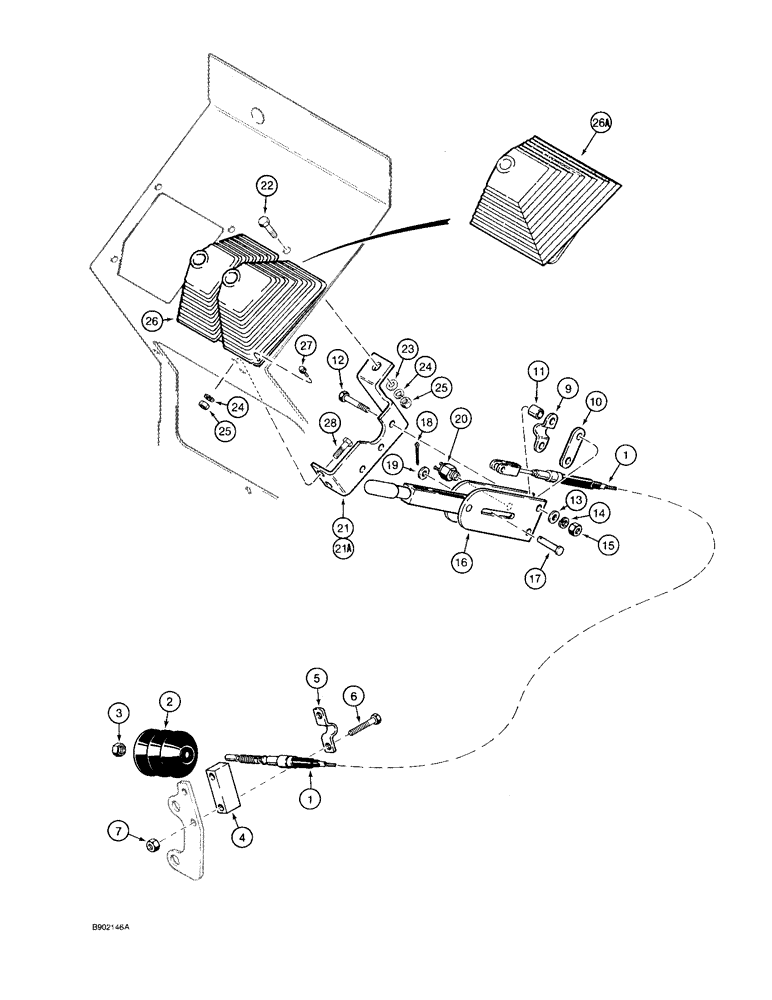

Запчасти Case 580SK (7-12) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES

1

D145877

CABLE

parking brake

1шт.

2

D141049

BOOT

parking brake cable

1шт.

3

829-1112

JAM NUT

hex, jam, 12 mm - 1.75

1шт.

4

A188027

SPACER

BLOCK spacer, brake cable mounting

1шт.

5

A188028

CLAMP

cable, rear

1шт.

6

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

D121608

CLAMP

parking brake cable

1шт.

10

D129747

PLATE

oval spacer, plated

1шт.

11

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

parking brake lever, front

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

D121555

LEVER ASSY.

LEVER ASSEMBLY parking brake, without bossed hole for audible warning alarm parking brake switch, for service order D139909 lever

1шт.

D139909

LEVER ASSY.

LEVER ASSEMBLY parking brake, with bossed hole for brake switch, replaces D121555 lever for service, Includes: Ref. 16 through 19

1шт.

16

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

17

D42458

PIN

clevis, lever to brake cable

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

20

D136514

SWITCH

parking brake, used on models with audible warning alarm

1шт.

See Figure 4-52 for other special parts used on models with audible warning alarm for water temperature, engine oil pressure, and parking brake.

1шт.

21

D146905

SUPPORT

BRACKET mounting, parking brake lever, with a 7/16 inch mounting hole for front drive axle control lever mounting, Ref. 5 and 12 on Figure 6-36, if used

1шт.

21a

102446A1

BRACKET

mounting, parking brake lever, with a 1/2 inch mounting hole for front drive axle control lever mounting, Ref. 24 and 25 on Figure 6-36, if used

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

D137465

BOOT

dual lever, parking brake and shift control levers, use on models with four wheel drive front axle, see Figure 6-36, Ref. 5, for shift control lever

1шт.

26a

D137466

BOOT

single lever, use on models with two wheel drive front axle

1шт.

27

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

28

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.
