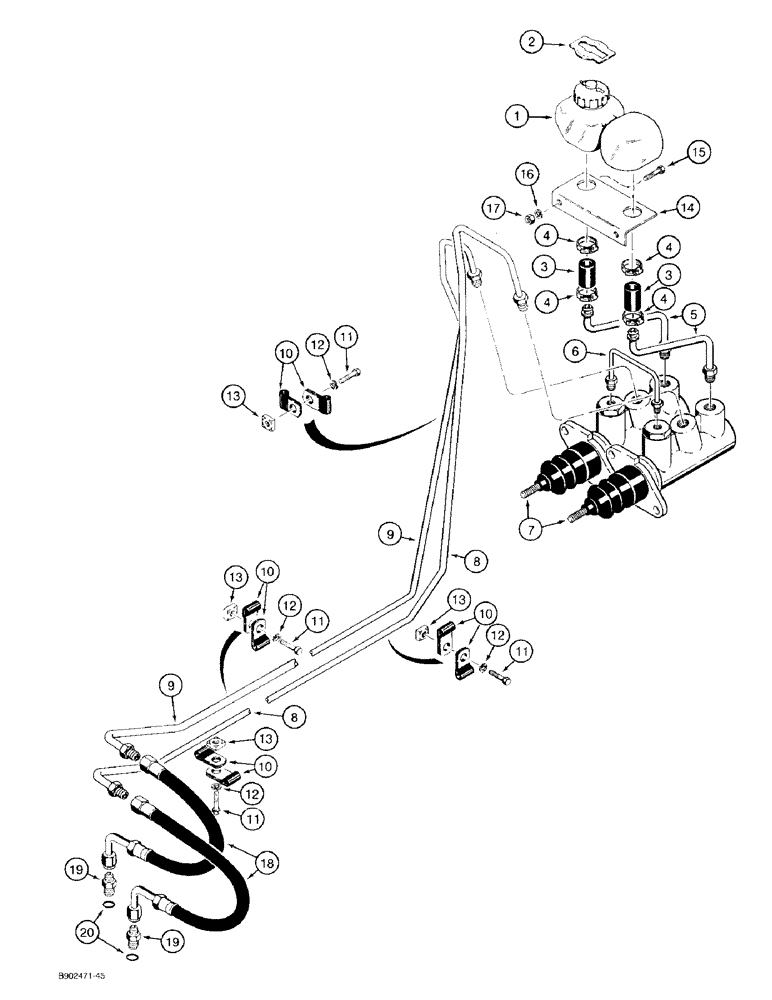

Запчасти Case 580SK (7-08) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

E46719

RESERVOIR

ASSEMBLY brake master cylinder, no longer available, order Ref. 1 and 2, Includes: Ref. 1 and 2

1шт.

1

E44082

RESERVOIR

brake master cylinder, includes cap, Replaced by K262942

1шт.

1

K262942

RESERVOIR

1шт.

2

E44062

TAG

reservoir fluid identification

1шт.

3

E44083

HOSE

13 mm ID x 30 mm long, Reservoir to tube, Cut to required length from D128279 bulk hose

2шт.

4

D140877

HOSE CLAMP,#6, 0.44/0.78 Type M Worm

CLAMP worm screw, includes hardware, reservoir hose

4шт.

5

D136854

TUBE

reservoir to master cylinder

2шт.

6

D136430

TUBE

crossover

1шт.

7

D143162

MASTER CYLINDER

CYLINDER ASSEMBLY master, parts list Figure 7-10

2шт.

8

D146723

PIPE ASSY.

TUBE brake, right-hand

1шт.

9

D146725

PIPE ASSY.

TUBE brake, left-hand

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

8шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

4шт.

14

D135229

BRACKET

brake reservoir support, Serial Range: attaches-firewall

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

D147572

HOSE,6.35mm ID x 385mm L

385 mm long, brake tube to transaxle brake actuator

2шт.

19

218-5088

HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB

ADAPTER straight, 7/16-20 flare x 1/2-20 inch O-ring boss, Includes: Ref. 20

2шт.

D128279

HOSE,12.7 mm ID x 100.00 mm, SAE 30R1

1шт.

20

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
