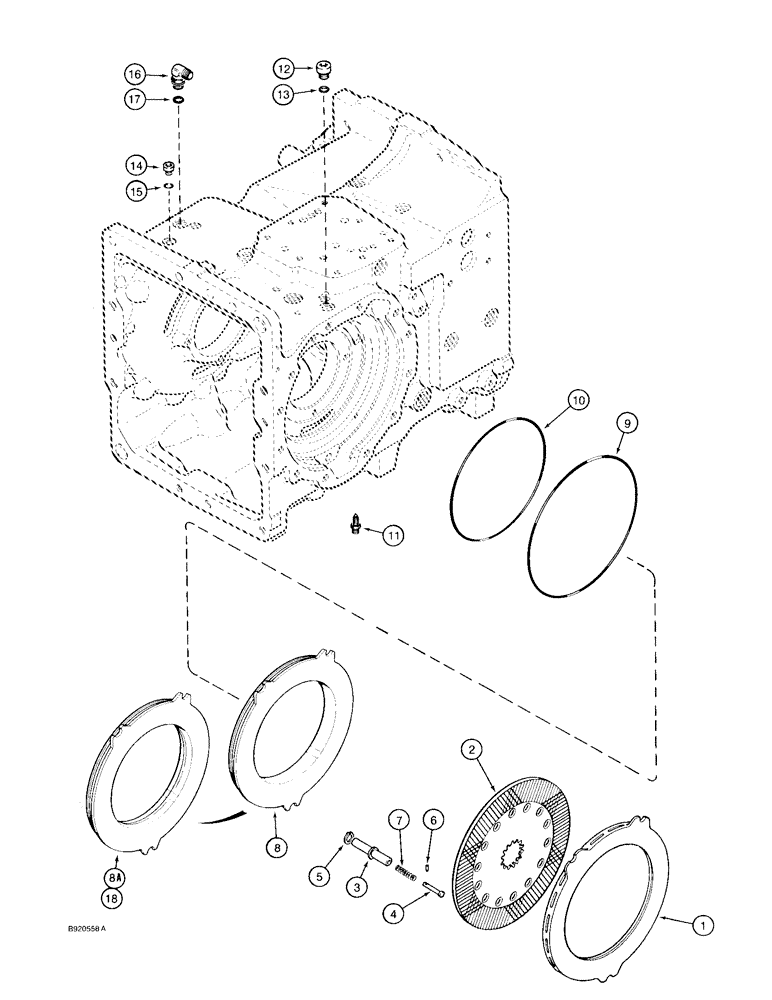

Запчасти Case 580SK (7-02) - TRANSAXLE ASSEMBLY, DIFFERENTIAL BRAKE (07) - BRAKES

1

1995365C1

PLATE

backing, brake, replaces A188736 plate

2шт.

2

A188412

PLATE

friction, brake

2шт.

1345810C1

DOWEL

TUBE ASSEMBLY brake adjuster, Includes: Ref. 3 through 7

6шт.

3

A186555

TUBE

brake adjuster

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER brake adjuster

1шт.

5

100-1462

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

6

NSS

NOT SOLD SEPARAT

PIN brake adjuster

1шт.

7

A190295

SPRING

piston return

1шт.

8

1341069C1

PISTON

brake, without internal groove, no longer used, order 1995361C1 piston, Ref. 8A

2шт.

8a

1995361C1

PISTON

brake, with internal groove, see Ref. 18 for service replacement on transaxles with damage to brake piston bores

2шт.

9

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

Brake piston (Replaces A178873 O-ring) -277, 70 Duro, 11.484" ID x .139" Thk

2шт.

10

238-5273

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

Brake piston (Replaces A178874 O-ring) -273, 70 Duro, 9.734" ID x .139" Thk

2шт.

11

A188637

BLEEDER

VALVE brake bleeder

2-4шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 13 Hex Soc, 3/4"-16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

87035062

PLUG,Hex, 1/2"-20 ORB

Includes Ref. 15 Hex Soc, 1/2"-20 ORB

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

121039A1S

PISTON

brake, oversize with internal grove, use as service replacement for Ref. 8, 1341069C1, or item 8A, 1995361C1, pistons on transaxles that have incurred damage to brake piston bores

2шт.

15

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
