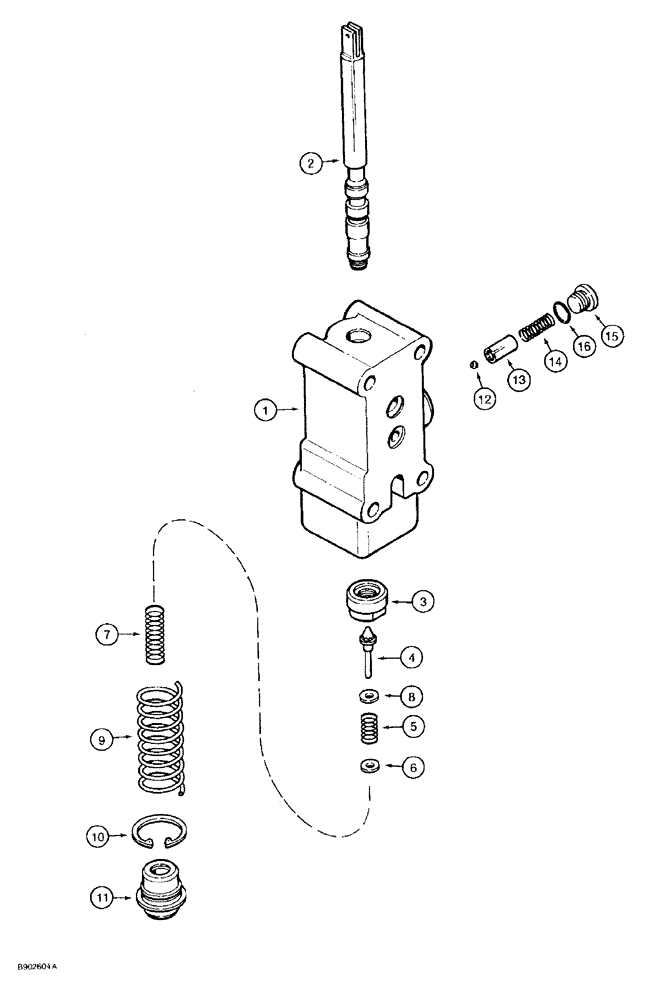

Запчасти Case 580SK (6-84) - TRANSAXLE ASSEMBLY, PTO CONTROL VALVE (06) - POWER TRAIN

1971419C3

VALVE

ASSEMBLY PTO control, Includes: Ref. 1 through 16

1шт.

1

G110344

VALVE BODY

BODY PTO control valve

1шт.

2

1957880C3

SPOOL

ASSEMBLY PTO control valve, Includes: Ref. 3

1шт.

3

1957864C2

STOP

spool

1шт.

4

G108809

VALVE POPPET

POPPET valve

1шт.

5

G110335

SPRING

modulator

1шт.

6

G108810

WASHER

poppet

1шт.

7

G108816

SPRING

primary, modulator

1шт.

8

G108811

WASHER,8mm ID x 14.27mm OD x 1.65mm Thk

poppet

1шт.

9

G110342

SPRING

return

1шт.

10

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , cap 1.375", Int, #137

1шт.

11

G108808

CAP

end

1шт.

12

211-206

BALL,1/4" Dia

1/4 inch, grade 25, chrome alloy steel

1шт.

13

1341948C3

GUIDE

detent

1шт.

14

1341952C1

SPRING

detent

1шт.

15

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 16 Hex Soc, 9/16"-18 ORB

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
