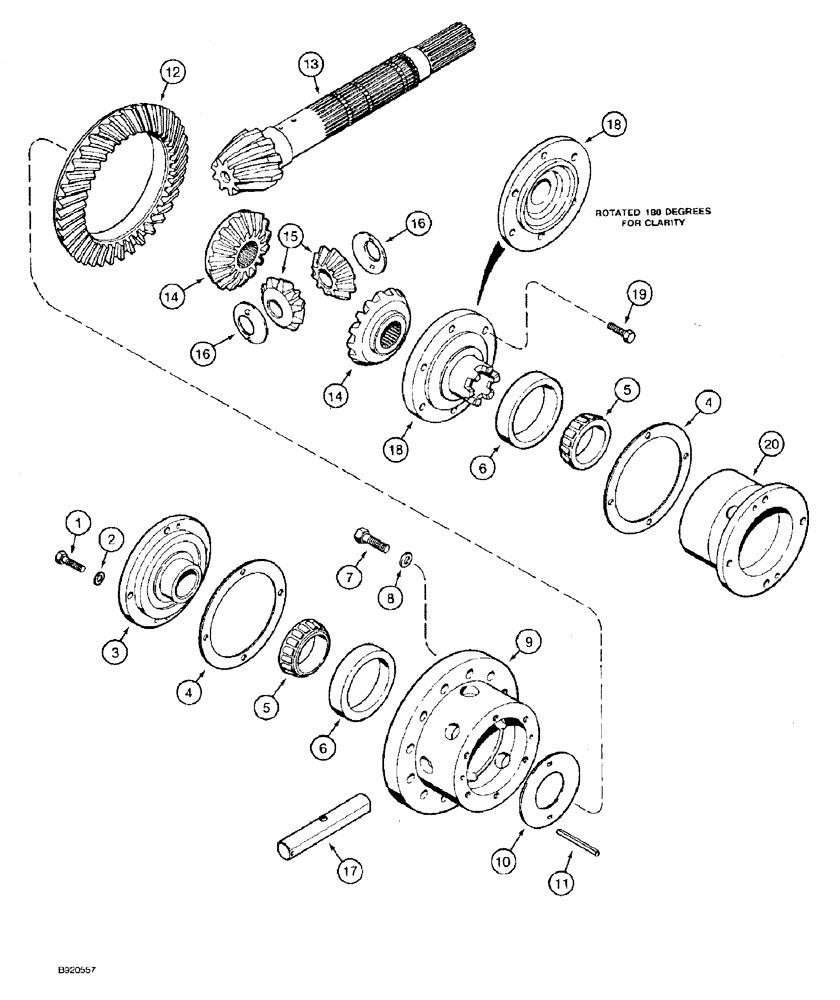

Запчасти Case 580SK (6-74) - TRANSAXLE ASSY,TRANSAXLE DIFF, TRANSAXLE SN JKA0202074 AND AFTER (06) - POWER TRAIN

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

2

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

hardened

8шт.

3

1345865C1

DIFF CARRIER & GEARS

CARRIER bearing, differential, left-hand

1шт.

4

A175236

SHIM,0.08mm Thk

Bearing carrier (0.003") 0.08mm Thk

1шт.

4

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

Bearing carrier (0.007") 0.18mm Thk

1шт.

4

A175238

SHIM,0.25mm Thk

Bearing carrier (0.010") 0.25mm Thk

1шт.

4

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

Bearing carrier (0.025") 0.63mm Thk

1шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

BEARING tapered roller, replaces ST2007A

2шт.

6

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP tapered roller bearing, replaces 13363D

2шт.

7

826-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

hex, 12 - 1.75 x 45 mm, class 10.9

12шт.

8

396-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

9

1345864C1

CASE

CARRIER differential, flanged half, with internal groove

1шт.

10

A183870

WASHER, THRUST

WASHER thrust, flat, replaces 1345640C1

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

11

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

PIN, LOCK, (Replaces 138-147 pin) 1/4" x 3 1/4", Slotted

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

A190330

GEAR, BEVEL

GEAR ASSEMBLY ring and pinion, matched set, includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

13

NSS

NOT SOLD SEPARAT

PINION bevel

1шт.

14

1345894C1

GEAR

side, 16 teeth

2шт.

Part of differential service kit P/N 1345909C1.

1шт.

15

A188633

GEAR

pinion, 10 teeth

2шт.

Part of differential service kit P/N 1345909C1.

1шт.

16

1345639C1

THRUST WASHER

WASHER thrust, spherical

2шт.

Part of differential service kit P/N 1345909C1.

1шт.

17

1345893C1

PIN,28.57mm OD x 171mm L

differential spider

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

18

129905A1

CASE

CARRIER bearing, right-hand, replaces 1345866C1 carrier

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

19

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

20

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER differential, right-hand

1шт.

1345909C1

KIT

differential service, Includes: Ref. 10, 11 and 14 - 18

1шт.
