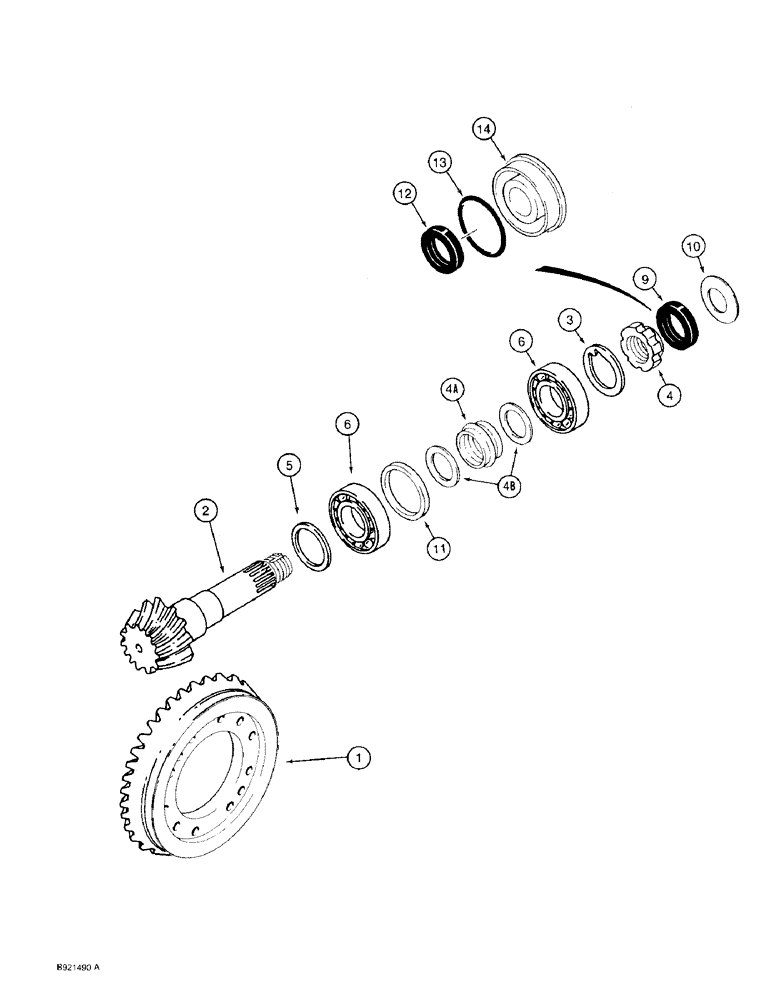

Запчасти Case 580SK (6-60) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY front drive, Carraro No. 127085, parts list Figures 6-42 - 6-60, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, purchase separately, if used

1шт.

See Figure 6-58 for ring and pinion gear set used on D146847 axle.

1шт.

127767A1

AXLE

ASSEMBLY front drive, Carraro No. CAV91-767, parts list Figures 6-42 - 6-60, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, replaces 109937A1 axle, if used, Includes: Ref. 1 through 14, P/N D150216 and P/N D149266

1шт.

See Figure 6-58 for ring and pinion gear set used on D146847 axle.

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

CASD150216

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY front dive axle, also includes Ref. 7-9 on Figure 6-42 and Ref. 1-15 on Figure 6-56, Includes: Ref. 1 through 14 and P/N D149266

1шт.

D149266

GEAR, BEVEL

GEAR set, ring and pinion, includes Ref. 1 - 4B and 11, Includes: Ref. 1 through 4B

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

K261065

LOCK WASHER

special, replaces N7536

1шт.

4

K261014

RING NUT,M40 x 1.5

RING nut, pinion gear, replaces K261852 ring

1шт.

4a

1349058C1

SPACER

collapsible

1шт.

4b

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

spacer

2шт.

5

K965280

SHIM,2.50mm Thk

1шт.

5

K965282

SHIM,2.60mm Thk

1шт.

5

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

5

K965286

SHIM,2.85mm Thk

1шт.

5

K965288

SHIM,2.90mm Thk

1шт.

5

K965290

SPACER

SHIM 3.00 mm thick

1шт.

5

K965292

SHIM,3.10mm Thk

1шт.

5

K965294

SHIM,3.20mm Thk

1шт.

5

K965296

SHIM,3.30mm Thk

1шт.

5

K965298

SHIM,3.40mm Thk

1шт.

6

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

9

D149731

OIL SEAL,16mm W, 35mm ID x 52mm OD

SEAL oil, used with Ref. 10, D149732 cover, no longer available, order iRef. 12, K262143 seal, 13, 238-5152 O-ring and 14, 128570A1 cover

1шт.

10

D149732

SHROUD

COVER differential, does not require an O-ring, used with Ref. 9, D149731 seal, if used

1шт.

11

N14405

SPACER

bearing cup, included with D149266 gear set

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil, used with Ref.14, 128570A1 cover

1шт.

13

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

used with Ref. 14, 128570A1 cover -152, 70 Duro, 3.237" ID x .103" Thk

1шт.

14

128570A1

FLANGE

COVER differential, used with Ref. 12, K262143 oil seal and 3, 238-5152 O-ring

1шт.

M20704

ADHESIVE

SEALANT - 3 oz, 89 ml, of sealant in a tube, differental cover to differential carrier, not shown, order B17575

1шт.
