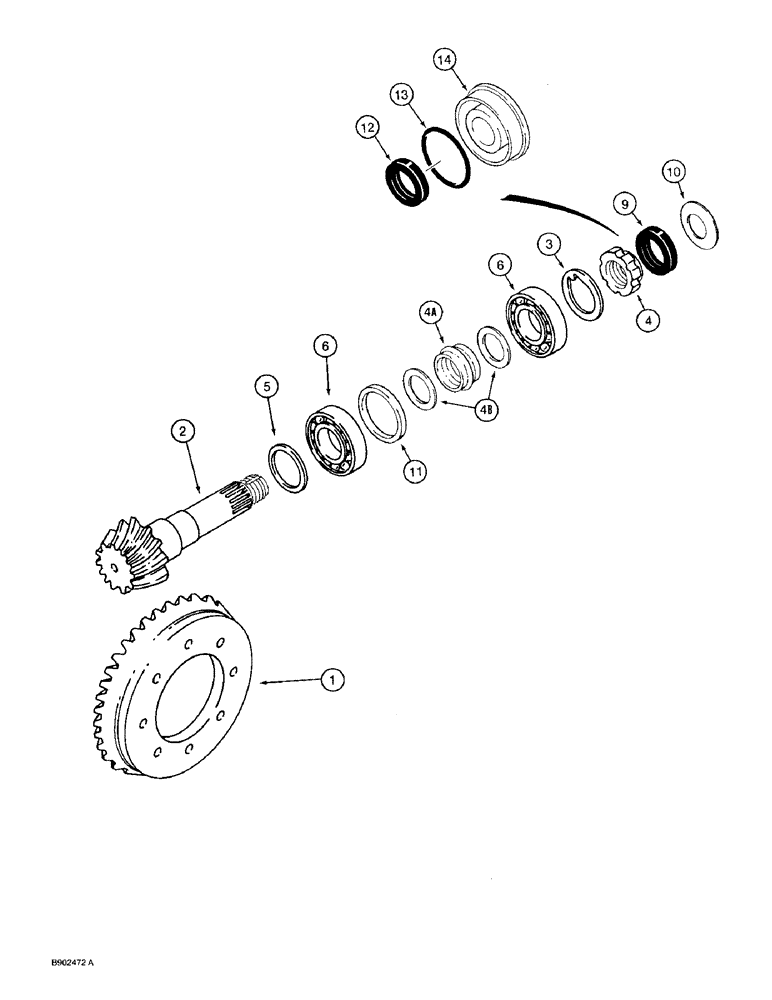

Запчасти Case 580SK (6-58) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

1

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle, Includes: Ref. 1 through 14 and D149266

1шт.

See Figure 6-60 for ring and pinion gear set used on D149673, 109937A1 or 127767A1 axle.

1шт.

D149266

GEAR, BEVEL

GEAR SET ring and pinion, includes Ref. 1 - 4B and 11, Includes: Ref. 1 through 4B 11/32

1шт.

refer P/N d149266 gear set, Ref. 11, n14405 spacer is not included per print, this catalog is in error

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential, replacement gear ring may look like Ref. 1 ring, shown on Figure 6-60

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

GEAR IS NOT AS ILLUSTRATED. THE THREADS ARE INSIDE THE SPLINES, NOT AT THE END OF THE GEAR.

1шт.

3

K261065

LOCK WASHER

special, replaces N7536

1шт.

4

K261014

RING NUT,M40 x 1.5

RING nut, pinion gear, replaces K261852 ring

1шт.

4a

1349058C1

SPACER

collapsible

1шт.

4b

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

spacer

2шт.

5

K965280

SHIM,2.50mm Thk

1шт.

5

K965282

SHIM,2.60mm Thk

1шт.

5

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

5

K965286

SHIM,2.85mm Thk

1шт.

5

K965288

SHIM,2.90mm Thk

1шт.

5

K965290

SPACER

SHIM 3.00 mm thick

1шт.

5

K965292

SHIM,3.10mm Thk

1шт.

5

K965294

SHIM,3.20mm Thk

1шт.

5

K965296

SHIM,3.30mm Thk

1шт.

5

K965298

SHIM,3.40mm Thk

1шт.

6

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

9

D149731

OIL SEAL,16mm W, 35mm ID x 52mm OD

SEAL oil, used with Ref. 10, D149732 cover, no longer available, order Ref. 12, K262143 seal, 13, 238-5152 O-ring and 14, 128570A1 cover

1шт.

10

D149732

SHROUD

COVER differential, does not require an O-ring, used with Ref. 9, D149731 seal, if used

1шт.

11

N14405

SPACER

bearing cup, included with D149266 gear set

1шт.

refer P/N d149266 gear set, Ref. 11, n14405 spacer is not included per print, this catalog is in error

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil, used with Ref. 14, 128570A1 cover

1шт.

13

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

used with Ref. 14, 128570A1 cover -152, 70 Duro, 3.237" ID x .103" Thk

1шт.

14

128570A1

FLANGE

COVER differential, used with Ref. 12, K262143 oil seal and 13, 238-5152 O-ring

1шт.

M20704

ADHESIVE

SEALANT, 3 oz, 89 ml, of sealant in a tube, differental cover to differential carrier, not shown, order B17575

1шт.
