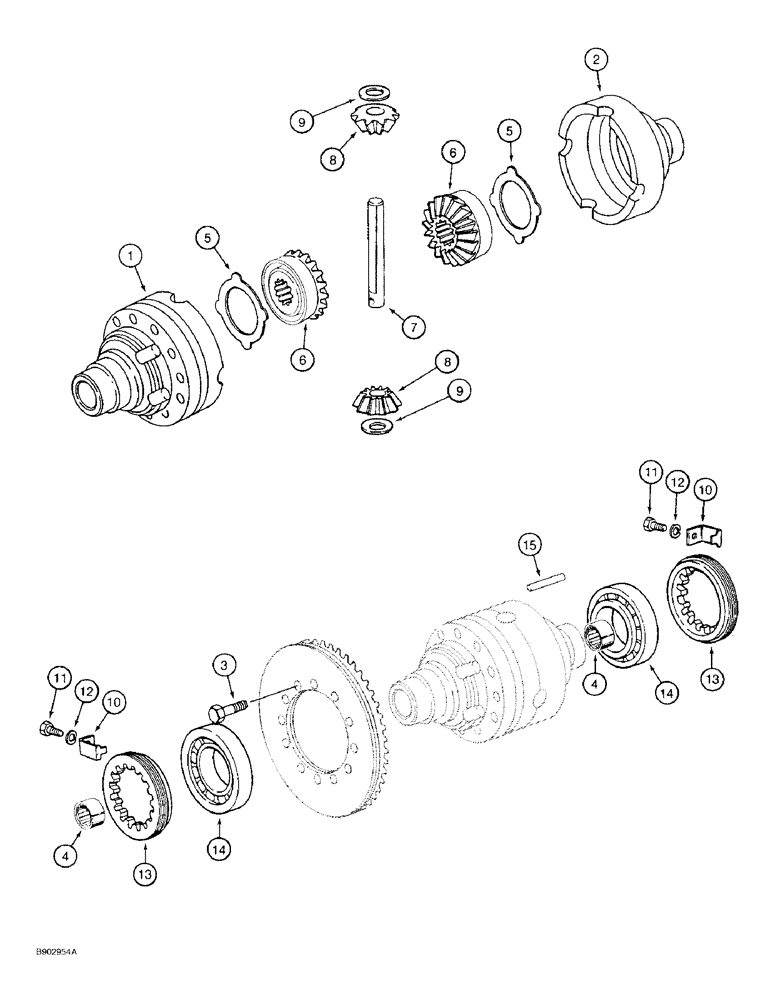

Запчасти Case 580SK (6-56) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY front drive, Carraro No. 127085, parts list Figures 6-42 - 6-60, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, purchase separately, if used

1шт.

See Figure 6-54 for differential used on D146847 axle.

1шт.

Carraro No. 127085, parts list Figures 6-42 - 6-60, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, purchase separately, if used

1шт.

127767A1

AXLE

ASSEMBLY front drive

1шт.

See Figure 6-54 for differential used on D146847 axle.

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

Carraro No. CAV91-767, parts list Figures 6-42 - 6-60, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, replaces 109937A1 axle, if used, Includes: Ref. 1 through 15, P/N D150216, P/N 150215 and P/N 109686A1

1шт.

D150216

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - front drive axle, also includes Ref. 7-9 on Figure 6-42 and Ref. 1-11 on Figure 6-60, Includes: Ref. 1 through 15, P/N 150215 and 109686A1

1шт.

D150215

HOUSING ASSY.

HOUSING ASSEMBLY differential, with bushings, no longer available, order 109686A1 housing

1шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY differential, without bushings, Ref. 4 bushing not used with this assembly, Includes: Ref. 1 through 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

1967625C1

BUSHING

D150215 housing

2шт.

5

1967003C1

THRUST WASHER

WASHER thrust, differential housing, replaces N13618 washer

2шт.

6

N14407

GEAR

side, differential

2шт.

7

K395087

SHAFT

- Pinion gear

1шт.

8

N14408

SUN GEAR

GEAR pinion, differential

2шт.

9

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

2шт.

10

K261869

LOCK

BRACKET lock

2шт.

11

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

Replaces K261871 bolt Hex, M6 x 12, 8.8

2шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Replaces K261870 Washer M6

2шт.

13

1966559C1

NUT

RING, LOCKING, Replaces K261868 ring

2шт.

14

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

15

K395086

PIN

dowel

1шт.

M20704

ADHESIVE

SEALANT, 3 oz, 89 ml, of sealant in a tube, bolt to differental housing, not shown, order B17575

1шт.
