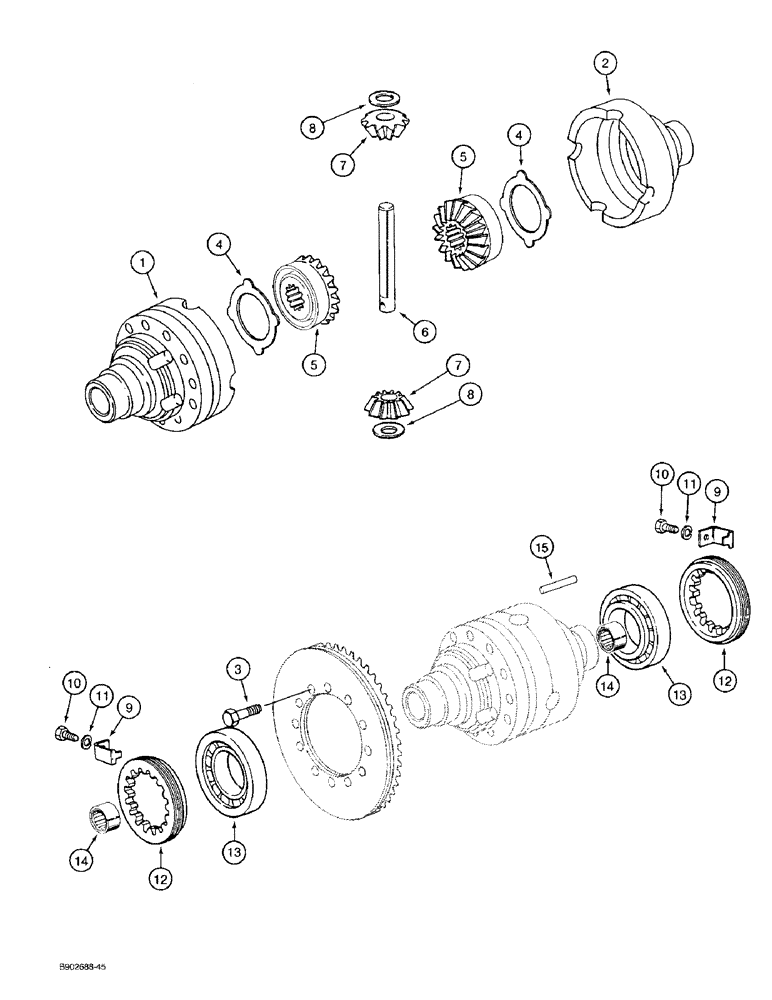

Запчасти Case 580SK (6-54) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle, see Figure 6-42 for axles, Includes: Ref. 1 through 15 and P/N 109686A1

1шт.

See Figure 6-56 for differential used on D149673, 109937A1 or 127767A1 axle.

1шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY differential, replaces 1349056C1 housing, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

1967003C1

THRUST WASHER

WASHER thrust, differential housing, replaces N13618 washer

2шт.

5

N14407

GEAR

side, differential

2шт.

6

K395087

SHAFT

- Pinion gear

1шт.

7

N14408

SUN GEAR

GEAR pinion, differential

2шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

2шт.

9

K261869

LOCK

BRACKET lock

2шт.

10

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

Replaces K261871 bolt Hex, M6 x 12, 8.8

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Replaces K261870 Washer M6

2шт.

12

1966559C1

NUT

RING, LOCKING, Replaces K261868 ring

2шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

14

1967625C1

BUSHING

housing

2шт.

15

K395086

PIN

dowel

1шт.

M20704

ADHESIVE

SEALANT, 3 oz, 89 ml, of sealant in a tube, bolt to differental housing, not shown, order B17575

1шт.
