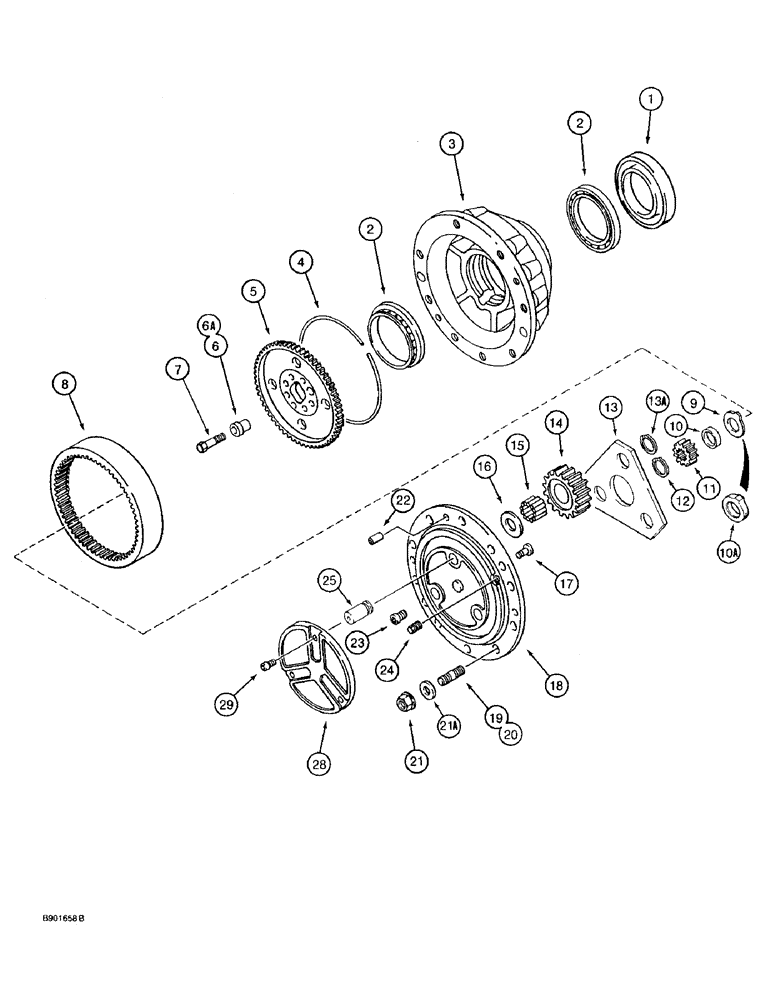

Запчасти Case 580SK (6-50) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle, see Figure 6-52 for axle, Includes: Ref. 1 through 29

1шт.

See Figure 6-52 for planetary used on D149673, 109937A1 or 127767A1 axle assembly.

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

oil, hub, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING ball, hub

4шт.

3

K395123

HUB

wheel attaching

2шт.

4

H437679

RING, SNAP

RING lock

2шт.

5

H437678

RING, FLYWHEEL

HUB ring gear

2шт.

6

107071A1

BUSHING

- Centering, 20 mm OD, Replaces K395105)

6шт.

6a

107072A1

CENTERING RING

BUSHING, 24 mm OD, centering, replaces K395104 bushing

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

8шт.

8

H437677

GEAR, RING

GEAR ring, planetary

2шт.

9

K395115

WASHER

tab locking, special, used with Ref. 10 spacer, if used

2шт.

10

K395121

SPACER

pinion gear, used with Ref. 9 washer, no longer available, order 107073A1

2шт.

10a

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER pinion gear, one piece part, replaces Ref. 9 and 10 on some models

2шт.

11

K395114

GEAR

pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING snap, pinion gear retaining

2шт.

13

K395122

PLATE

WASHER thrust, pinion gear, inner

2шт.

13a

K395028

RING, SNAP

RING snap

6шт.

14

K395110

GEAR

pinion, planetary

6шт.

15

119685A1

NEEDLE BEARING

BEARING needle, planetary gear, replaces K395092

180шт.

Package quantity 1 contains 10 bearings

1шт.

16

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN lock, planetary cover

2шт.

18

K395111

PINION CARRIER

COVER planetary, no longer available, order K262251 and N13515, Ref. 18A and 20

2шт.

18a

K262251

PINION CARRIER

COVER planetary, not shown

2шт.

19

K260218

STUD

special, without collar

12шт.

20

N13515

STUD

special, with collar, for recessed bolt holes

4шт.

21

K395089

WHEEL NUT

hex, special, wheel mounting

16шт.

21a

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

lock, special, wheel mounting

16шт.

22

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

23

K395029

SCREW

special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

K395124

SHAFT

pinion gear

6шт.

28

K395135

COVER

PLATE planetary cover

2шт.

SEE ECN H93SR54. EFFECTIVE WITH AXLE SERIAL NUMBERS WA1368 AND WP1368, CARRARO REMOVED COVER AND SCREWS FROM PLANETARY'S AND REPLACED THE SCREWS WITH PLUGS. THE NEW PLUGS CAN BE USED PRIOR TO THESE AXLE S/N BREAKS. PLUG IS 138866A1 SIX PER. ALSO EFF. WITH AXLE S/N WA1219 AND WP1218, THE COMBINATION OF 2 892-11006 6 mm LOCKWASHERS AND 2 614-6012 BOLTS, NOT SHOWN, WERE REPLACED BY 2 PCS OF 112486A1 SELF-LOCKING BOLT. ALL OLD PARTS ARE RETAINED FOR SERVICE FOR MACHINES WITH AXLES BUILT PRIOR TO THE ABOVE S/

1шт.

29

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate, Replaces K395082 screw Hex Soc Flat Hd, M8 x 20, 10.9

6шт.

SEE ECN H93SR54. EFFECTIVE WITH AXLE SERIAL NUMBERS WA1368 AND WP1368, CARRARO REMOVED COVER AND SCREWS FROM PLANETARY'S AND REPLACED THE SCREWS WITH PLUGS. THE NEW PLUGS CAN BE USED PRIOR TO THESE AXLE S/N BREAKS. PLUG IS 138866A1 SIX PER. ALSO EFF. WITH AXLE S/N WA1219 AND WP1218, THE COMBINATION OF 2 892-11006 6 mm LOCKWASHERS AND 2 614-6012 BOLTS, NOT SHOWN, WERE REPLACED BY 2 PCS OF 112486A1 SELF-LOCKING BOLT. ALL OLD PARTS ARE RETAINED FOR SERVICE FOR MACHINES WITH AXLES BUILT PRIOR TO THE ABOVE S/

1шт.

In later pin units for Ref. 29 instead of a screw, there is a rubber plug part no. 138866a1.

1шт.

M20704

ADHESIVE

SEALANT, 3 oz, 89 ml, of sealant in a tube, planetary cover to hub, not shown, order B17575

1шт.
