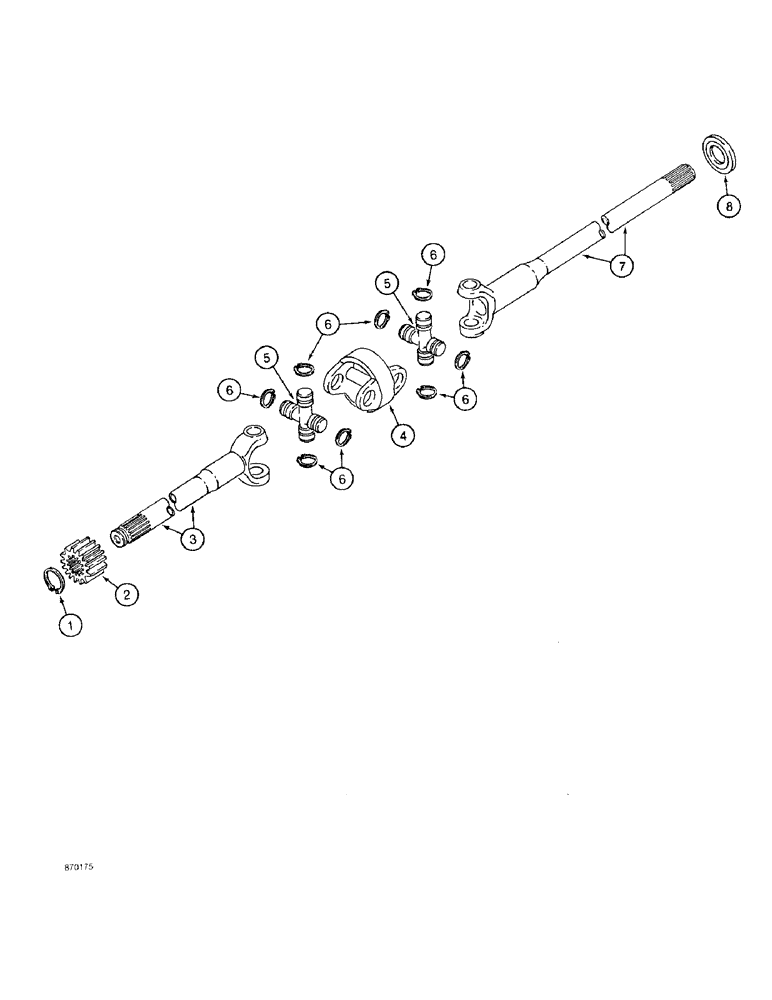

Запчасти Case 580SK (6-48) - FRONT DRIVE AXLE, AXLE SHAFTS (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle

1шт.

D149673

AXLE

ASSEMBLY front drive, Carraro No. 127085, parts list Figures 6-42 - 6-58, does not include hydraulic fittings at steering cylinder, items 4 and 16 on Figure 6-38, purchase separately, if used

1шт.

127767A1

AXLE

ASSEMBLY front drive, Carraro No. CAV91-767, parts list Figures 6-42 - 6-60, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, replaces 109937A1 axle, if used, Includes: Ref. 1 through 8

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

1

K261897

RING, SNAP

RING snap, axle shaft

2шт.

2

K395114

GEAR

pinion, axle shaft

2шт.

3

N14409

SHAFT

axle, wheel side, short

2шт.

4

N14412

BODY

connecting

2шт.

5

N14411

U-JOINT SPIDER

JOINT universal, axle shaft, cross

4шт.

6

N14410

RING

snap, universal joint

16шт.

7

D149735

SHAFT

axle, differential side, long

2шт.

8

1966164C1

OIL SEAL

SEAL oil, axle shaft, replaces K395103

2шт.
