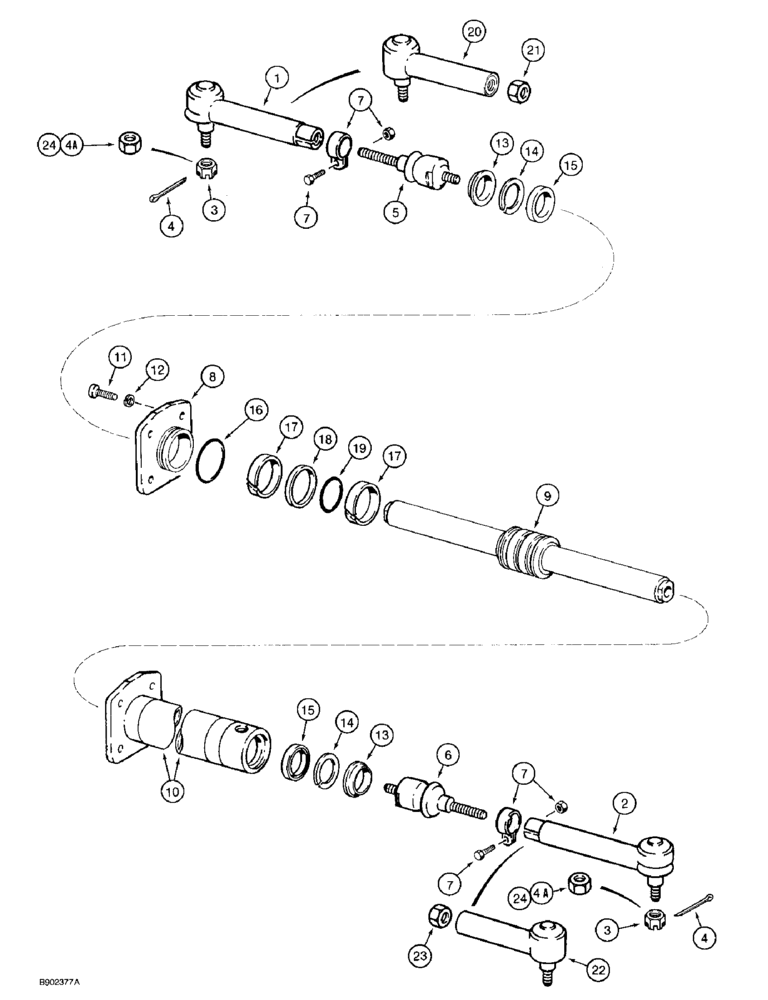

Запчасти Case 580SK (6-46) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle

1шт.

D149673

AXLE

ASSEMBLY front drive, Carraro No. 127085, parts list Figures 6-42 - 6-58, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, purchase separately, if used

1шт.

127767A1

AXLE

ASSEMBLY front drive, Carraro No. 128732, parts list Figures 6-42 - 6-60, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, replaces 109937A1 axle, if used, Includes: Ref. 1 through 24, P/N D149730 and P/N D149728

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

D149730

BALL JOINT

JOINT ASSEMBLY ball, left-hand, Includes: Ref. 1, 3 and 4, no longer available, order Ref. 20 ball joint, 21 and 24 nuts

1шт.

D149728

BALL JOINT

JOINT ASSEMBLY ball, right-hand, Includes: Ref. 2 - 4, no longer longer available, order Ref. 22 ball joint, 23 and 24 nuts, Includes: Ref. 1 through 4A

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT ball, left-hand, used with Ref. 7, D142924 clamp

1шт.

2

NSS

NOT SOLD SEPARAT

JOINT ball, right-hand, used with Ref. 7, D142924 clamp

1шт.

3

N14380

JAM NUT

hex, slotted, 20 x 1.5 mm, ball joint, if used

1шт.

4

733-4036

COTTER PIN,M4 x 36

PIN cotter, 4 x 36 mm, used with Ref. 3, N14380 nut, replaces 632-656 pin

1шт.

4a

107070A1

LOCK NUT

NUT self-locking, 20 x 1.5 mm, ball joint, if used

1шт.

5

N14388

BALL JOINT

ROD tie, steering, adjuster, left-hand

1шт.

6

N14377

ARTICULATION

ROD tie, steering, adjuster, right-hand

1шт.

7

D142924

CLAMP

ball joint to tie rod, includes hardware

2шт.

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

CYLINDER steering, order D149739 kit to service seals, see below, Includes: Ref. 8, 9 and 10

1шт.

8

D149737

GLAND

cylinder

1шт.

9

D149736

ROD

piston

1шт.

10

D149738

STEERING CYLINDER

TUBE cylinder

1шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

(Replaces D142929 bolt) Hex, M12 x 50, 8.8

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Steering Cylinder, Replaces K965425 washer M12

4шт.

13

NSS

NOT SOLD SEPARAT

WIPER rod

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

14

NSS

NOT SOLD SEPARAT

RING backup

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL rod

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

17

NSS

NOT SOLD SEPARAT

RING wear

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING expander

1шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

20

126144A1

BALL JOINT

JOINT ball, left-hand, used with Ref. 21, 126141A1 nut

1шт.

21

126141A1

NUT

NUT hex, self-locking, used with Ref. 20, 126144A1 ball joint

1шт.

22

126145A1

BALL JOINT

JOINT ball, right-hand, used with Ref. 23, 126143A1 nut

1шт.

22

126145A1GV

TIE-ROD

JOINT ball, right-hand, used with Ref. 23, 126143A1 nut

1шт.

23

126143A1

NUT

NUT hex, self-locking, used with Ref. 22, 126145A1 ball joint

1шт.

24

107070A1

LOCK NUT

NUT self-locking, 20 x 1.5 mm, ball joint

2шт.

M20704

ADHESIVE

SEALANT, 3 oz, 89 ml, of sealant in a tube, cylinder flange to cylinder, not shown, order B17575

1шт.

D149739

SEAL PACKAGE

KIT seal, steering cylinder, for rod, gland, and piston, Includes: Ref. 13 - 19

1шт.
