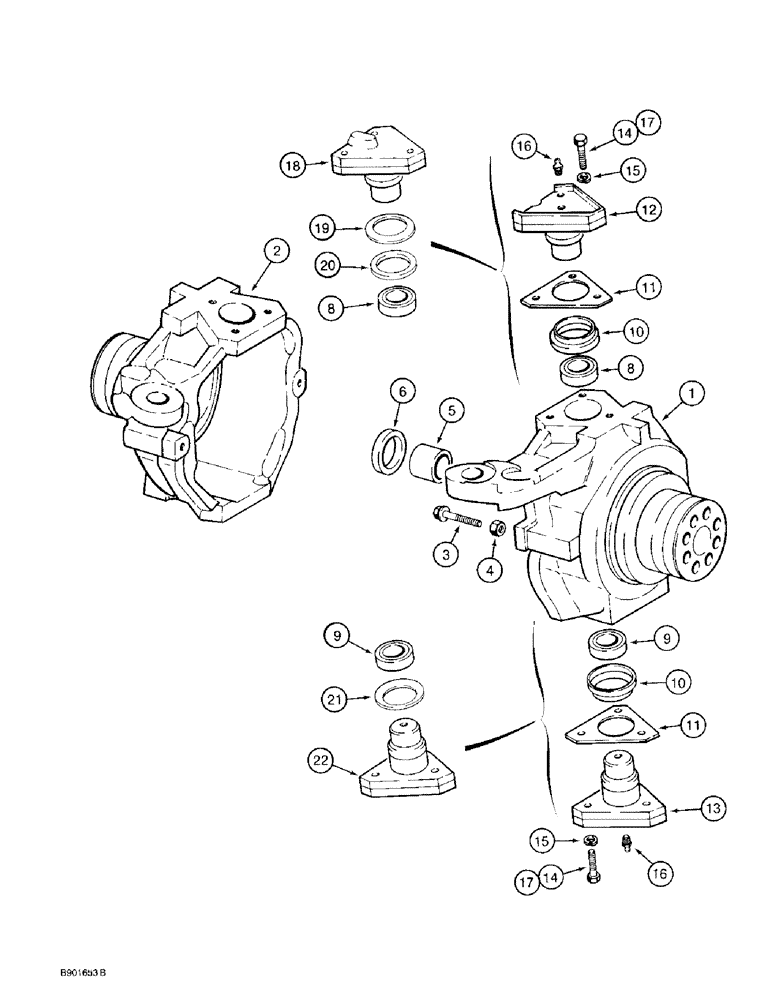

Запчасти Case 580SK (6-44) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle

1шт.

D149673

AXLE

ASSEMBLY front drive, Carraro No. 127085, parts list Figures 6-42 - 6-58, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, purchase separately, if used

1шт.

127767A1

AXLE

ASSEMBLY front drive, Carraro No. CAV91-767, parts list Figures 6-42 - 6-60, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on Figure 6-38, replaces 109937A1 axle, if used, Includes: Ref. 1 through 22

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

1

D150204

HOUSING

swivel, right-hand, replaces N14375 housing

1шт.

2

D150203

HOUSING

swivel, left-hand, replaces N14374 housing

1шт.

3

F3333050

SCREW

BOLT, 14 mm, steering stop, special, replaces D142907

4шт.

4

K395148

NUT

hex, 14 mm, special, replaces D142908 nut

4шт.

5

1967535C1

BUSHING

swivel housing, replaces K395033 bushing

2шт.

6

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil, swivel housing

2шт.

8

N14372

BUSHING

BEARING swivel cap, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

9

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING swivel cap, lower, two-piece bearing

2шт.

10

K395039

SEAL

bearing

4шт.

Used on axles prior to Carraro serial number CAR/4253.

1шт.

11

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel cap 0.10mm Thk

1шт.

Used on axles prior to Carraro serial number CAR/4253.

1шт.

11

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel cap 0.19mm Thk

1шт.

Used on axles prior to Carraro serial number CAR/4253.

1шт.

11

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel cap 0.35mm Thk

1шт.

Used on axles prior to Carraro serial number CAR/4253.

1шт.

12

N14376

PIN

PIN king, swivel housing cap, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

Used on axles prior to Carraro serial number CAR/4253.

1шт.

13

N13504

PIVOT

PIN king, swivel housing cap, lower

2шт.

Used on axles prior to Carraro serial number CAR/4253.

1шт.

14

K965247

BOLT,M14 x 35mm

BOLT hex head, 14 - 2 x 35 mm, special, used with Ref. 15 lock washer, if used

12шт.

15

K965248

WASHER

lock, 14 mm, special, not required with Ref. 17 bolt, if used

12шт.

16

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel cap, Replaces K965246 fitting M6 x 1, 16mm lg

4шт.

17

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT hex, self-locking, 14 - 2 x 35 mm, special, if used

12шт.

18

122260A1

PIVOT

PIN king, swivel housing cap, upper

2шт.

Used on axles Carraro serial number CAR/4253 and after.

1шт.

19

122262A1

BELLEVILLE WASHER

Belleville, upper

2шт.

Used on axles Carraro serial number CAR/4253 and after.

1шт.

20

144611A1

SHIM

SPACER bearing to upper king pin

2шт.

Used on axles Carraro serial number CAR/4253 and after.

1шт.

21

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

Belleville, lower

2шт.

Used on axles Carraro serial number CAR/4253 and after.

1шт.

22

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

PIN king, swivel housing cap, lower

2шт.

Used on axles Carraro serial number CAR/4253 and after.

1шт.

M20704

ADHESIVE

SEALANT, 3 oz, 89 ml, of sealant in a tube, wear ring to swivel housing, not shown, order B17575

1шт.
