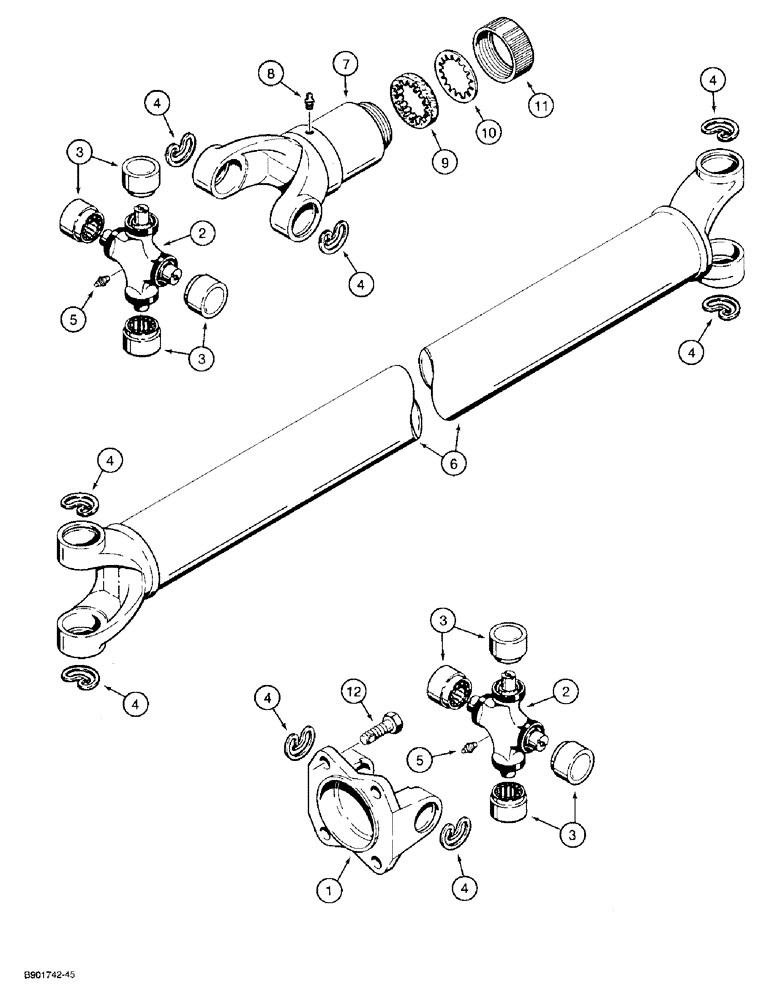

Запчасти Case 580SK (6-40) - DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSAXLE (06) - POWER TRAIN

1349244C1

SHAFT

ASSEMBLY drive, Includes: Ref. 1 through 11

1шт.

Refer to service bulletin NLBSB1690 for optional drive shaft P/N 1975595c1. When using P/N 1975595c1 the dust cap kit is P/N D150025.

1шт.

1

S80726

YOKE

flange

1шт.

D144306

PACKAGE, REPAIR

KIT universal joint, Includes: Ref. 2 through 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

R13992

RING, SNAP

RING retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, front drive axle

1шт.

7

D149861

YOKE

tube, splined, to front drive axle

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

1шт.

D149860

SERVICE KIT

KIT, SERVICE - Dust cap, Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP dust seal retaining

1шт.

12

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

hex, 10 mm - 1.5 x 30 mm, special

4шт.
