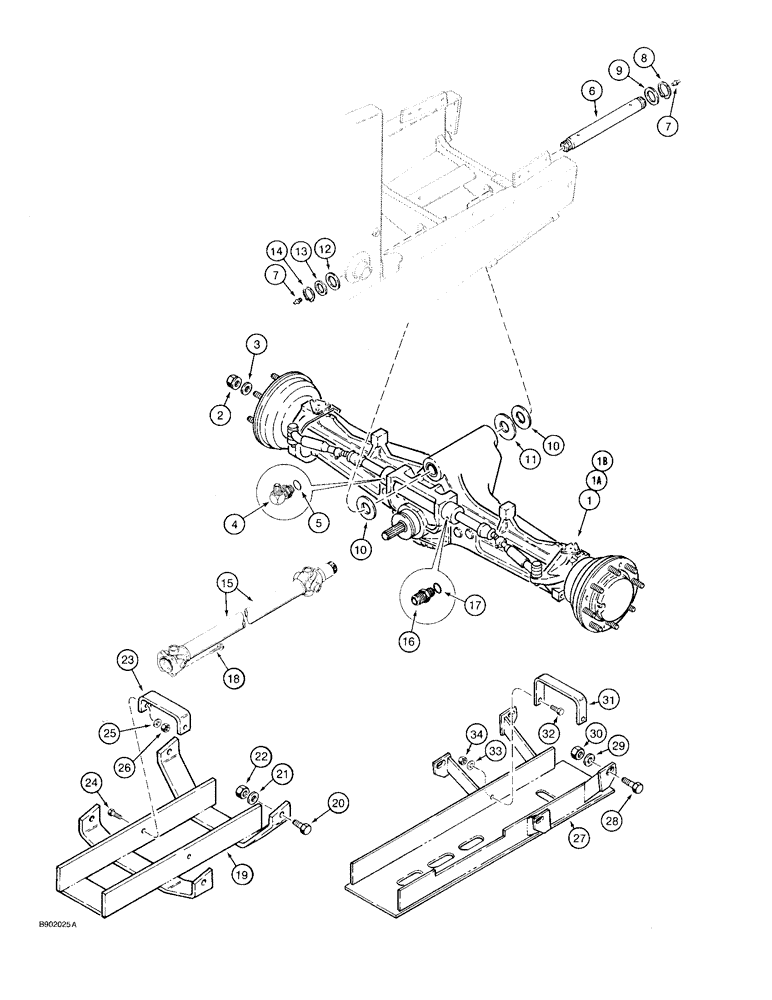

Запчасти Case 580SK (6-38) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

D146847

AXLE

ASSEMBLY front drive, Carraro No. 126140, parts list Figures 6-42 - 6-58, no longer available, order D149673 axle

1шт.

1a

D149673

AXLE

ASSEMBLY front drive, Carraro No. 127085, parts list Figures 6-42 - 6-58, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16, purchase separately, if used

1шт.

1b

127767A1

AXLE

ASSEMBLY front drive, Carraro No. CAV91-767, parts list Figures 6-42 - 6-60, includes hydraulic fittings at steering cylinder, Ref. 4 and 16, replaces 109937A1 axle, if used

1шт.

2

K395089

WHEEL NUT

hex

16шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

flat, 25/32 x 1-3/8 x 1/8 inch, hardened

16шт.

4

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring, Includes: Ref. 5

1шт.

6

D127445

PIVOT PIN,50mm OD x 444mm L

SHAFT axle pivot

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

8

800-44050

SNAP RING,M50, Ext

RING snap, shaft retaining, front

1шт.

9

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16 x 3 x 1/8 inch

1шт.

10

D143408

WASHER,51.56mm ID x 101.6mm OD x 1.98mm Thk

flat, 2-1/32 ID x 4 OD x 1/16 inch thick, special

1шт.

11

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

thrust, 2-1/16 x 4-1/2 x 3/16 inch

1шт.

12

D143431

WASHER

special

1шт.

13

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

14

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pivot shaft, rear (Replaces D25280) #175, Ext

1шт.

15

1349244C1

SHAFT

ASSEMBLY drive, front drive axle, parts list Figure 6-40

1шт.

16

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 17

1шт.

18

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

hex, 10 mm - 1.5 x 30 mm, special, flange mounting

4шт.

19

D149468

GUARD

drive shaft, 10 mm, 3/8 inch, thick, used on four wheel drive models without PTO and with Ref. 23, D149465, strap, no longer available, order Ref. 19A, 104658A1, guard

1шт.

19a

104658A1

GUARD

drive shaft, used on four wheel drive models without PTO, not shown, is identical to Ref. 19 except there are no holes in side bars

1шт.

20

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

21

495-11106

WASHER,1", SAE

flat, 1-1/16 x 2 x 1/8 inch

4шт.

22

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

23

D149465

BAR

STRAP shaft guard, used with Ref. 19, D149468 guard

1шт.

24

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex, 3/4 NC x 2 inch, If used

2шт.

25

495-11081

WASHER,3/4", SAE

If used 3/4", SAE

2шт.

26

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC, if used

2шт.

27

D151103

GUARD

drive shaft, used on two wheel drive and four wheel drive models with PTO, replaces D149594

1шт.

28

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

29

495-11106

WASHER,1", SAE

flat, 1-1/16 x 2 x 1/8 inch

4шт.

30

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

31

D149593

STRAP

shaft guard, used with Ref. 27, D151103 guard

1шт.

32

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex, 3/4 NC x 2 inch

2шт.

33

495-11081

WASHER,3/4", SAE

2шт.

34

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
