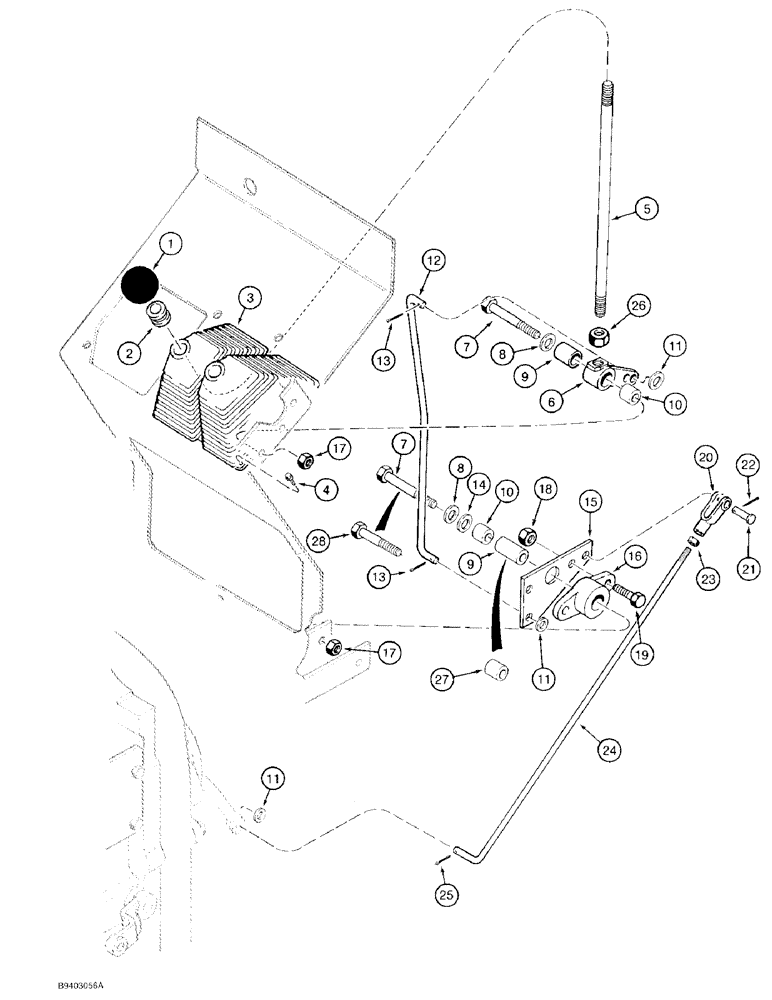

Запчасти Case 580SK (6-37A) - FRONT DRIVE AXLE CONTROL, WITH SHIFT LEVER THREADED TO BELLCRANK (06) - POWER TRAIN

1

L54563

KNOB

shift control lever

1шт.

2

D121047

GROMMET

BUSHING boot

1шт.

3

D137465

BOOT

dual lever, shift control and parking brake levers, see Figure 7-12 for parking brake lever

1шт.

4

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

5

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

LEVER straight, shift control

1шт.

6

D150397

CRANK LEVER

BELLCRANK shift control lever

1шт.

7

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch, used with Ref. 9, D149292 bushing

1-2шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

9

D149292

SPACER

BUSHING, 2 inch long, pivot, bellcrank and pedal shaft bearing, replaced by Ref. 27, 120900A1, 1-1/8 inch bushing at pedal shaft bearing

1-2шт.

10

105815A1

SPACER

43/64 inch wide, pivot, used with Ref. 9, D149292 bushing

1-2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

12

105816A1

ROD

shift control, pivot, Serial Range: plate-bellcrank

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

14

495-11081

WASHER,3/4", SAE

Used with Ref. 9, D149292 bushing 3/4", SAE

1-2шт.

15

D150330

SUPPORT

PLATE pivot mounting, pedal shaft bearing and control rod

1шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

pedal shaft

1шт.

17

131-208

SPECIAL NUT,1/2"-13

NUT heavy hex, self-locking, 1/2 inch NC

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

20

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS adjustable, 3/8 inch NF

1шт.

21

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

23

425-156

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

1шт.

24

106589A1

ROD

shift control, pivot, Serial Range: plate-transaxle

1шт.

25

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

26

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF

1шт.

27

120900A1

SLEEVE

BUSHING, 1-1/8 inch long, pivot, replaces Ref. 9, D149292, 2 inch bushing at pedal shaft bearing

1шт.

28

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used with Ref. 27, 120900A1, bushing Hex, 1/2"-13 x 2", G5

1шт.
