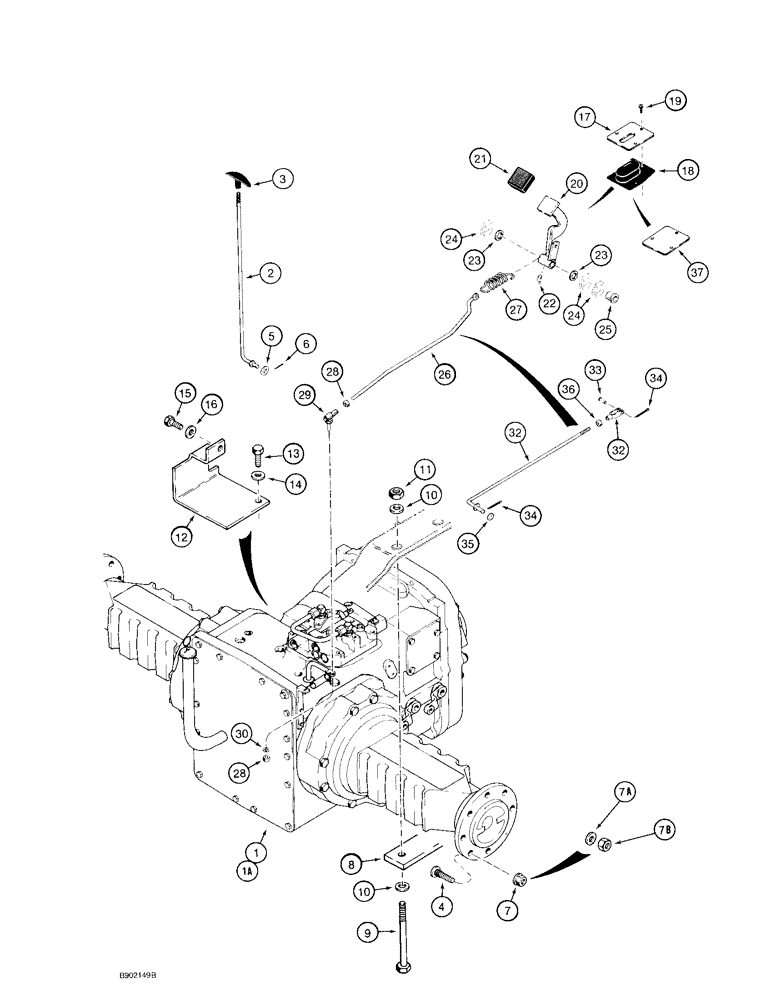

Запчасти Case 580SK (6-32) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A190502

TRANSMISSION

TRANSAXLE ASSEMBLY two wheel drive, used on models without PTO, parts list Figures 6-18 - 6-26 and 6-62 - 7-04, order component parts

1шт.

1

1345899C1

TRANSMISSION

TRANSAXLE ASSEMBLY two wheel drive, used on models with PTO, parts list Figures 6-18 - 6-26 and 6-62 - 7-04 not shown, order component parts

1шт.

1a

1345875C1

TRANSMISSION

TRANSAXLE ASSEMBLY four wheel drive, used on models without PTO, parts list Figures 6-18 - 6-26 and 6-62 - 7-04, not shown, order component parts

1шт.

1a

1345898C1

TRANSAXLE ASSEMBLY- four wheel drive, used on models with PTO, parts list Figures 6-18 - 6-26 and 6-62 - 7-04, not shown, order component parts

1шт.

2

D146237

ROD

PTO control, if used

1шт.

3

D148971

HANDLE

tee, PTO rod, if used

1шт.

4

3220372R2

STUD,M20 x 1.5 x 58mm, Cl 30

BOLT hex, special

16шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

6

732-1616

COTTER PIN,M1.6 x 16

PIN cotter, 1.6 x 16 mm

1шт.

7

98783C1

WHEEL NUT,Wheel, Flg, M20 x 1.5

Special, If used Wheel, Flg, M20 x 1.5

16шт.

7a

138076A1

WASHER

flat, 51/64 x 1-3/8 x 1/8 inch, hardened, special, if used

16шт.

7b

829-11420

NUT,M20 x 1.5, Cl 10

hex, 20 mm - 1.5, class 10, if used

16шт.

8

D127596

PLATE

spacer

2шт.

9

326-16144

BOLT,Hex, 1" - 8 x 9", Gr 8

4шт.

10

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

8шт.

11

329-1016

NUT,1"-8, G8

4шт.

12

D142862

PROTECTOR

GUARD suction tube, mounts to tapped holes in transaxle

1шт.

13

D142942

BOLT,Hex, M20 x 2 x 30mm, Cl 8.8

BOLT hex, 20 - 2 x 30 mm

1шт.

14

895-11020

WASHER,M20 x 37 x 3

flat, 22 x 37 x 3 mm

1шт.

15

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

1шт.

16

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

17

D146214

LARGE PLATE

PLATE differential lock boot

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

18

D129670

BOOT

differential lock

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

19

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

20

D142718

PEDAL

differential lock

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

21

A75351

SKID/SHOE

COVER differential lock pedal, if used

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

2шт.

Part of differential lock kit P/N 115146A1.

1шт.

24

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER pedal to pivot shaft bracket, two in kit

2-3шт.

Part of differential lock kit P/N 115146A1.

1шт.

25

D124452

BUSHING

pedal

1шт.

26

D141951

ROD

differential lock, used with items 28-30, if used

1шт.

27

A190341

SPRING

return, differential lock pedal

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF, If used

2шт.

29

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, 3/8 inch, if used, replaces D38296

1шт.

30

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

31

D150368

ROD

differential lock, used with Ref. 32-34, if used

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

32

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS adjustable, 3/8 inch NF, if used

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

33

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened, If used 3/8" x 1 1/16"

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

34

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , If used 3/32" x 3/4"

2шт.

Part of differential lock kit P/N 115146A1.

1шт.

35

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF, If used

1шт.

Part of differential lock kit P/N 115146A1.

1шт.

37

109512A1

PLATE

cover, used on models without differential lock

1шт.

115146A1

KIT

differential lock, Includes: Ref. 17, 18, 20 - 24, 27, 31 - 36 and instructions

1шт.
