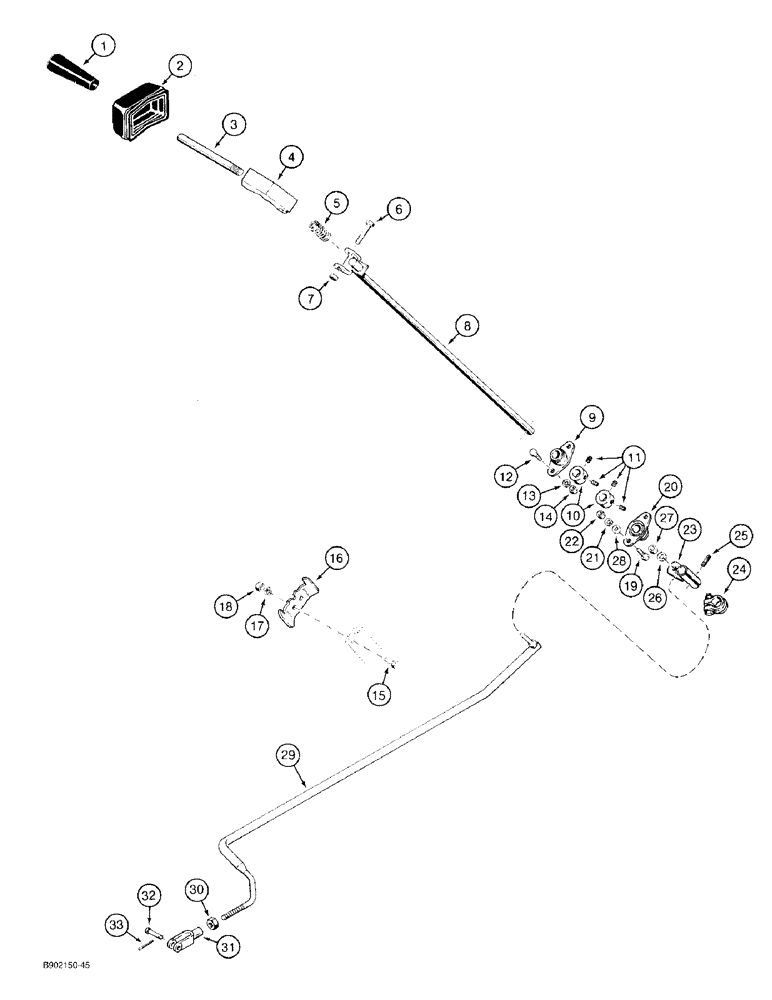

Запчасти Case 580SK (6-28) - SHUTTLE CONTROL AND LINKAGE (06) - POWER TRAIN

1

D86694

KNOB

shuttle control lever

1шт.

2

D141958

BELLOWS

BOOT shuttle control rod

1шт.

3

D131414

ROD

shuttle control lever

1шт.

4

D134343

LEVER

shuttle control, upper

1шт.

5

D124906

SPRING

detent

1шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

1шт.

8

D136701

ROD

control lever

1шт.

9

L15401

BEARING,15.89mm ID

steering valve bracket

1шт.

10

D142939

COLLAR

ASSEMBLY locking, with 5/16 inch set screw, Includes: Ref. 11

2шт.

11

D143603

SET SCREW,5/16" - 18 x 8mm

set, torx socket headless, 5/16 NC x 5/16 inch, cup point, special

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

D140692

LARGE PLATE

PLATE detent

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

20

L15401

BEARING,15.89mm ID

steering valve bracket

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

D136702

LEVER

shuttle, lower

1шт.

24

D71880

CLAMP,22.23mm

adjustable, includes hardware

1шт.

25

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

144272A1

STEM

ROD ASSEMBLY shuttle control, replaces D147492 rod, replaced D150736, Includes: Ref. 29, 30 and 31

1шт.

this part has a replaceable ball joint that part number is d149295.

1шт.

29

NSS

NOT SOLD SEPARAT

ROD shuttle control

1шт.

30

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

31

D150720

CLEVIS

special, replaces D148029 clevis

1шт.

32

427-4121

CLEVIS PIN,6.35mm OD x 30.96mm L

PIN clevis, 1/4 x 1-7/32 inch, hardened, replaces 141-62

1шт.

33

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.
