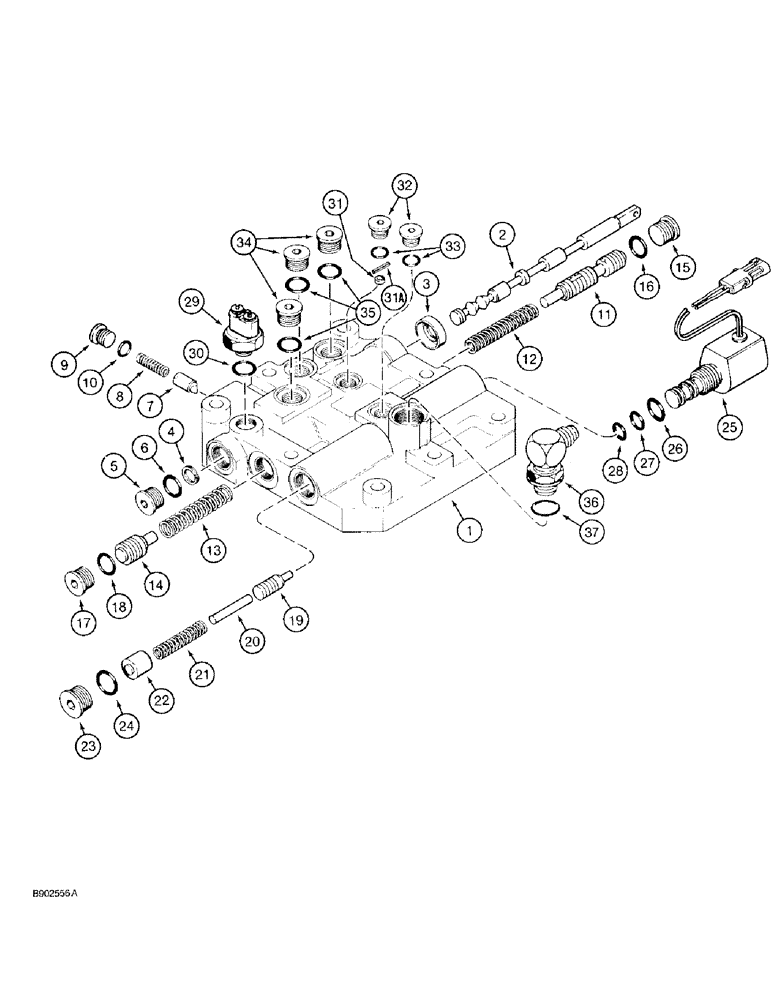

Запчасти Case 580SK (6-26) - TRANSAXLE ASSEMBLY, POWER SHUTTLE, VALVE ASSEMBLY WITHOUT PTO (06) - POWER TRAIN

1343543C2

VALVE

ASSEMBLY power shuttle, if used, see valve on Figure 6-24, Includes: Ref. 1 through 35

1шт.

If valve with external tubing is replaced with 1343543C2, do not use the external tube. Install a cap plug on tee fitting where tube was installed.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shuttle valve

1шт.

2

1343540C1

SPOOL

selector

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

oil, shuttle valve

1шт.

4

A175093

SNAP RING,#56, Ext, Spiral

RING retaining, spool

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6 Hex Soc, 3/4"-16 ORB

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

1343539C1

SPOOL

PLUNGER detent

1шт.

8

1343535C1

SPRING

detent

1шт.

9

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 10 Hex Soc, 9/16"-18 ORB

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

1986755C1

SPOOL

modulator pressure

1шт.

12

1343533C1

VALVE SPRING

SPRING modulator, inner

1шт.

13

1343532C1

SPRING

modulator, outer

1шт.

14

1343541C1

PISTON

modulator

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 16 Hex Soc, 3/4"-16 ORB

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

86625138

PLUG,7/18" - 14

Includes Ref. 18 Hex Soc, 7/8"-14 ORB

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

1343537C1

SPOOL

pressure regulator

1шт.

20

20133R1

DOWEL,5/16" x 1 3/4"

PIN pressure regulator

1шт.

21

1343534C1

SPRING

pressure regulator

1шт.

22

A188228

PISTON

regulator

1шт.

23

86625138

PLUG,7/18" - 14

Includes Ref. 24 Hex Soc, 7/8"-14 ORB

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

1971438C3

SOLENOID

VALVE ASSEMBLY solenoid, Includes: Ref. 26, 27 and 28

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

28

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

29

1983241C1

SWITCH

neutral start, Includes: Ref. 30

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

1343538C1

PLUG

cup, oil restrictor

1шт.

31a

38-12008

LOCK PIN,5/16" x 1/2", Slotted

Pin, 5/16" x 1/2", Slotted

1шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 33 Hex Soc, 3/8"-24 ORB

2шт.

33

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

34

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 35 Hex Soc, 9/16"-18 ORB

3шт.

in place of the plugs Ref. 34 for checking forward and reverse clutch pressure; pressure switchs d139904 were installed after vin # jjg0167019 for use in the warning system.

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
