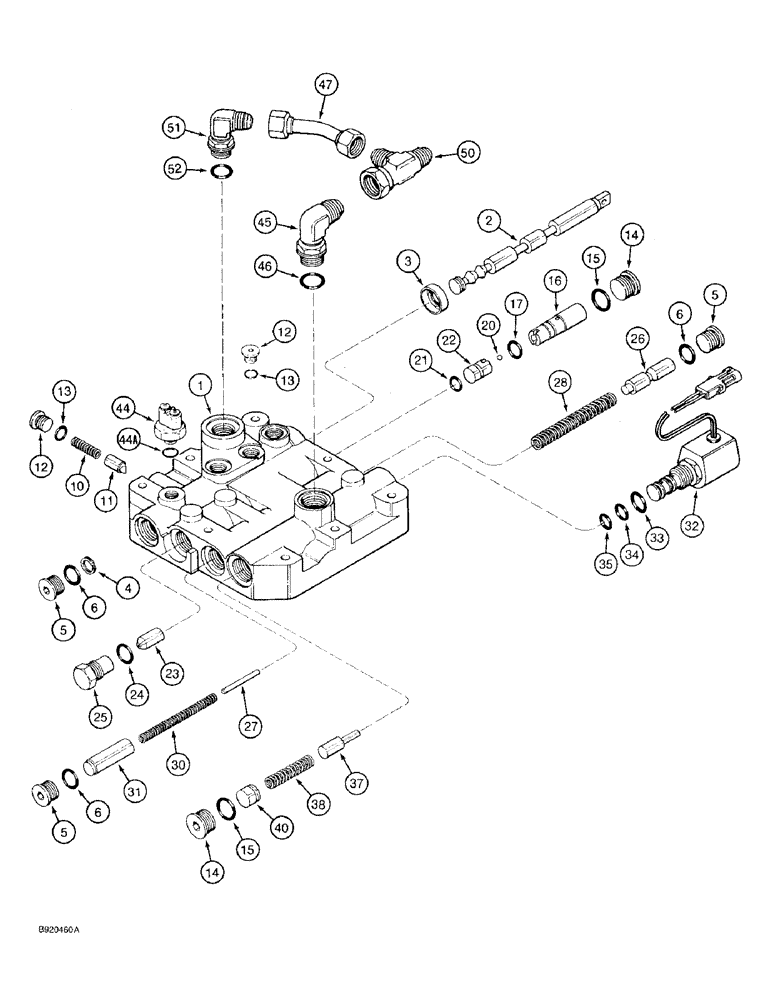

Запчасти Case 580SK (6-24) - TRANSAXLE ASSEMBLY, POWER SHUTTLE, VALVE ASSEMBLY WITHOUT PTO (06) - POWER TRAIN

1978113C2

VALVE BLOCK

VALVE ASSEMBLY power shuttle, if used, see valve assembly on Fig. 6-26, no longer available, order 1343543C2 on Fig. 6-26, Includes: Ref. 1 through 52

1шт.

If valve with external tubing is replaced with 1343543C2, do not use the external tube. Install a cap plug on tee fitting where tube was installed.

1шт.

If the 1978113C2 valve is replaced by the 1343543C2 valve as a direct sub, the A1833919 restrictor must be removed from the transmission.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shuttle valve, Order 1978113C2

1шт.

2

A178266

SPOOL

selector

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

oil

1шт.

4

A175093

SNAP RING,#56, Ext, Spiral

RING retaining

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 6 Hex Soc, 3/4"-16 ORB

3шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

A183672

SPRING

detent

1шт.

11

A175081

PLUNGER

detent

1шт.

12

9625178

PLUG,9/16" - 18 ORB

Assy, Incl. Ref. 13 Hex Soc, 9/16"-18 ORB

4шт.

in place of the plugs Ref. 12 for checking forward and reverse clutch pressure; pressure switchs d139904 were installed after vin # jjg0167019 for use in the warning system.

1шт.

14

86625138

PLUG,7/18" - 14

Assy, Includes Ref. 15 Hex Soc, 7/8"-14 ORB

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

A178349

SEAT

shuttle

1шт.

17

A179308

O-RING,0.614" ID x 0.754" OD x 0.07"

5/8 ID x 3/4 OD x 1/16 inch

1шт.

20

211-206

BALL,1/4" Dia

steel, 1/4 inch OD

1шт.

21

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces D26265)

1шт.

22

A178384

SEAT

shuttle

1шт.

23

A186846

SPOOL

auto modulator unloading

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

A178264

SEAT

unloading spool

1шт.

26

A178265

SPOOL

modulator pressure regulator, replaces 1980336C1

1шт.

27

A188112

PIN

spacer

1шт.

28

1978109C1

SPRING

modulator, primary

1шт.

30

1978108C1

VALVE SPRING

SPRING modulator, secondary

1шт.

31

A186439

PISTON

ASSEMBLY accumulator

1шт.

32

1971438C3

SOLENOID

VALVE ASSEMBLY solenoid, Includes: Ref. 33, 34 and 35

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

1шт.

35

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

37

1978388C1

SPOOL

pressure regulator

1шт.

REF.#37: 1978388C1-SPOOL, PRESSURE REGULATOR. ILLUSTRATION IS OF A 1343537C1.

1шт.

38

A175782

SPRING

pressure regulator

1шт.

40

A188228

PISTON

regulator

1шт.

44

1983241C1

SWITCH

neutral start, Includes: Ref. 44A

1шт.

45

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 5/8 tube x 7/8-14 inch thread, Incl. Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32 inch

1шт.

47

A186964

TUBE

lube crossover

1шт.

50

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

adj, 7/8-14 inch thread x 5/8 tube x 3/4-16 inch thread

1шт.

51

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 1/2 tube x 3/4-16 inch thread, Includes: Ref. 52

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

44a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
