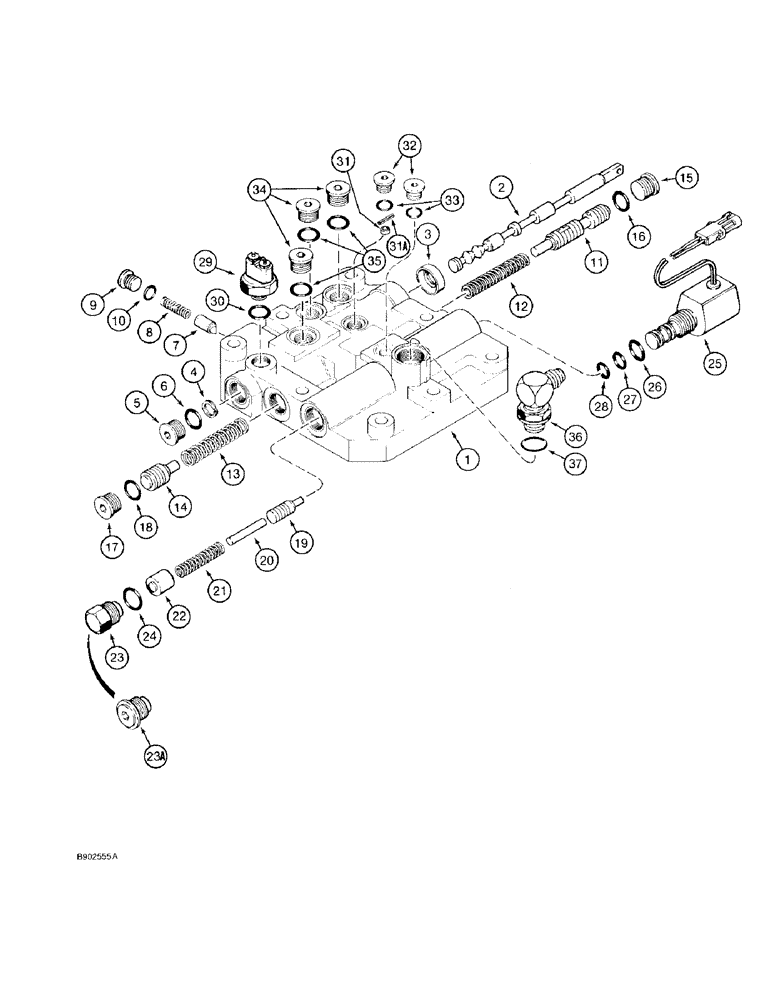

Запчасти Case 580SK (6-22) - TRANSAXLE ASSEMBLY, POWER SHUTTLE, VALVE ASSEMBLY WITH PTO (06) - POWER TRAIN

1343544C3

VALVE

ASSEMBLY power shuttle, Includes: Ref. 1 through 35

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shuttle valve

1шт.

2

1343540C1

SPOOL

selector

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

oil, shuttle valve

1шт.

4

A175093

SNAP RING,#56, Ext, Spiral

RING retaining, spool

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6 Hex Soc, 3/4"-16 ORB

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

1343539C1

SPOOL

PLUNGER detent

1шт.

8

1343535C1

SPRING

detent

1шт.

9

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 10 Hex Soc, 9/16"-18 ORB

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

1986755C1

SPOOL

modulator

1шт.

12

1343533C1

VALVE SPRING

SPRING modulator, inner

1шт.

13

1343532C1

SPRING

modulator, outer

1шт.

14

1343541C1

PISTON

modulator

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 16 Hex Soc, 3/4"-16 ORB

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

86625138

PLUG,7/18" - 14

Includes Ref. 18 Hex Soc, 7/8"-14 ORB

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

1343537C1

SPOOL

pressure regulator

1шт.

20

20133R1

DOWEL,5/16" x 1 3/4"

PIN pressure regulator

1шт.

21

1343534C1

SPRING

pressure regulator

1шт.

22

A188228

PISTON

regulator

1шт.

23

1980155C1

PLUG

hex, 7/8-14 inch thread, no longer available, order Ref. 23A, 1542607C1 plug

1шт.

23a

1542607C1

PLUG

hex socket, 7/8-14 inch thread

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

1971438C3

SOLENOID

VALVE ASSEMBLY solenoid, Includes: 26, 27 and 28

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

28

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

29

1983241C1

SWITCH

neutral start, Includes: Ref. 30

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

1343538C1

PLUG

cup, oil restrictor

1шт.

31a

38-12008

LOCK PIN,5/16" x 1/2", Slotted

Pin, 5/16" x 1/2", Slotted

1шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 33 Hex Soc, 3/8"-24 ORB

2шт.

33

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

34

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 35 Hex Soc, 9/16"-18 ORB

3шт.

pressure switch #d139904 are installed in place of plugs Ref. 34 at the forward and reverse test ports serial # jjg0167019 and up.these are for the warning buzzer.

1шт.

If valve with external tubing is replaced with 1343543C2, do not use the external tube. Install a cap plug on tee fitting where tube was installed.

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
