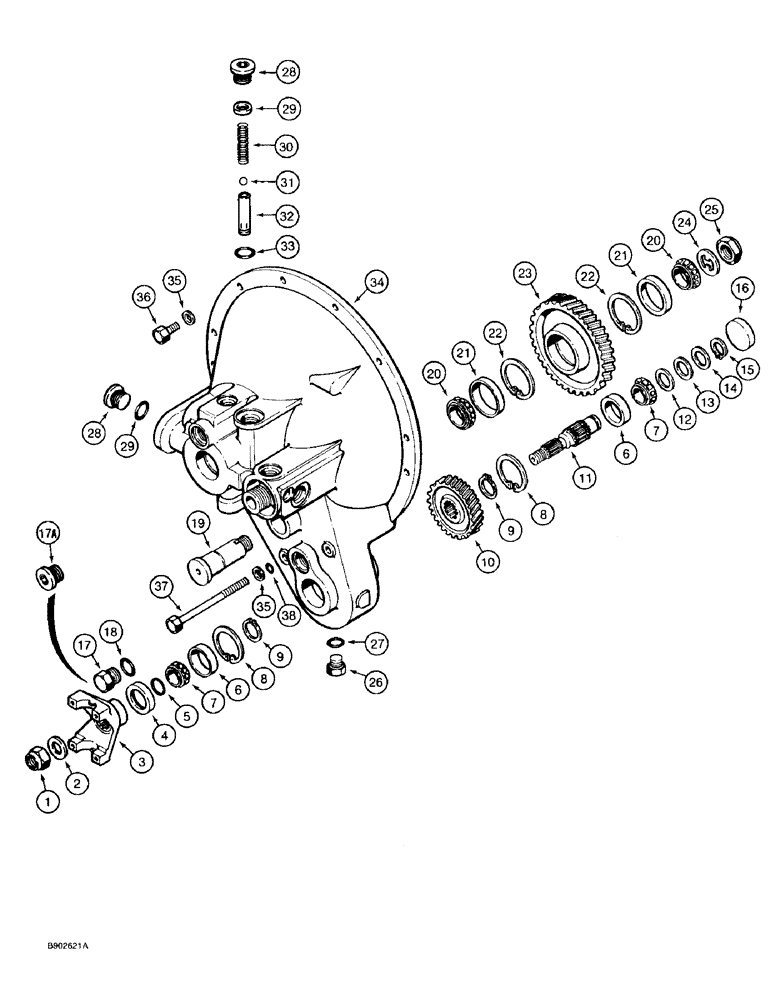

Запчасти Case 580SK (6-16) - TORQUE CONVERTER HOUSING AND GEARS, WITH PTO (06) - POWER TRAIN

A186706

CONVERTER

HOUSING ASSEMBLY torque converter, with PTO, continued, complete parts list on Figure 6-14 and this Figure, order component parts, Includes: 1 through 34

1шт.

1

3173953R1

LOCK NUT,M20 x 2.5, Cl 8

NUT lock, prevailing torque

1шт.

2

H312652

WASHER

flat, 23 x 38 x 3 mm, if used

1шт.

2

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, if used

2шт.

3

A159663

YOKE

output shaft

1шт.

4

A175651

OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk

oil

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Yoke sealing (Replaces A159665 O-ring) -212, 70 Duro, .859" ID x .139" Thk

1шт.

6

572564R1

BEARING CUP

CUP tapered roller bearing, PTO output shaft, replaces D29267

2шт.

7

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING tapered roller, PTO output shaft

2шт.

8

103-21200

SNAP RING,2", Int, #200

Ring, Snap, , PTO output shaft (Replaces D28436) 2", Int, #200

2шт.

9

1277307C1

RING

snap, output, Serial Range: gear-shaft

2шт.

10

A190022

GEAR WHEEL

GEAR PTO output

1шт.

11

A190054

GEAR WHEEL

GEAR PTO idler

1шт.

12

A190179

SHIM

PTO output shaft front bearing, 0.1 mm

1шт.

13

A190180

SHIM

PTO output shaft, front bearing, 0.15 mm

1шт.

14

A190181

SHIM

PTO output shaft front bearing, 1.0 mm

1шт.

15

A34428

SNAP RING,#98, Ext

Ring, Snap, , order 100-1698 #98, Ext

1шт.

15

100-1698

SNAP RING,#98, Ext

Ring, Snap, , PTO output shaft (Replaces A34428) #98, Ext

1шт.

16

41-1036

PLUG,Cup, 2 1/4"

core hole, 2-1/4", PTO output shaft opening

1шт.

17

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

If used, Includes Ref. 18, O-ring Hex Hd, 1 1/16"-12 ORB

1шт.

17a

9841223

PLUG,1-1/16" - 12 ORB

If used, Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

A190112

SHAFT

PTO idler

1шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING tapered roller, inner input shaft, replaces B12409

2шт.

21

651817R1

BEARING CUP

CUP tapered roller bearing, inner input shaft, replaces B12408

2шт.

22

100-21231

SNAP RING,2.312", Int, #231

Ring, Snap, , Idler gear to brgs (Replaces 216389R1) 2.312", Int, #231

2шт.

23

A190021

GEAR WHEEL

GEAR PTO idler

1шт.

24

A175799

WASHER

PTO idler shaft

1шт.

25

A175798

NUT

adjusting

1шт.

26

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 27 Hex Hd, 9/16"-18 ORB

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 29 Hex Soc, 1 1/16"-12 ORB

2шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

30

A190345

SPRING

pump relief valve

1шт.

31

211-214

BALL,1/2" Dia

1/2 inch, grade 50, chrome alloy steel

1шт.

32

A183336

VALVE

CARTRIDGE pump relief valve

1шт.

33

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk, Spring guide

1шт.

34

A190081

HOUSING

torque converter

1шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

12шт.

36

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

10шт.

37

814-10160

BOLT,Hex, M10 x 1.5 x 160mm, Cl 8.8

hex, 10 - 1.5 x 160 mm

2шт.

38

K626521

SEALING WASHER

O-RING sealing

2шт.
