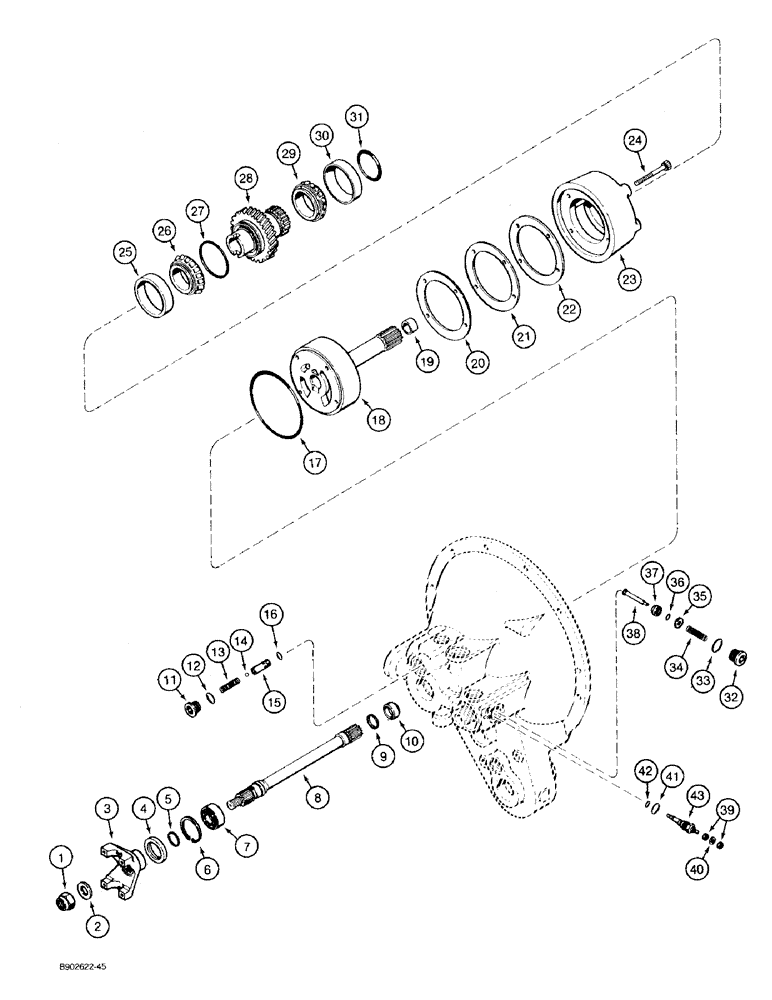

Запчасти Case 580SK (6-14) - TORQUE CONVERTER PUMP AND OUTPUT SHAFT, WITH PTO (06) - POWER TRAIN

A186706

CONVERTER

HOUSING ASSEMBLY torque converter, with PTO, complete parts list on this Figure and Figure 6-16, order component parts, Includes: Ref. 1 through 43, P/N A183347, P/N N6755 and N6941

1шт.

1

3173953R1

LOCK NUT,M20 x 2.5, Cl 8

NUT lock, special

1шт.

2

H312652

WASHER

flat, 23 x 38 x 3 mm, if used

1шт.

2

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, if used

1шт.

3

A159663

YOKE

output, converter

1шт.

4

A175651

OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk

oil, yoke

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Yoke sealing (Replaces A159665 O-ring) -212, 70 Duro, .859" ID x .139" Thk

1шт.

6

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, , ball brg, replaces A31078 ring 2.062", Int, #206

1шт.

7

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

BEARING ball

1шт.

8

A186735

SHAFT

output

1шт.

9

A158354

RING

oil seal

1шт.

10

A178745

SLEEVE

wear, housing

1шт.

11

86625138

PLUG,7/18" - 14

Includes Ref. 12 Hex Soc, 7/8"-14 ORB

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

A188918

VALVE SPRING

SPRING converter relief valve

1шт.

14

211-1012

BALL,3/8" Dia

3/8 inch, gr 50, chrome alloy steel, replaces 211-104

1шт.

15

A183025

VALVE

CARTRIDGE converter relief valve

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

17

238-5255

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

1шт.

18

A190102

PUMP

ASSEMBLY torque converter, Includes: Ref. 19

1шт.

19

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

pump

1шт.

20

A190155

SHIM,0.05mm Thk

PTO input shaft 0.05mm Thk

1шт.

21

A190151

SHIM,.254mm Thk

PTO input shaft .254mm Thk

1шт.

22

A190110

SHIM,.457mm Thk

PTO input shaft, 0.30 mm

1шт.

23

A190005

SUPPORT ASSY.

SUPPORT PTO input shaft bearing

1шт.

24

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

BOLT hex socket, 8 - 1.25 x 80 mm

4шт.

25

3216620R1

BEARING, CUP

CUP tapered roller bearing, input gear rear

1шт.

26

A190113

CONE

BEARING tapered roller, input gear rear

1шт.

27

A190101

SEAL

SEAL PTO input gear

1шт.

28

A190012

GEAR WHEEL

GEAR PTO input

1шт.

29

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING tapered roller, input gear front

1шт.

30

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP tapered roller bearing, input gear front, replaces A61446

1шт.

31

238-5136

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2 ID x 3/32 inch wide, input gear to converter hub

1шт.

A183347

VALVE

ASSEMBLY filter bypass, Includes: Ref. 32 through 38

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG bypass valve

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING bpass valve

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER bypass valve

1шт.

36

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Valve poppet

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET bypass valve

1шт.

38

NSS

NOT SOLD SEPARAT

GUIDE valve spring

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY restriction, electric, Includes: Ref. 39 through 43 and P/N N6941

1шт.

N6941

KIT

repair, restriction indicator, no longer available, order items 39 - 42, Includes: Ref. 39 through 42

1шт.

39

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.

40

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

42

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Inner

1шт.

43

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
