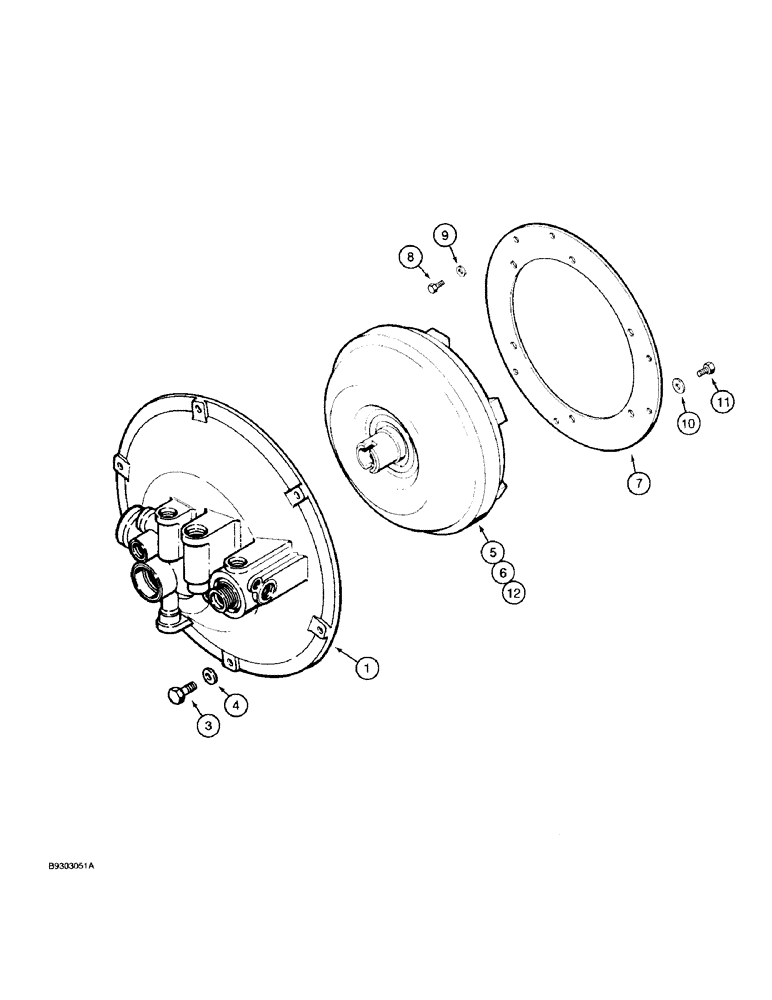

Запчасти Case 580SK (6-08) - TORQUE CONVERTER MOUNTING (06) - POWER TRAIN

1

A186700

HOUSING ASSY.

HOUSING ASSEMBLY torque converter, models without PTO, see parts list Figure 6-12

1шт.

2

A186706

CONVERTER

HOUSING ASSEMBLY torque converter, models with PTO, not shown, parts lists Figures 6-14 and 6-16

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Bolt, Hex, M10 x 30, 8.8

6шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER flat, 11 x 21 x 2 mm

6шт.

5

1995135C1

CONVERTER

CONVERTER torque, models without PTO, replaces A186701 converter, used on models without turbocharged engines; and models with turbocharged engines prior to tractor P.I.N. JJG0173468

1шт.

Ref #5 - 1995135C1 has 1 green and 1 brown mark for identification.

1шт.

1995135C1, Std, and 1995136C1, PTO, are NOT interchangeable. The PTO version has provision for direct, flywheel / crankshaft, drive out of the converter housing and into the transmission, through a second driveshaft, for the PTO. It will not fit-up with the non-PTO converter housing / charge pump

1шт.

5

1995135C1R

REMAN-TORQUE CONVERT

ER Reman - Torque Converter

1шт.

5

1995135C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number

1шт.

6

1995136C1

CONVERTER

CONVERTER torque, models with PTO, replaces A186704 converter

1шт.

Ref #6 - 1995136C1 has 2 black marks for identification.

1шт.

1995135C1, Std, and 1995136C1, PTO, are NOT interchangeable. The PTO version has provision for direct, flywheel / crankshaft, drive out of the converter housing and into the transmission, through a second driveshaft, for the PTO. It will not fit-up with the non-PTO converter housing / charge pump

1шт.

7

A178706

PLATE

PLATE adapter, torque converter, Serial Range: housing-engine

1шт.

8

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

BOLT hex, 5/16 NF x 5/8 inch, grade 8

6шт.

9

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER flat, hardened, special

6шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER flat, 11 x 21 x 2 mm

6шт.

11

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

BOLT hex, 10 - 1.5 x 16 mm, class 10.9

6шт.

12

1995137C1

CONVERTER

CONVERTER torque, models without PTO, used on models with turbocharged engine on tractor P.I.N. JJG0173468 and after

1шт.

12

1995137C1R

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

12

1995137C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number

1шт.

Ref #12 - 1995137C1 has 2 orange and 1 brown mark for identification.

1шт.
